2013 Kawasaki KLX®250S Rear Suspension Diagram

← All diagrams

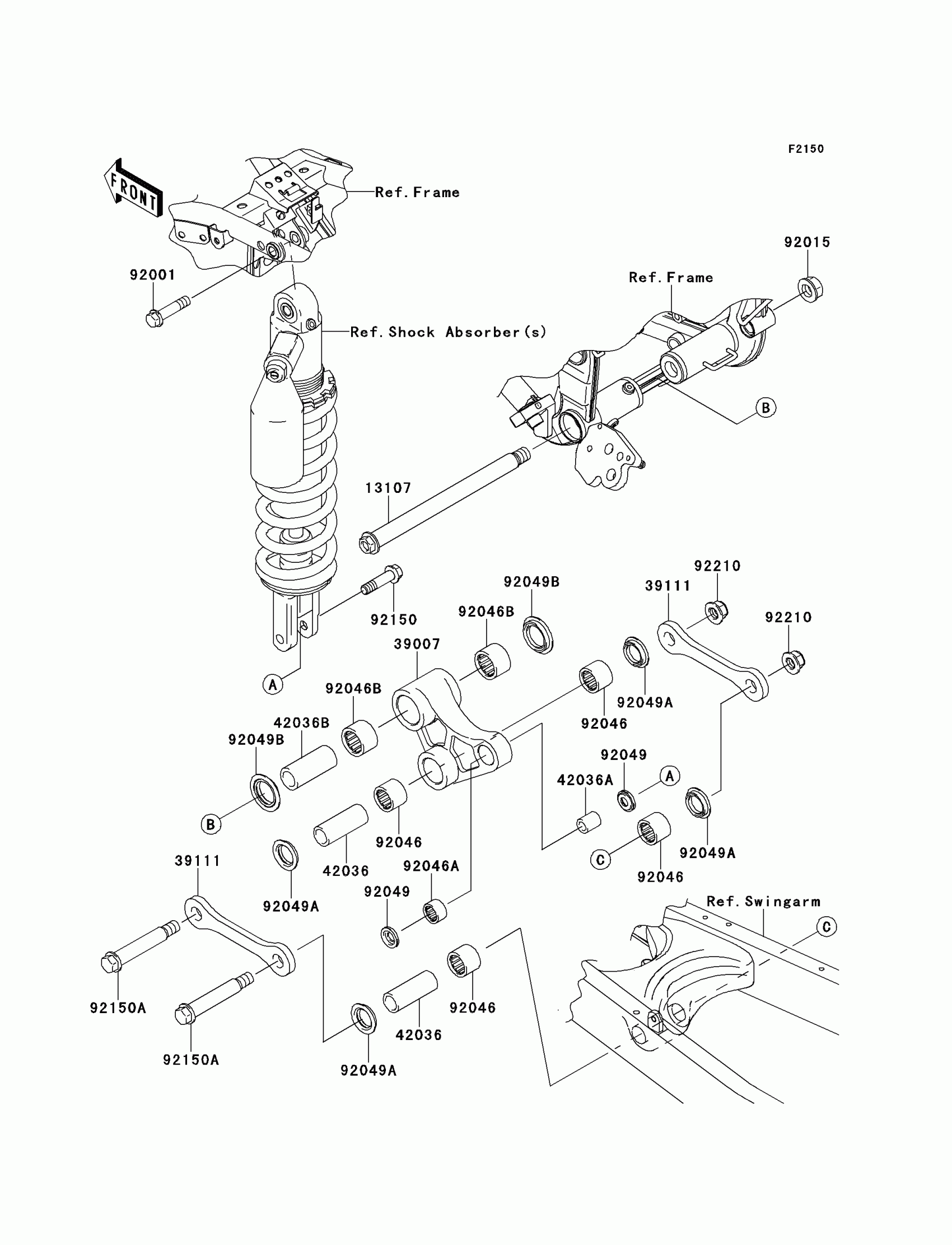

Find the part on the Rear Suspension diagram for your 2013 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki KLX®250S Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,ARM,14MM

13107-0198

1
Out of stock

39007

ARM-SUSP,UNI TRAK

39007-0100

1

$319.80

In stock

39111

ROD-TIE,SUSPENSION

39111-0053

1

$73.03

In stock

42036

SLEEVE,15X22X57

42036-1245

1
Out of stock

42036A

SLEEVE,10X16X19

42036-1248

1
Out of stock

42036B

SLEEVE,17X25X57

42036-1318

1
Out of stock

92001

BOLT,FLANGED,10X44

92001-1499

1
Out of stock

92015

NUT,14MM

92015-1407

1
Out of stock

92046

BEARING-NEEDLE,F-2220

92046-1162

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92046B

BEARING-NEEDLE,BM2520

92046-1228

1
Out of stock

92049

SEAL-OIL

92049-0069

1
Out of stock

92049A

SEAL-OIL,MHA22 28 5.7F

92049-1254

1
Out of stock

92049B

SEAL-OIL,MF025N1

92049-1426

1
Out of stock

92150

BOLT,FLANGED,10X40

92150-1711

1
Out of stock

92150A

BOLT,ROD,12X90

92150-1812

1
Out of stock

92210

NUT,LOCK,FLANGED,12MM

92210-0348

1
Out of stock
