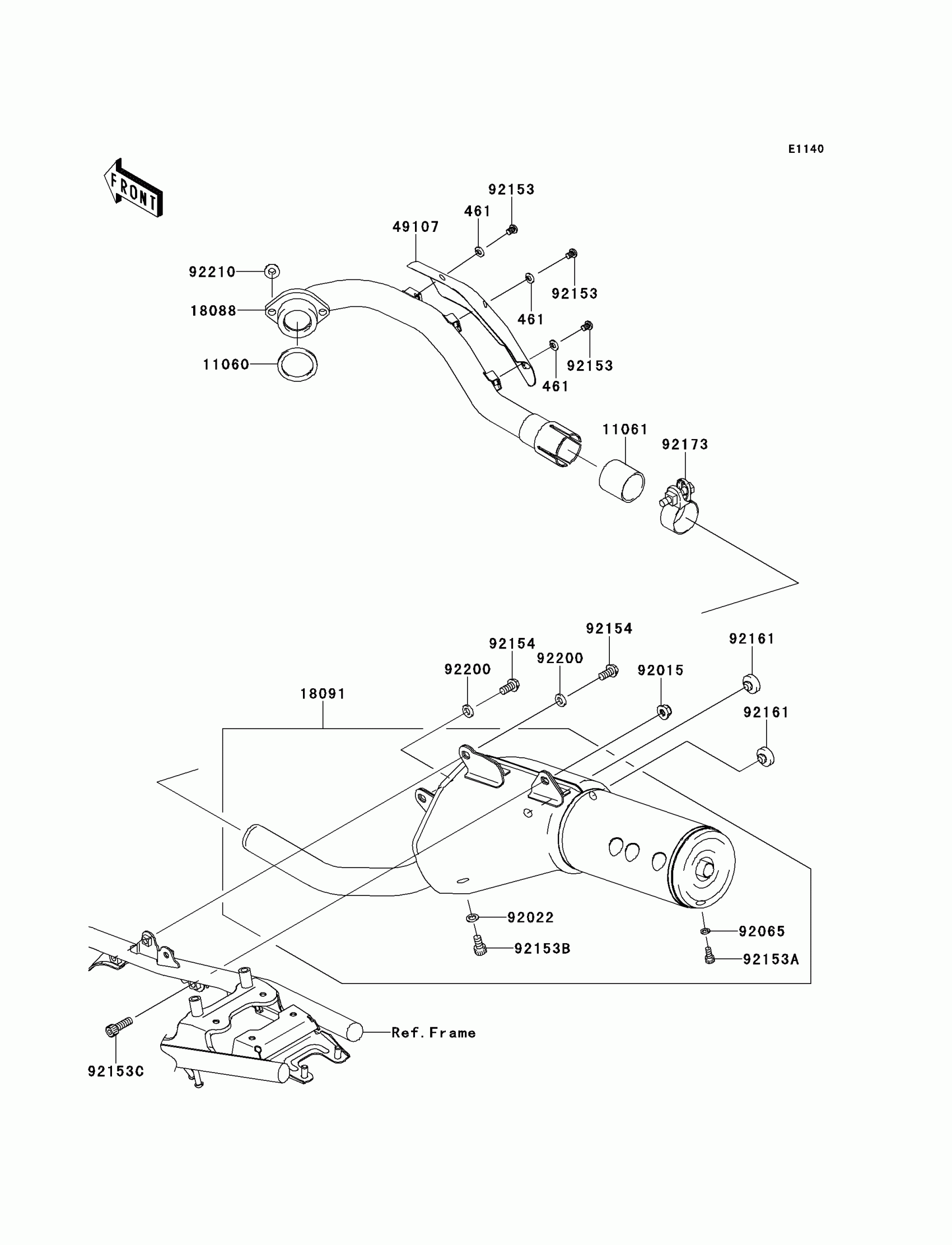

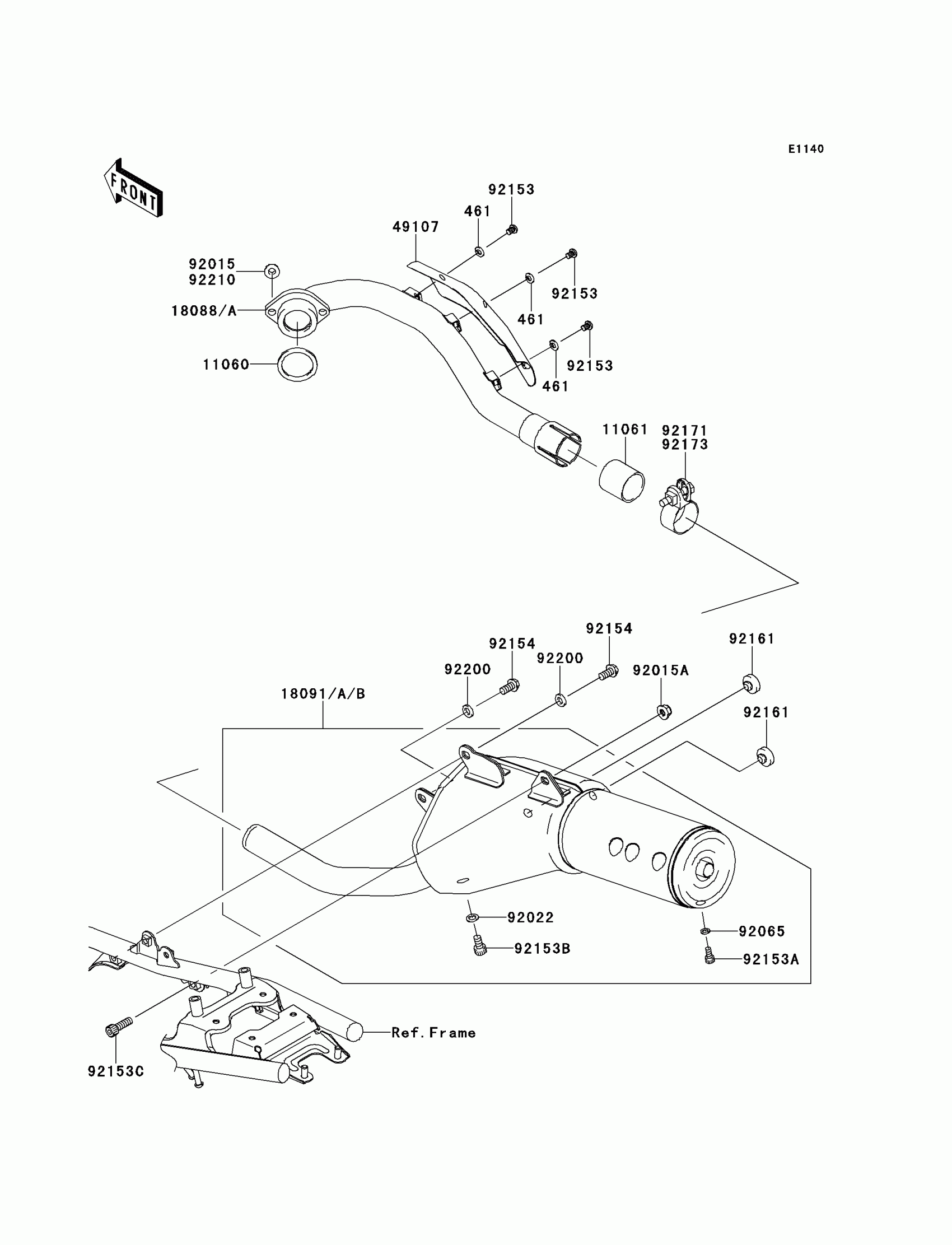

Kawasaki KLX®250S Muffler(s) Diagram

Description

Price

461

WASHER-SPRING,6MM

461S0600

$1.07

11060

GASKET,EXHAUST PIPE

11060-1203

$10.80

11061

GASKET,EXHAUST PIPE CONNECTING

11061-1055

$16.50

18088

PIPE-EXHAUST

18088-0594

$157.70

18091

BODY-COMP-MUFFLER

18091-0842

$592.87

49107

COVER-EXHAUST PIPE

49107-0062

$44.29

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,8.2X14X1.0

92022-1488

$4.92

92065

GASKET

92065-096

$4.65

92153

BOLT,6X8

92153-0578

$2.55

92153A

BOLT,SOCKET,6X12

92153-1347

$2.97

92153B

BOLT,SOCKET,8X14

92153-1348

$3.55

92153C

BOLT,SOCKET,8X25

92153-1350

$3.39

92154

BOLT,FLANGED,8X16

92154-0059

$2.55

92161

DAMPER

92161-0336

$5.65

92173

CLAMP,38MM

92173-0997

$24.01

92200

WASHER,8.1X15X2.3

92200-0449

$3.71

92210

NUT,8MM

92210-0076

$5.48
