Description

Price

112

BOLT-UPSET,6X22

112BB0622

$4.69

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220A

SCREW-PAN-CROS,5X40

220AB0540

$2.06

221

SCREW-CSK-CROS,3X16

221AB0316

$3.67

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

13280

HOLDER,CLUTCH LEVER

13280-0105

$37.17

27010

SWITCH,CLUTCH,BLACK

27010-1094

$28.59

46003

HANDLE,P.SILVER

46003-0164-458

$120.81

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0010-18R

$59.38

46019

GRIP-ASSY,THROTTLE

46019-0036

Unavailable

46075

GRIP,LH

46075-0082

$29.10

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1244

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-0163

$146.91

46091A

HOUSING-ASSY-CONTROL,RH

46091-0180

$93.37

46092

LEVER-GRIP,CLUTCH

46092-1206

Unavailable

56001

MIRROR-ASSY

56001-1285

$63.48

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92151

BOLT,LEVER SET

92151-1986

$6.22

92153

BOLT,FLANGED,8X30

92153-1519

$7.37

92210

NUT,LOCK,6MM

92210-0006

$2.46

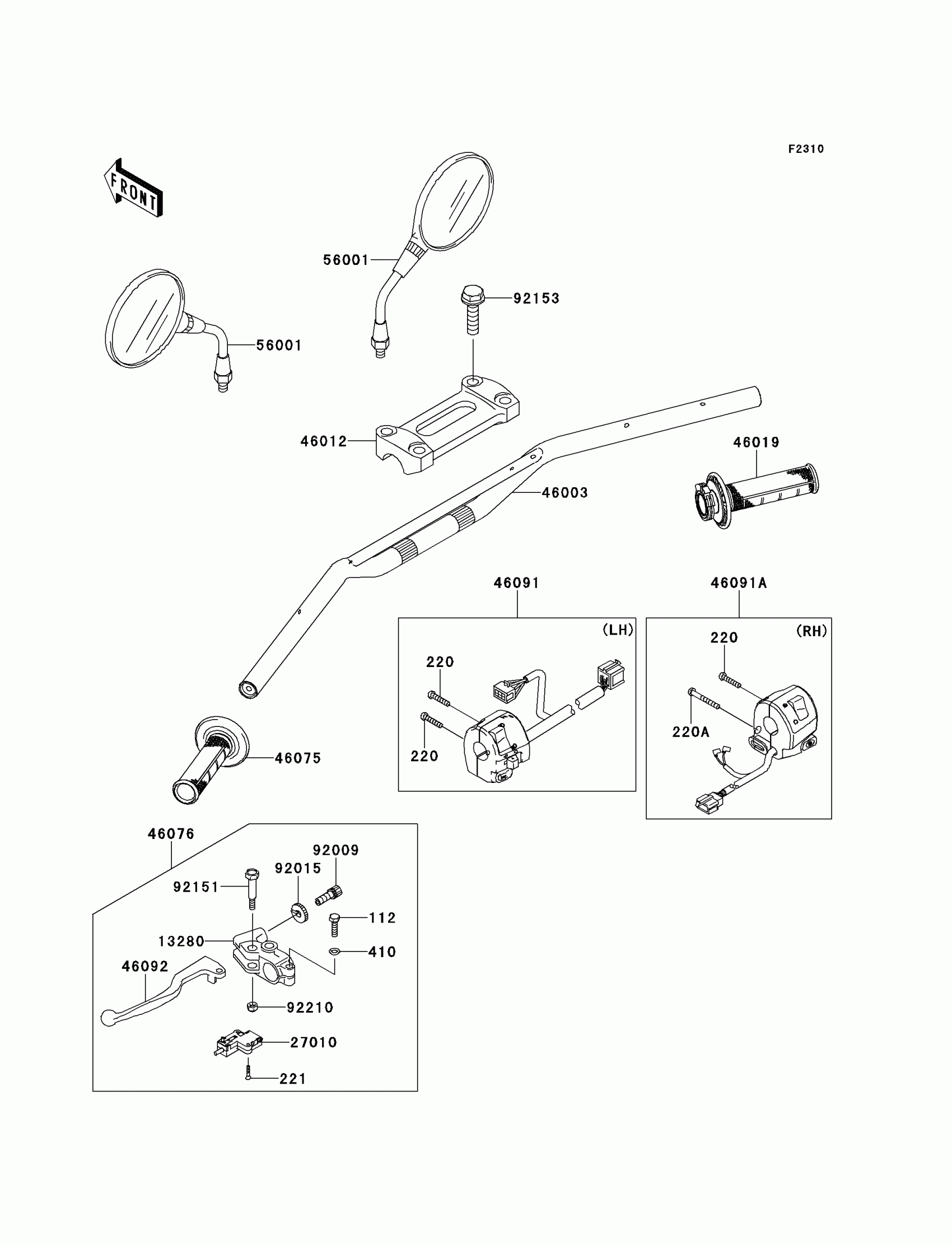

Kawasaki KLX®250S Handlebar Diagram

BOLT-UPSET,6X22

SCREW-PAN-CROS,5X25

SCREW-PAN-CROS,5X40

SCREW-CSK-CROS,3X16

WASHER-PLAIN-SMALL,6MM

HOLDER,CLUTCH LEVER

SWITCH,CLUTCH,BLACK

HANDLE,P.SILVER

HOLDER-HANDLE,UPP,F.S.BLACK

GRIP-ASSY,THROTTLE

GRIP,LH

LEVER-ASSY-GRIP,CLUTCH

HOUSING-ASSY-CONTROL,LH

HOUSING-ASSY-CONTROL,RH

LEVER-GRIP,CLUTCH

MIRROR-ASSY

SCREW,CABLE ADJUST,8MM,BLACK

NUT,CABLE ADJUST LOCK,8MM,BLK

BOLT,LEVER SET

BOLT,FLANGED,8X30

NUT,LOCK,6MM
