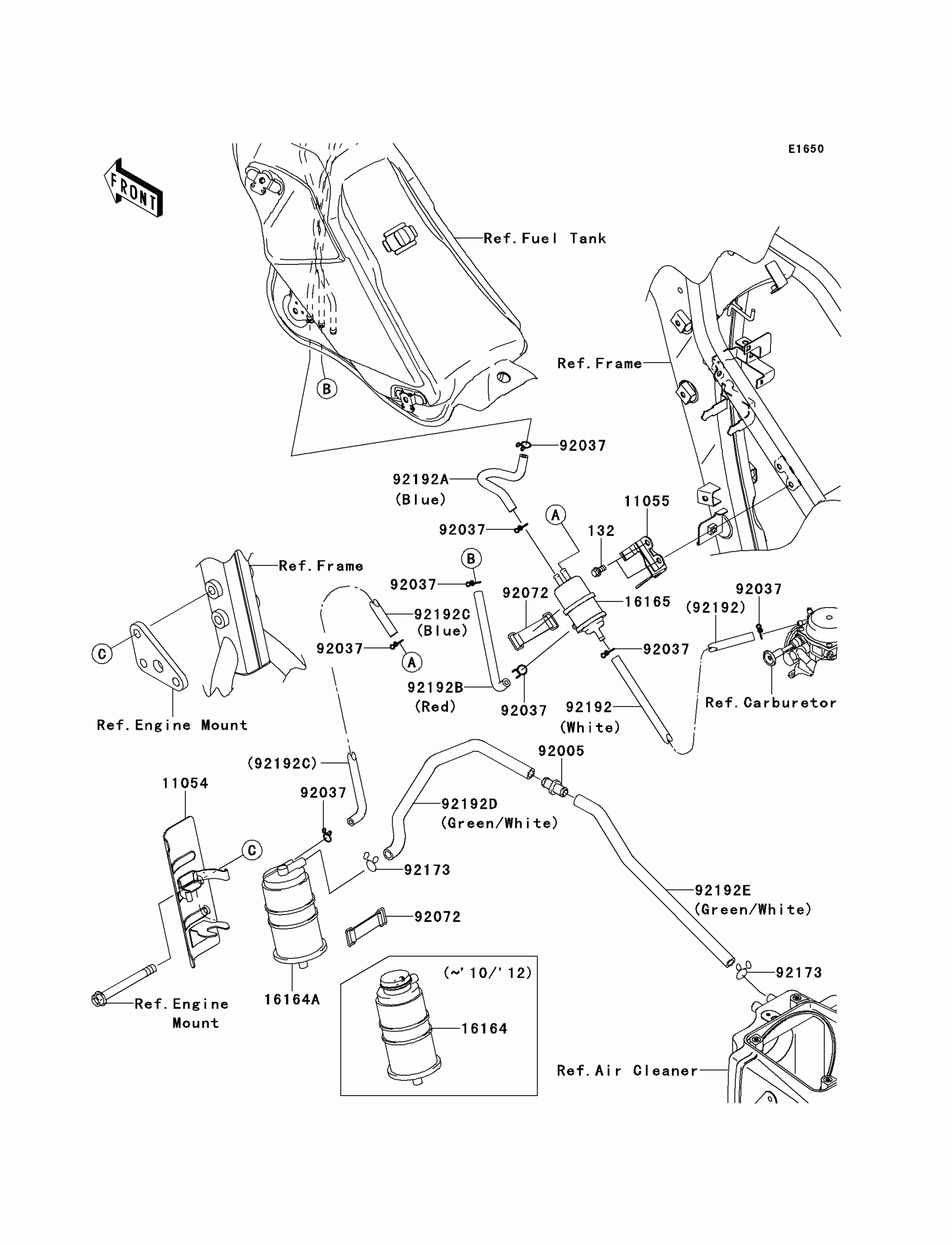

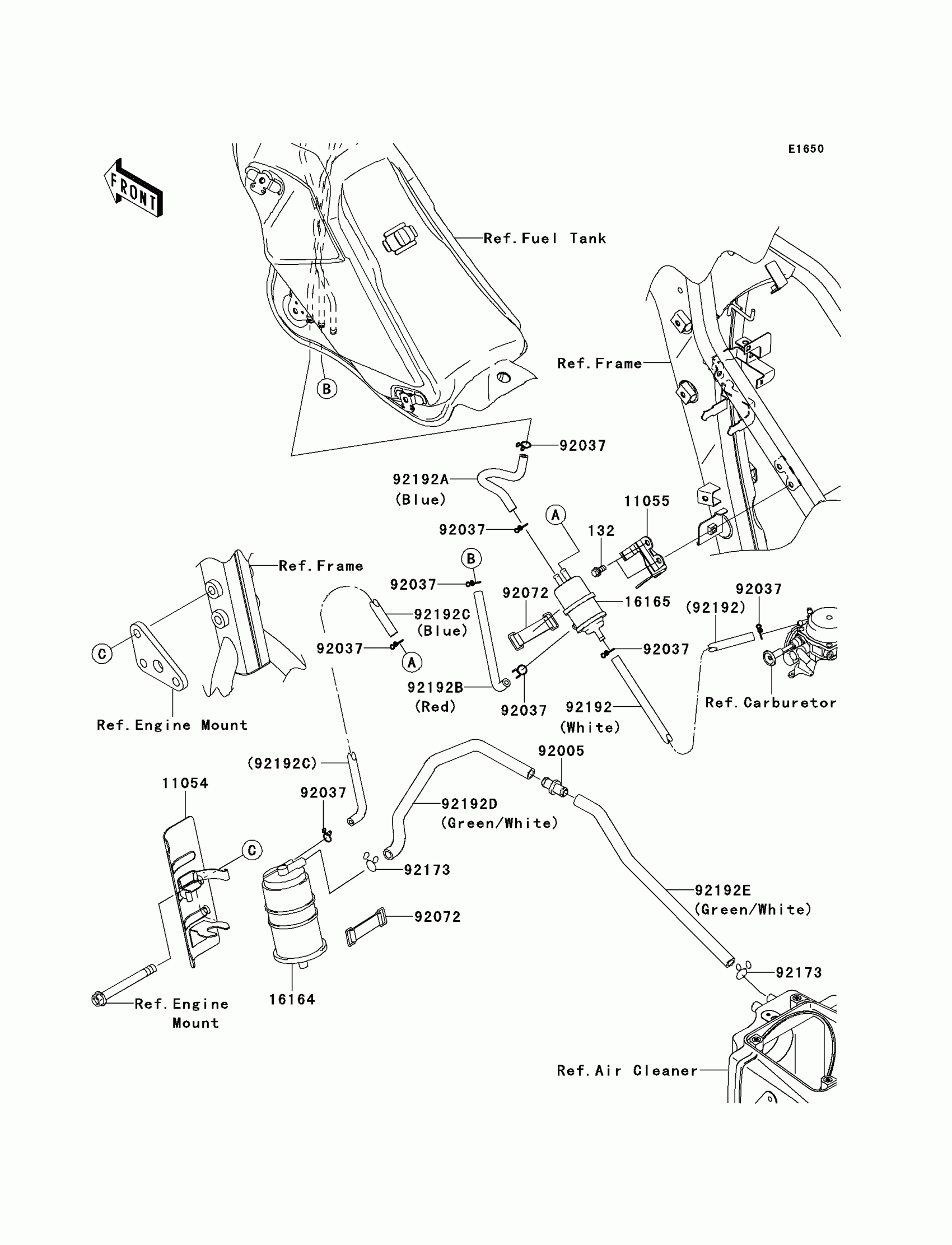

Kawasaki KLX®250S Fuel Evaporative System(CA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

11054

BRACKET,CANISTER

11054-1638

$26.40

11055

BRACKET,SEPARATOR

11055-1149

$8.44

16164

CANISTER

16164-0704

$135.19

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1379

$5.29

92037

CLAMP,TUBE

92037-147

$7.34

92072

BAND,L=50

92072-1419

$16.08

92173

CLAMP,14MM

92173-0192

$3.74

92192

TUBE,CARB.-SEPARATOR,WHITE

92192-0486

$3.94

92192A

TUBE,TANK-SEPARATOR,BLUE

92192-0722

$40.76

92192B

TUBE,SEPARATOR-TANK,RED

92192-0723

$40.76

92192C

TUBE,SEPARATOR-CANISTER,BLUE

92192-0724

$50.76

92192D

TUBE,CANISTER-FITTING,GRN/WHT

92192-0725

$65.39

92192E

TUBE,FITTING-A/C,GRN/WHT

92192-0726

$65.39
