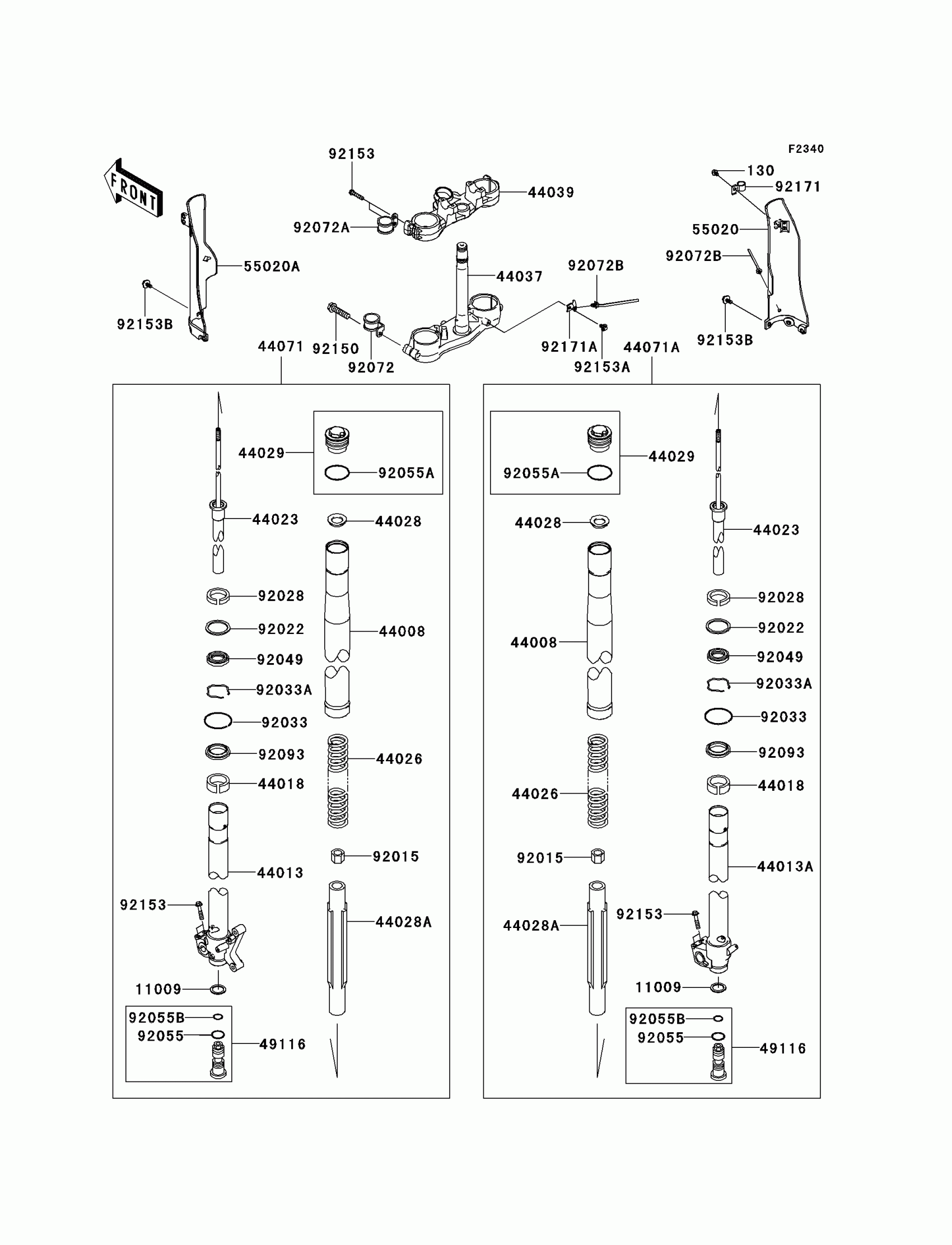

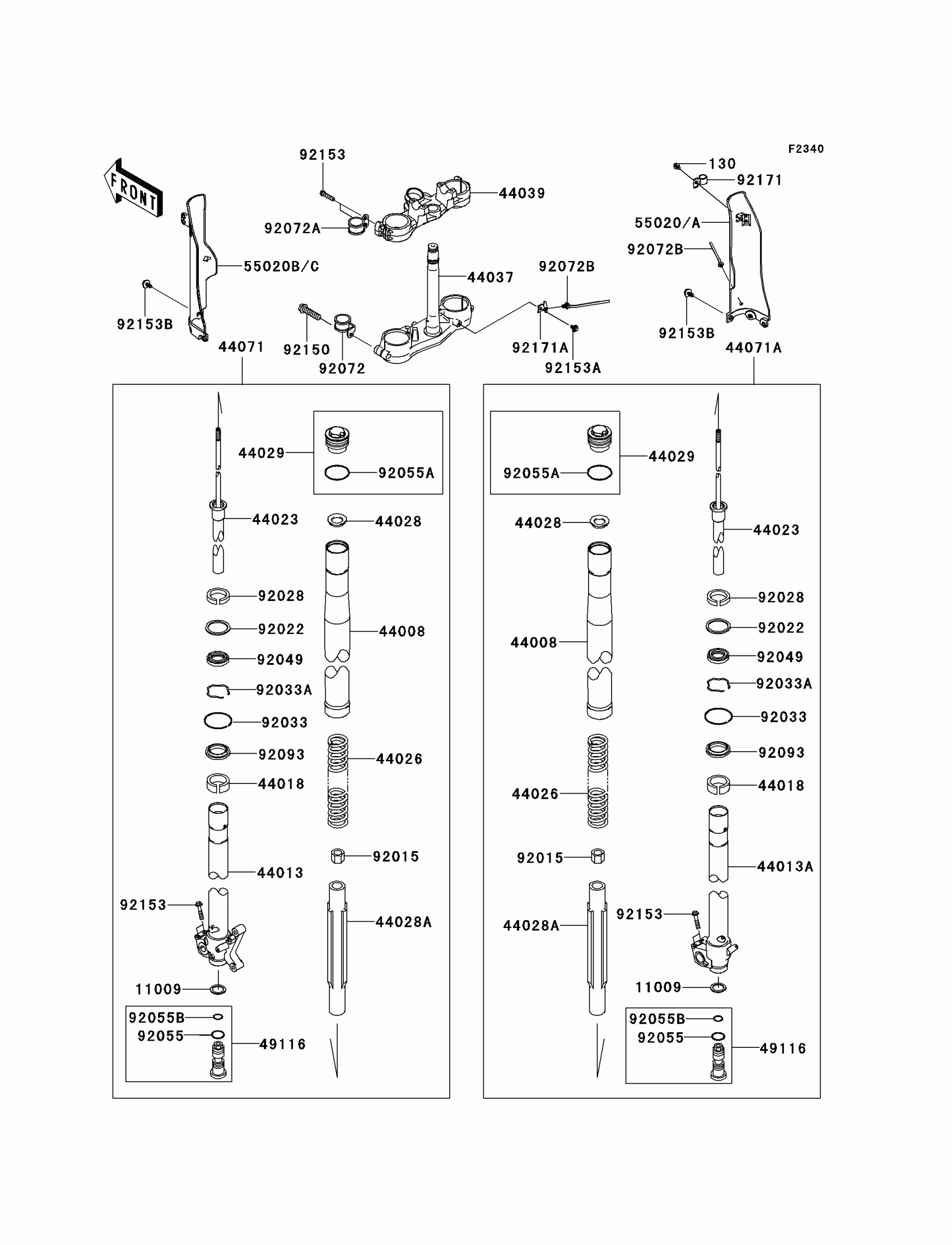

Kawasaki KLX®250S Front Fork Diagram
#
130
BOLT-FLANGED,6X8
130BB0608
$6.07
11009
GASKET,FORK CYLINDER BOLT
11009-1592
$6.16
44008
PIPE-FORK OUTER,SILVER
44008-0032-KX
$461.27
44013
PIPE-FORK INNER,LH,P.SILVER
44013-0090-458
$342.60
44013A
PIPE-FORK INNER,RH,P.SILVER
44013-0092-458
$342.60
44018
PISTON-FORK,INNER PIPE
44018-1056
$28.45
44023
CYLINDER-SET-FORK
44023-0062
$381.04
44026
SPRING-FRONT FORK
44026-0103
$99.25
44028
GUIDE-FORK SPRING
44028-1081
$12.12
44028A
GUIDE-FORK SPRING
44028-1084
$12.85
44029
SEAT-FORK SPRING,SILVER
44029-0010-KX
$117.08
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0078-18R
$597.50
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0059-18R
$246.87
44071
DAMPER-ASSY,FORK,LH,SILVER
44071-5074
$956.21
44071A
DAMPER-ASSY,FORK,RH,SILVER
44071-5075
$956.21
49116
VALVE-ASSY,FORK
49116-1168
$126.02
55020
GUARD,FORK,RH,EBONY
55020-0320-6C
$49.37
55020A
GUARD,FORK,LH,EBONY
55020-0484-6C
$49.37
92015
NUT
92015-1839
$19.64
92022
WASHER
92022-1299
$8.58
92028
BUSHING
92028-1581
$21.80
92033
RING-SNAP
92033-0080
$5.95
92033A
RING-SNAP
92033-1077
$4.96
92049
SEAL-OIL
92049-1373
$28.98
92055
RING-O
92055-1156
$1.42
92055A
RING-O,FORK,AIR TUBE
92055-1333
$6.00
92055B
RING-O,FORK VALVE
92055-1502
$7.45
92072
BAND
92072-1267
$20.92
92072A
BAND
92072-1283
$26.45
92072B
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92093
SEAL,FORK OUTER TUBE
92093-1342
$18.72
92150
BOLT,FLANGED,8X40
92150-1446
$12.68
92153
BOLT,8X40
92153-0020
$5.59
92153A
BOLT,6X12
92153-0503
$2.80
92153B
BOLT,FLANGED,6X14
92153-0936
$2.97
92171
CLAMP
92171-1833
$8.44
92171A
CLAMP,SPEED SENSOR HARNESS
92171-1905
$11.65
