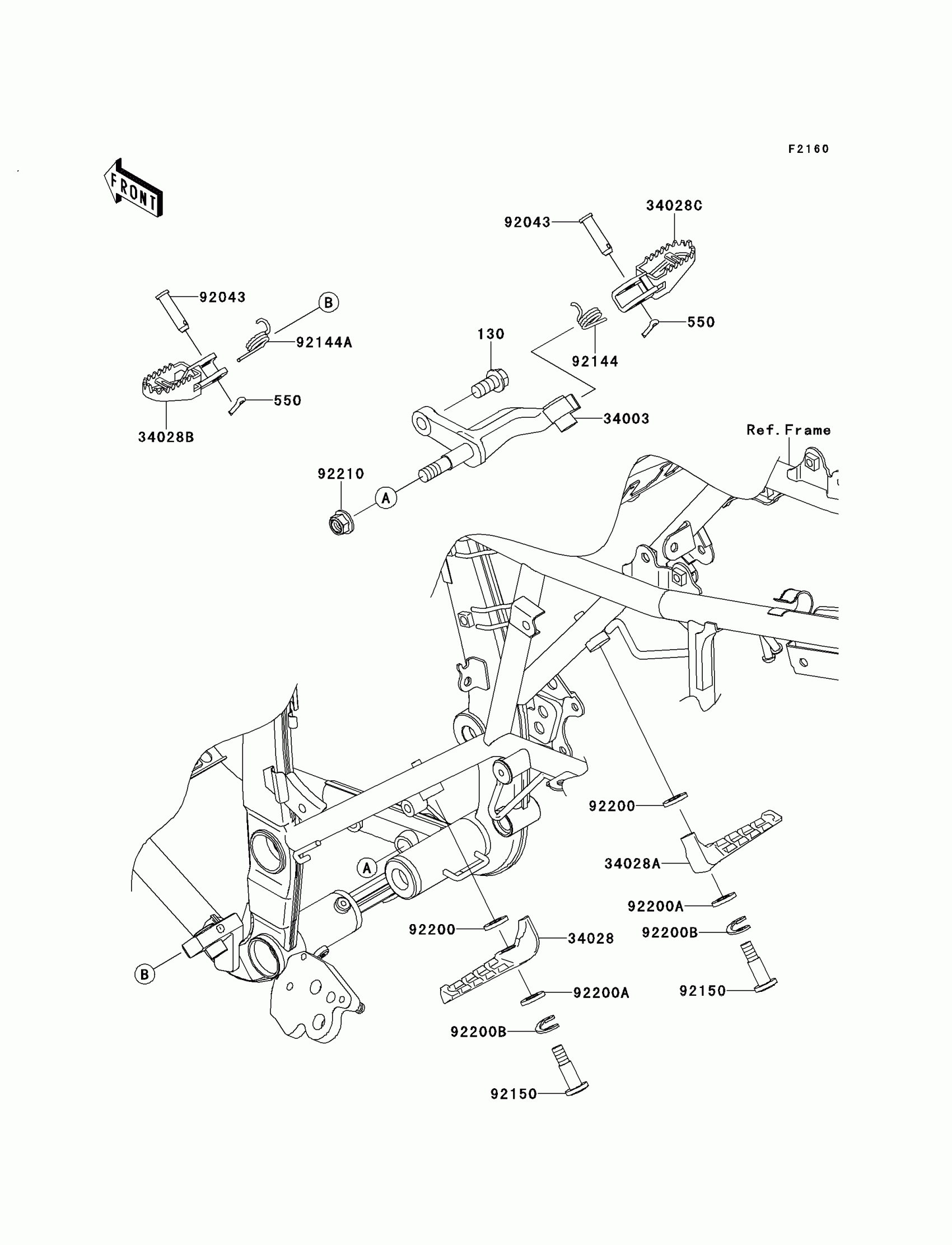

Kawasaki KLX®250S Footrests Diagram

Description

Price

130

BOLT-FLANGED,10X20

130CA1020

$2.13

550

PIN-COTTER,2.5X15

550AA2515

$0.47

34003

HOLDER-STEP,RH,F.S.BLACK

34003-0084-18R

$120.13

34028

STEP,RR,LH

34028-0110

Unavailable

34028A

STEP,RR,RH

34028-0111

Unavailable

34028B

STEP,FR,LH

34028-1361

$48.53

34028C

STEP,FR,RH

34028-1362

$48.53

92043

PIN,8X35.5

92043-115

$9.51

92144

SPRING,STEP RETURN,RH

92144-1685

$7.38

92144A

SPRING,STEP RETURN,LH

92144-1749

$1.50

92150

BOLT,SOCKET,8X34

92150-1584

$7.68

92200

WASHER,8.5X16X1.2

92200-0089

$1.74

92200A

WASHER,10.5X19X2.3

92200-1042

$3.92

92200B

WASHER,SPRING

92200-1133

$10.16

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28
