2013 Kawasaki KLX®250S Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2013 Kawasaki KLX®250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

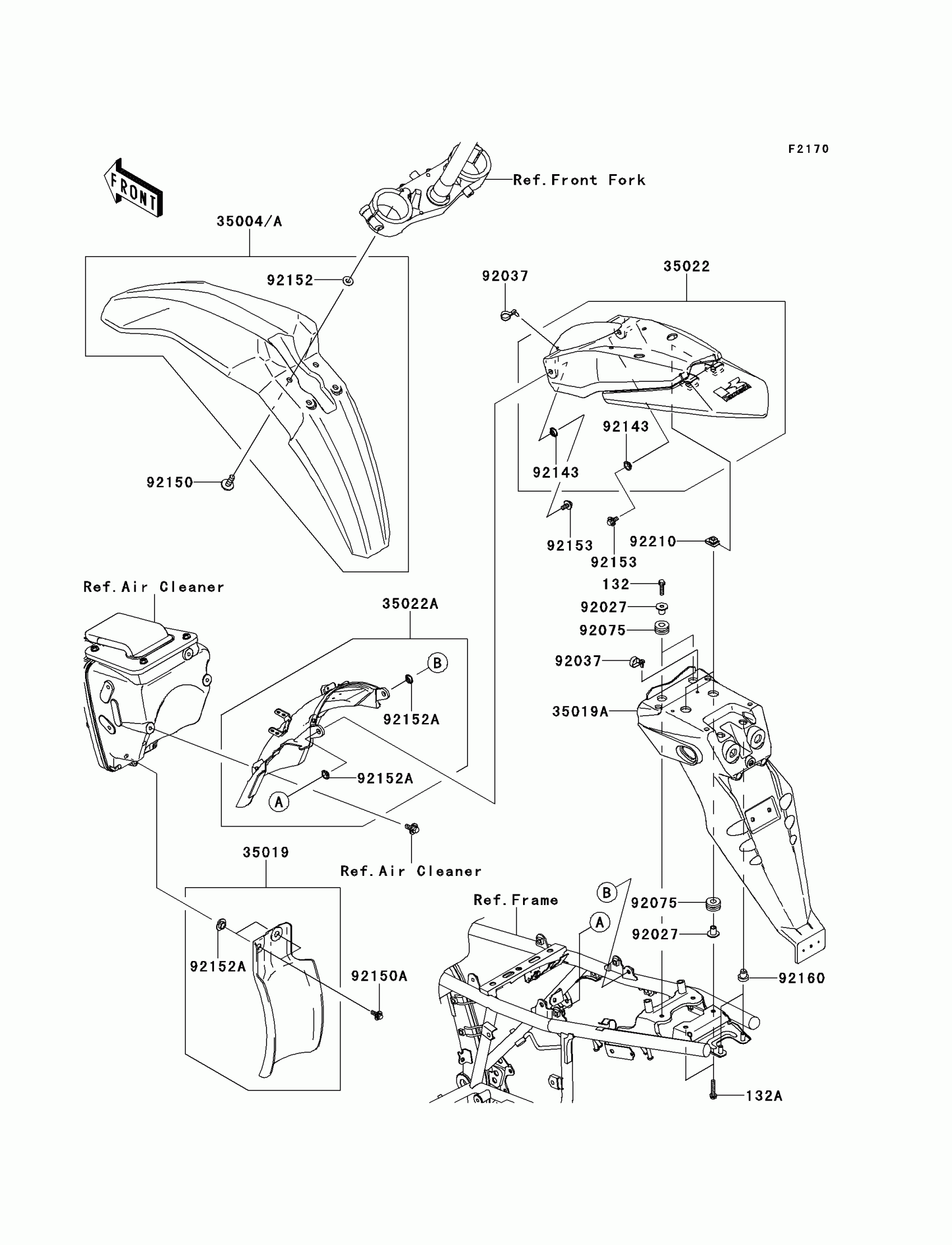

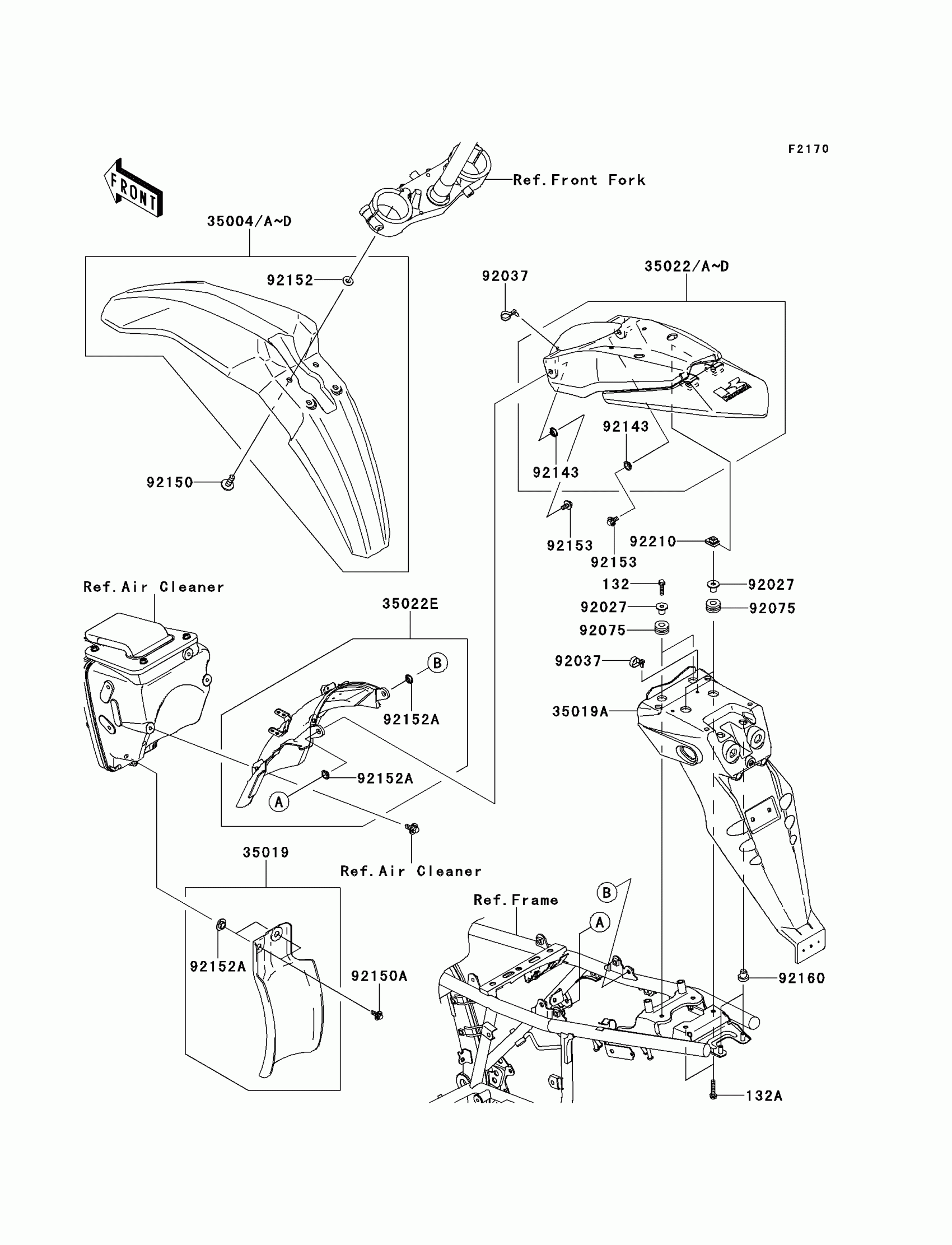

2013 Kawasaki KLX®250S Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.93

In stock

132A

1

$3.28

In stock

35004

FENDER-FRONT,B.WHITE

35004-0080-266

1

$85.83

In stock

35004A

FENDER-FRONT,L.GREEN

35004-0080-290

1

$84.78

In stock

35019

FLAP,RR FENDER,FR

35019-0004

1

$8.82

In stock

35019A

FLAP,RR

35019-0056

1

$68.93

In stock

35022

1

$76.40

In stock

35022C

1

$75.69

In stock

35022E

FENDER-COMP-REAR,FR

35022-0058

1

$36.68

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92152A

COLLAR,8.8X11.2X4

92152-0909

1

$4.47

In stock

92153

BOLT,6X20

92153-0502

1
Out of stock

92160

DAMPER

92160-1303

1

$0.80

In stock

92210

NUT,6MM

92210-0474

1
Out of stock
