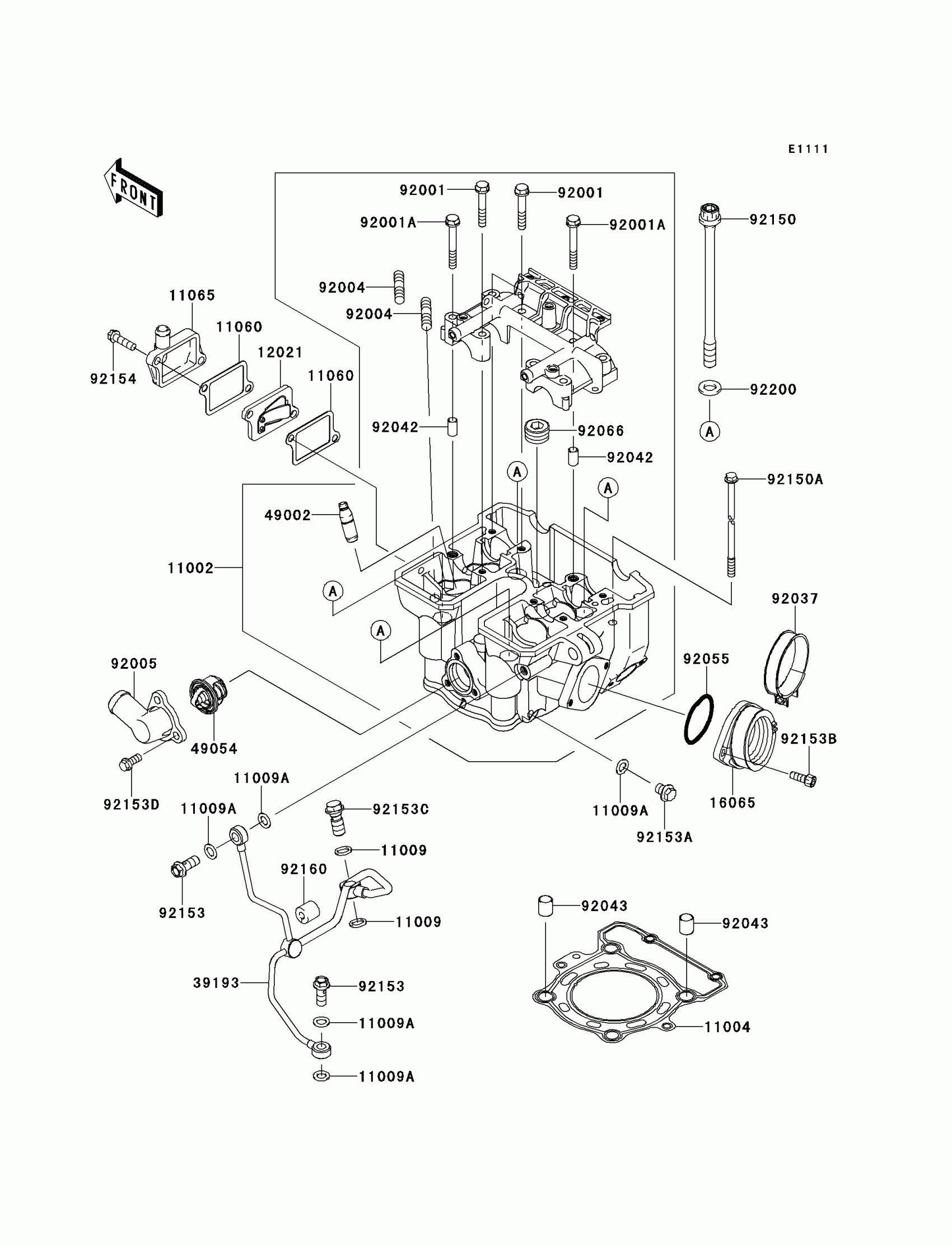

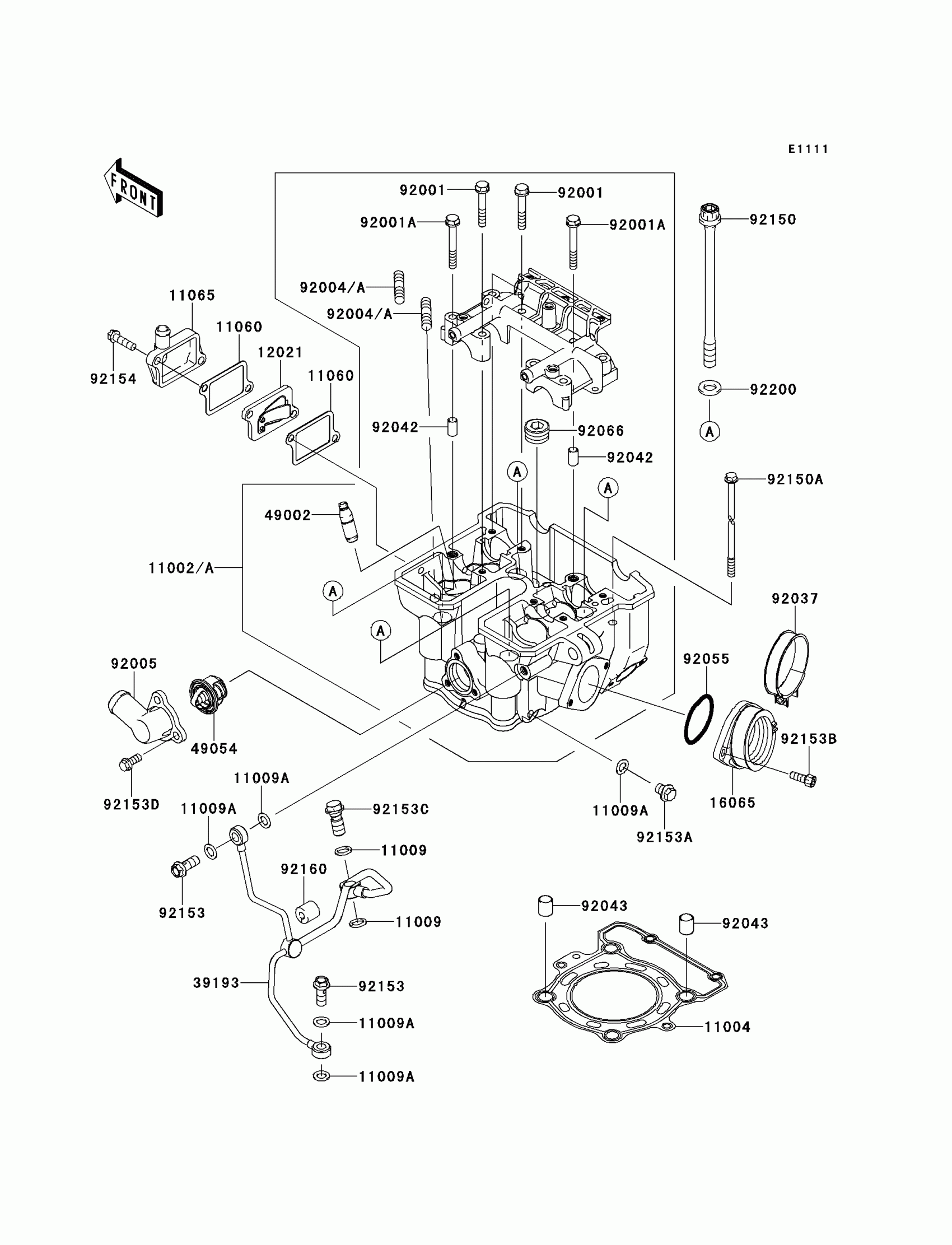

Kawasaki KLX®250S Cylinder Head Diagram
#
Description
Price
11002
HEAD-ASSY-CYLINDER
11002-0072
$1,001.73
11004
GASKET-HEAD
11004-1249
$46.85
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
11009A
GASKET,8.2X14X1.0
11009-1344
$3.17
11060
GASKET,AIR SUCTION VALVE
11060-1886
$3.65
11065
CAP
11065-1190
Unavailable
12021
VALVE-ASSY-REED
12021-1115
$48.19
16065
HOLDER-CARBURETOR
16065-1283
$49.72
39193
PIPE-OIL
39193-0045
$111.60
49002
GUIDE-VALVE
49002-1126
$34.20
49054
THERMOSTAT
49054-1053
$54.56
92001
BOLT,FLANGED,6X38
92001-1105
$4.69
92001A
BOLT,6X46
92001-1872
$4.31
92004
STUD
92004-0050
$3.62
92005
FITTING
92005-0107
$31.84
92037
CLAMP,ID=53,BLACK
92037-1304
$10.28
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O
92055-1255
$18.57
92066
PLUG,PT1/2X12.5
92066-0002
$8.98
92150
BOLT,10X165
92150-1368
$18.89
92150A
BOLT,6X135
92150-1552
$7.34
92153
BOLT,BANJO,8X20
92153-0651
$11.20
92153A
BOLT,FLANGED,8X10
92153-1342
$3.39
92153B
BOLT,SOCKET,6X16
92153-1344
$2.97
92153C
BOLT,BANJO,10X23
92153-1345
$10.30
92153D
BOLT
92153-1805
$2.61
92154
BOLT,FLANGED,6X22
92154-0504
$1.94
92160
DAMPER,6.3X15X14
92160-1523
$2.70
92200
WASHER,10.5X19X2.3
92200-1042
$3.92
