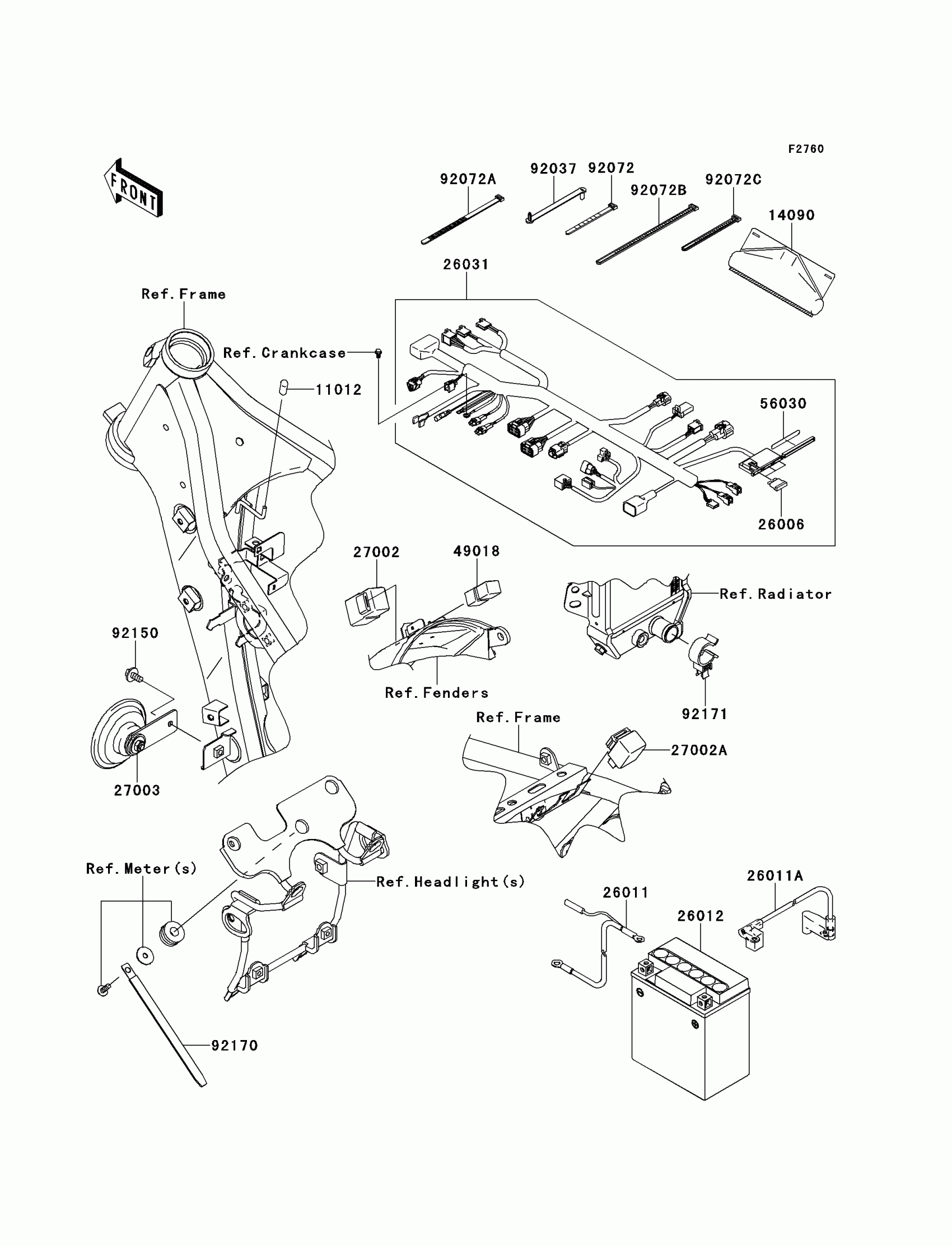

Kawasaki KLX®250S Chassis Electrical Equipment Diagram

Description

Price

11012

CAP,BUNGEE CORD HOOK

11012-1589

$7.77

14090

COVER,COUPLER

14090-1331

$8.51

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26011

WIRE-LEAD,BATTERY(-)

26011-0209

$30.48

26011A

WIRE-LEAD,BATTERY(+)

26011-1609

$37.24

26012

BATTERY,FTX7L-BS,12V6AH

26012-0070

Unavailable

26031

HARNESS,MAIN

26031-0721

$396.31

27002

RELAY-ASSY

27002-1086

$36.91

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0029

$81.39

49018

DIODE

49018-0005

$47.13

56030

LABEL,FUSE BOX

56030-0192

$4.09

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=202

92072-1195

$1.56

92072B

BAND,L=250

92072-1237

$2.14

92072C

BAND,L=140

92072-1293

$7.11

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92170

CLAMP,L=150

92170-1114

$7.45

92171

CLAMP

92171-1437

$3.73
