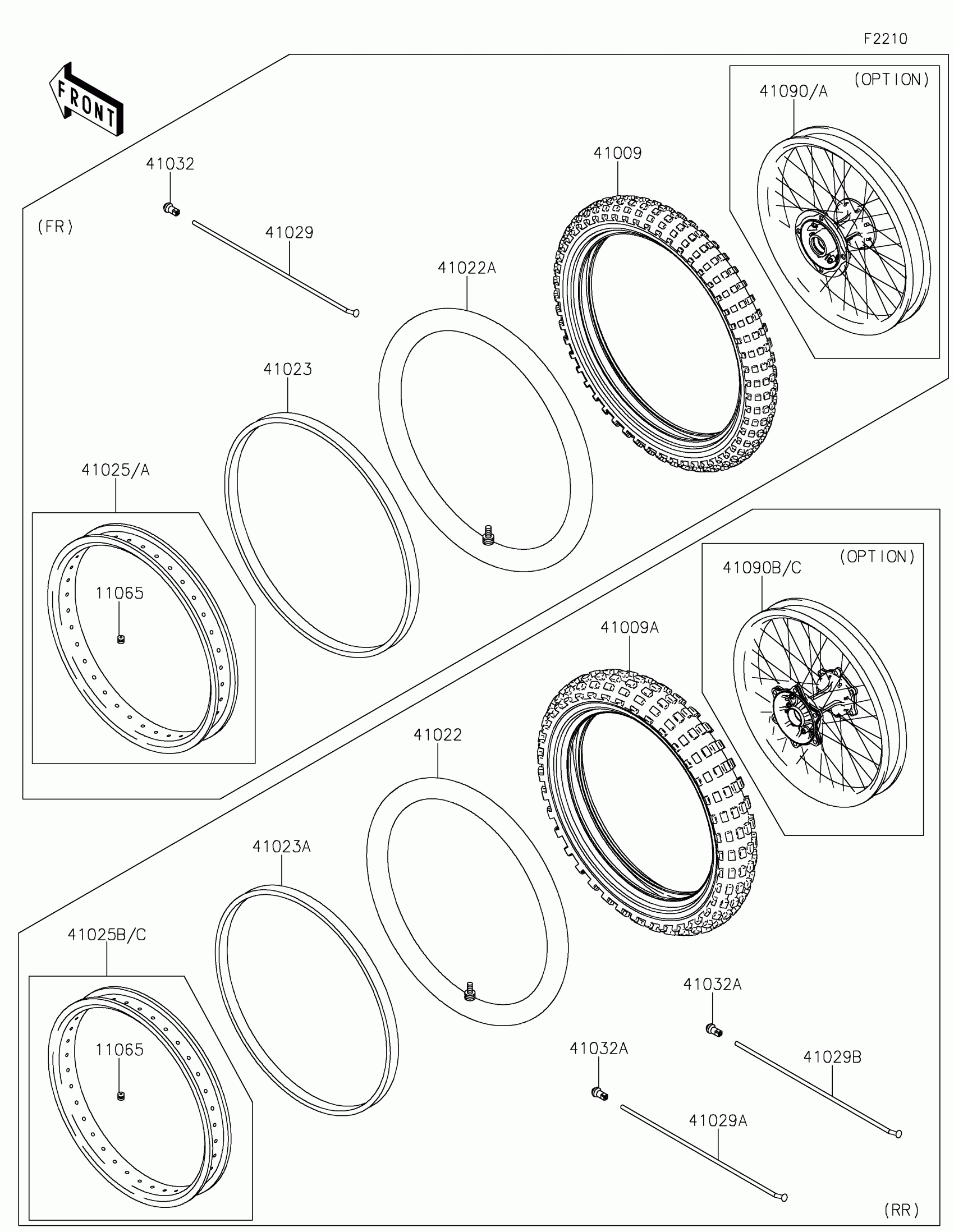

Kawasaki KLX®250 Wheels/Tires Diagram

CAP,BEAD STOPPER

11065-0384

$3.68

TIRE,FR,3.00-21 51P,D605 FG(D)

41009-0781

$144.88

TIRE,RR,4.60-18 63P,D605G(D)

41009-0782

$150.12

TUBE-TIRE,4.60-18(D),SNI

41022-0096

$39.96

TUBE-TIRE,FR,80/100-21(D)

41022-1244

$51.36

BAND-RIM,21XWM1.60-1.85(D)

41023-1144

$14.47

BAND-RIM,18XWM/MT 1.85-2.15(D)

41023-1145

$14.47

RIM,FR,1.60X21,SILVER

41025-0318-WA

$391.47

RIM,RR,2.15X18,SILVER

41025-0320-WA

$414.27

SPOKE-INNER,FR,228MMX165D

41029-0004

$4.33

SPOKE-INNER,RR,LH,193.1MMX165D

41029-0047

$5.46

SPOKE-INNER,RR,RH,189.1MMX160D

41029-0048

$5.46

NIPPLE-SPOKE

41032-0005

$2.94

NIPPLE-SPOKE

41032-0007

$3.26

WHEEL-SUB ASSY,FR,SILVER

41090-0041-WA

$719.76

WHEEL-SUB ASSY,RR,SILVER

41090-0042-WA

$838.43
