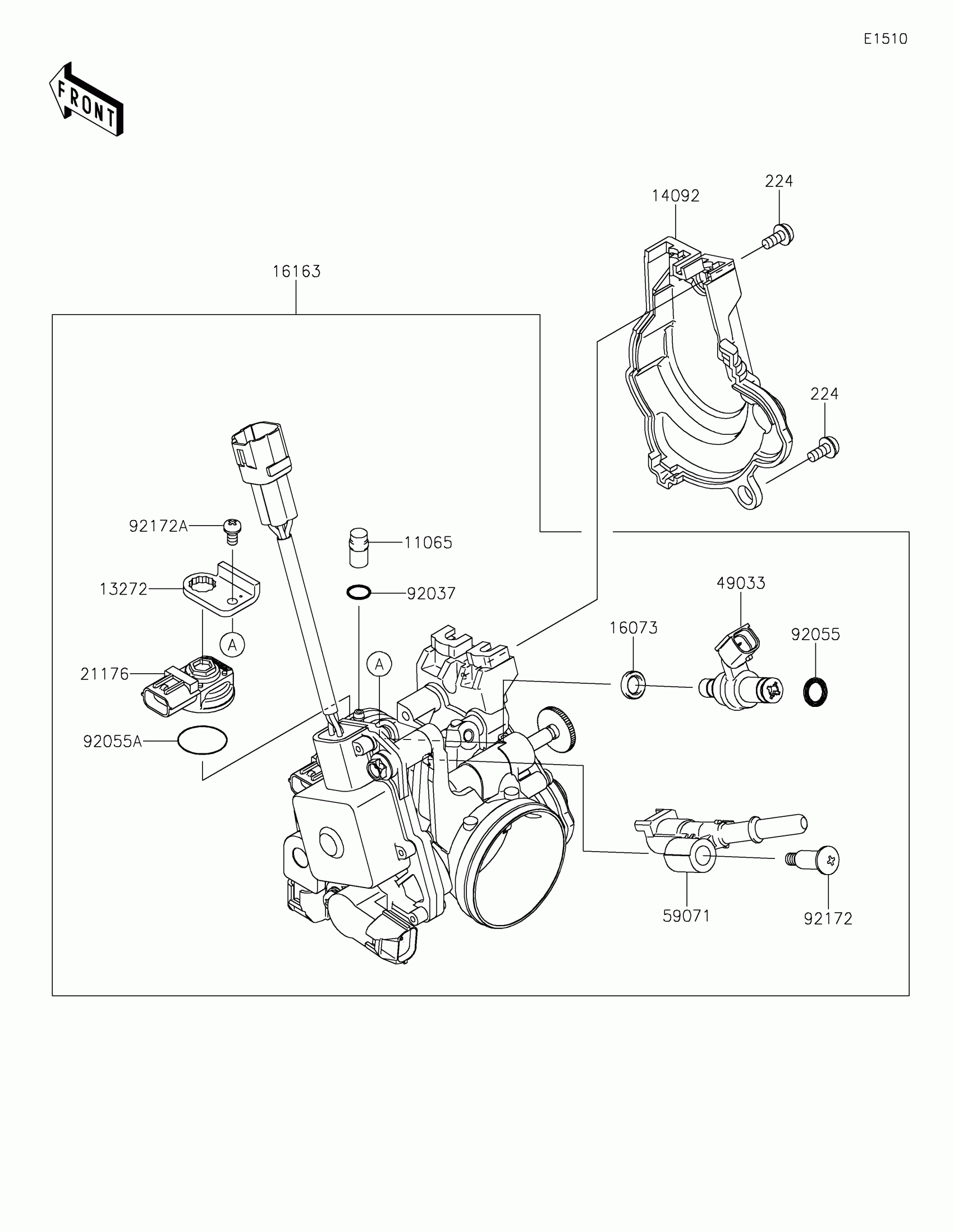

Kawasaki KLX®250 Throttle Diagram

Description

Price

11065

CAP

11065-0018

$6.12

13272

PLATE

13272-0676

$15.62

14092

COVER

14092-0887

$28.72

16073

INSULATOR

16073-0077

$7.21

16163

THROTTLE-ASSY

16163-0724

$677.59

21176

SENSOR

21176-0122

$135.54

49033

NOZZLE-INJECTION

49033-0016

$126.73

59071

JOINT

59071-0063

$43.00

92037

CLAMP,TUBE

92037-1142

$4.31

92055

RING-O

92055-0170

$2.95

92055A

RING-O

92055-0184

$4.25

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0415

$3.19

224

SCREW-PAN-WP-CROS,5X10

224AB0510

$1.40
