Description

Price

11012

CAP,SWING ARM

11012-1259

$21.80

12053

GUIDE-CHAIN,RR,OUTSIDE

12053-1268

$30.24

12053A

GUIDE-CHAIN,DRIVE,RR,INSIDE

12053-1270

$44.98

12053B

GUIDE-CHAIN,DRIVE,FR

12053-1328

$48.62

12053C

GUIDE-CHAIN,DRIVE,RR,OUTSIDE

12053-1453

$55.25

12053D

GUIDE-CHAIN,DRIVE,RR,INSIDE

12053-1454

$55.25

33001A

ARM-COMP-SWING,P.SILVER

33001-0176-458

$837.15

33032

SHAFT-SWING ARM

33032-0033

$55.96

33040

ADJUSTER-CHAIN

33040-0023

$8.29

42036

SLEEVE,SWING ARM

42036-1064

$21.29

92015

NUT,14MM

92015-1407

$9.91

92046

BEARING-NEEDLE

92046-0038

$26.03

92143

COLLAR

92143-1156

$6.22

92153

BOLT,8X55

92153-1407

$2.15

92210

NUT,FLANGED,6MM

92210-0630

$2.00

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X60

132BA0660

$4.12

220

SCREW-PAN-CROS,6X8

220AA0608

$0.59

221

SCREW-CSK-CROS,6X50

221AA0650

$4.12

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67

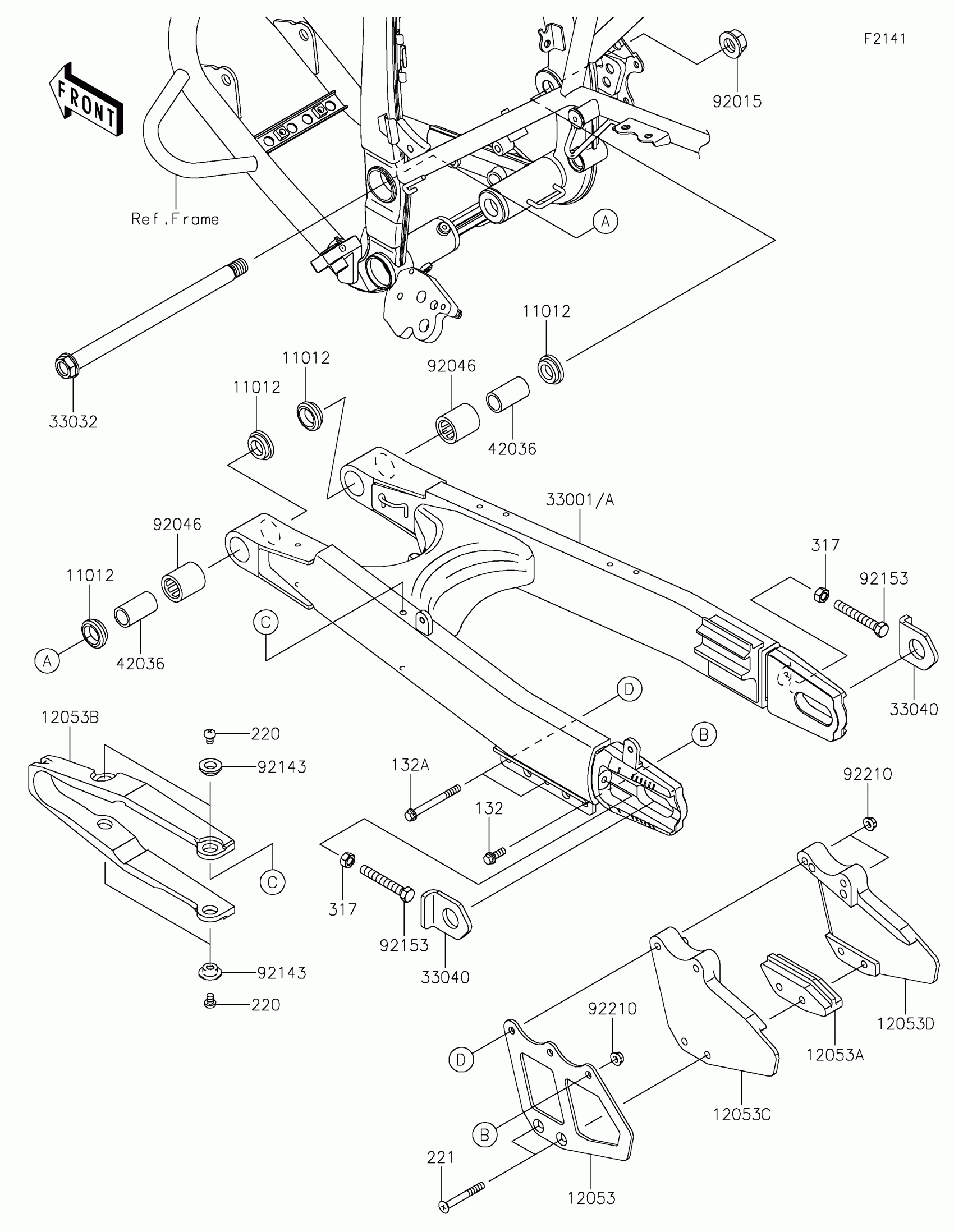

Kawasaki KLX®250 Swingarm Diagram

CAP,SWING ARM

GUIDE-CHAIN,RR,OUTSIDE

GUIDE-CHAIN,DRIVE,RR,INSIDE

GUIDE-CHAIN,DRIVE,FR

GUIDE-CHAIN,DRIVE,RR,OUTSIDE

GUIDE-CHAIN,DRIVE,RR,INSIDE

ARM-COMP-SWING,P.SILVER

SHAFT-SWING ARM

ADJUSTER-CHAIN

SLEEVE,SWING ARM

NUT,14MM

BEARING-NEEDLE

COLLAR

BOLT,8X55

NUT,FLANGED,6MM

BOLT-FLANGED-SMALL,6X16

BOLT-FLANGED-SMALL,6X60

SCREW-PAN-CROS,6X8

SCREW-CSK-CROS,6X50

NUT-HEX-SMALL,8MM
