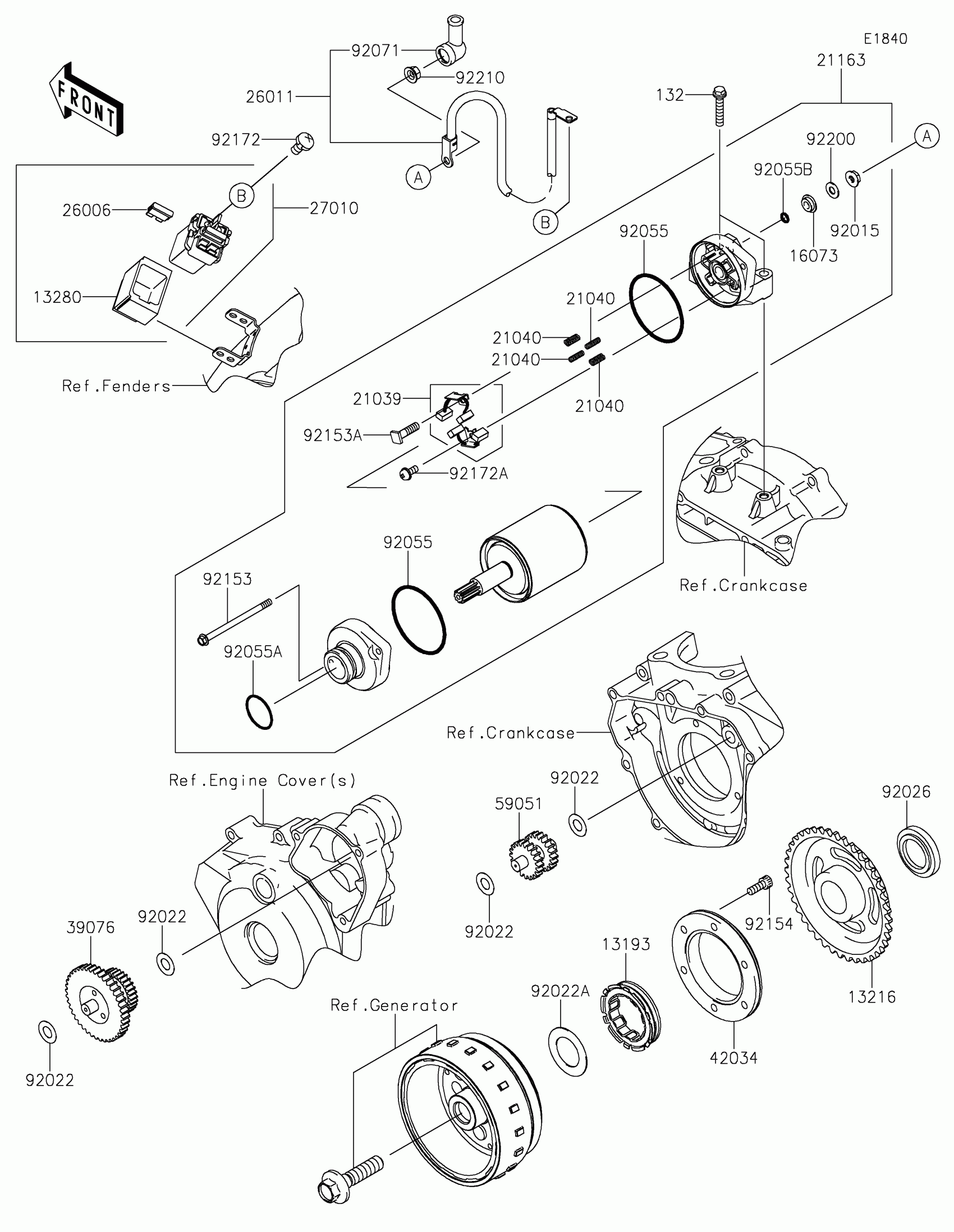

Kawasaki KLX®250 Starter Motor Diagram
#
Description
Price
13193
CLUTCH-ASSY-ONEWAY
13193-0007
$119.24
13216
GEAR-COMP,ONEWAY CLUTCH
13216-1148
$195.45
13280
HOLDER
13280-0816
$7.60
16073
INSULATOR
16073-0053
$11.93
21039
BRUSH,CARBON
21039-0004
$117.72
21040
SPRING-BRUSH
21040-0003
$9.79
21163
STARTER-ELECTRIC
21163-0046
$494.71
26006
FUSE,BLADE,20A,YELLOW
26006-1051
$4.96
26011
WIRE-LEAD,STARTER
26011-0782
$22.38
27010
SWITCH
27010-0774
$115.74
39076
LIMITER,STARTER IDLE GEAR
39076-0020
$183.19
42034
COUPLING
42034-0048
$117.33
59051
GEAR-SPUR,IDLE
59051-1304
$89.00
92015
NUT,STARTER MOTOR
92015-1476
$4.31
92022
WASHER,10.2X20X0.5
92022-1649
$4.31
92022A
WASHER,27.2X44X1.0
92022-1781
$6.34
92026
SPACER
92026-1450
$19.96
92055
RING-O
92055-0136
$7.75
92055A
RING-O
92055-1276
$9.91
92055B
RING-O,4.5X2.0
92055-1370
$4.69
92071
GROMMET
92071-0705
$6.89
92153
BOLT
92153-1850
$11.93
92153A
BOLT
92153-1866
$4.65
92154
BOLT,SOCKET,6X16
92154-0235
$2.95
92172
SCREW-PAN-WS-CROS,5X10
92172-0234
$2.15
92172A
SCREW
92172-0334
$4.65
92200
WASHER
92200-0386
$4.65
92210
NUT,6MM
92210-0188
$2.15
132
BOLT-FLANGED-SMALL,6X30
132BC0630
$2.15
