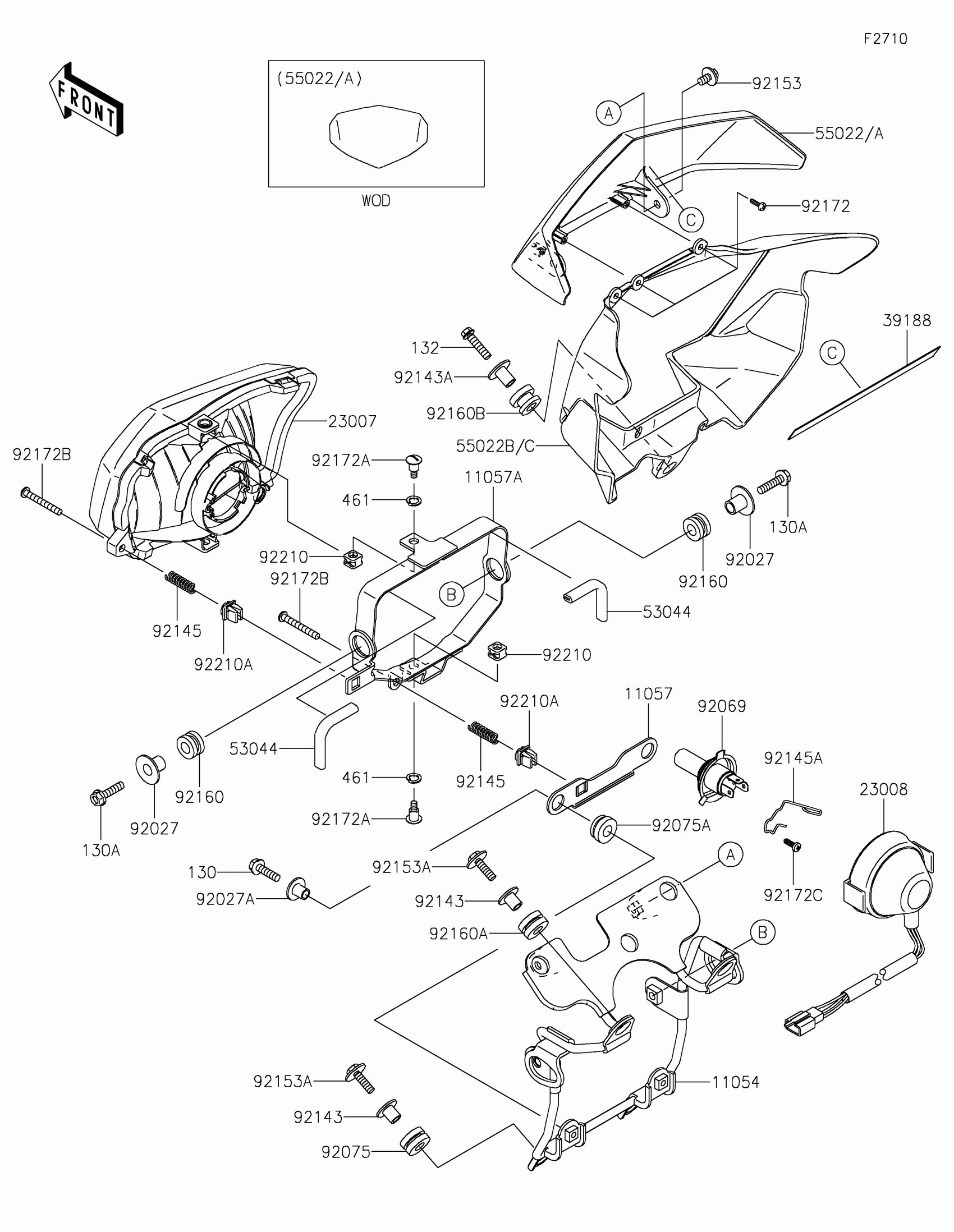

Kawasaki KLX®250 Headlight(s) Diagram
#
Description
Price
11054
BRACKET,HEAD LAMP&METER
11054-1692
$126.30
11057
BRACKET,HEAD LAMP,LWR PLATE
11057-1035
$38.53
11057A
BRACKET,HEAD LAMP,BIG PLATE
11057-1036
$14.80
23007
LENS-COMP,HEAD LAMP
23007-0109
$178.53
23008
SOCKET-ASSY,HEAD LAMP
23008-0089
$82.89
39188
TAPE
39188-0011
$8.37
53044
TRIM,L=90
53044-0033
$2.61
55022
COVER-HEAD LAMP,UPP,B.WHITE
55022-0044-266
$41.67
55022B
COVER-HEAD LAMP,LWR,L.GREEN
55022-0052-290
$60.47
92027
COLLAR,FUEL TANK FITT
92027-1134
$10.28
92027A
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92069
BULB,12V 60/55W,H4
92069-0050
$18.29
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92075A
DAMPER
92075-277
$2.84
92143
COLLAR
92143-1353
$8.58
92143A
COLLAR
92143-1960
$6.47
92145
SPRING,FOCUS ADJUSTING
92145-0565
$3.67
92145A
SPRING
92145-0753
$8.03
92153
BOLT,6X12
92153-0503
$2.80
92153A
BOLT,UPSET-WP,6X22
92153-0640
$2.12
92160
DAMPER
92160-1007
$5.52
92160A
DAMPER,10X20X12
92160-1167
$4.69
92160B
DAMPER
92160-1615
$3.73
92172
SCREW,TAPPING,4X12
92172-0233
$1.34
92172A
SCREW,5X16.7
92172-0345
$1.34
92172B
SCREW,5X45
92172-0346
$1.74
92172C
SCREW
92172-0456
$3.52
92210
NUT,PLASTIC
92210-0426
$5.91
92210A
NUT,5MM
92210-0427
$3.71
130
BOLT-FLANGED,6X22
130BB0622
$3.67
130A
BOLT-FLANGED,8X25
130BB0825
$4.45
132
BOLT-FLANGED-SMALL,6X25
132BB0625
$2.80
461
WASHER-SPRING,8MM
461DA0800
$0.40
