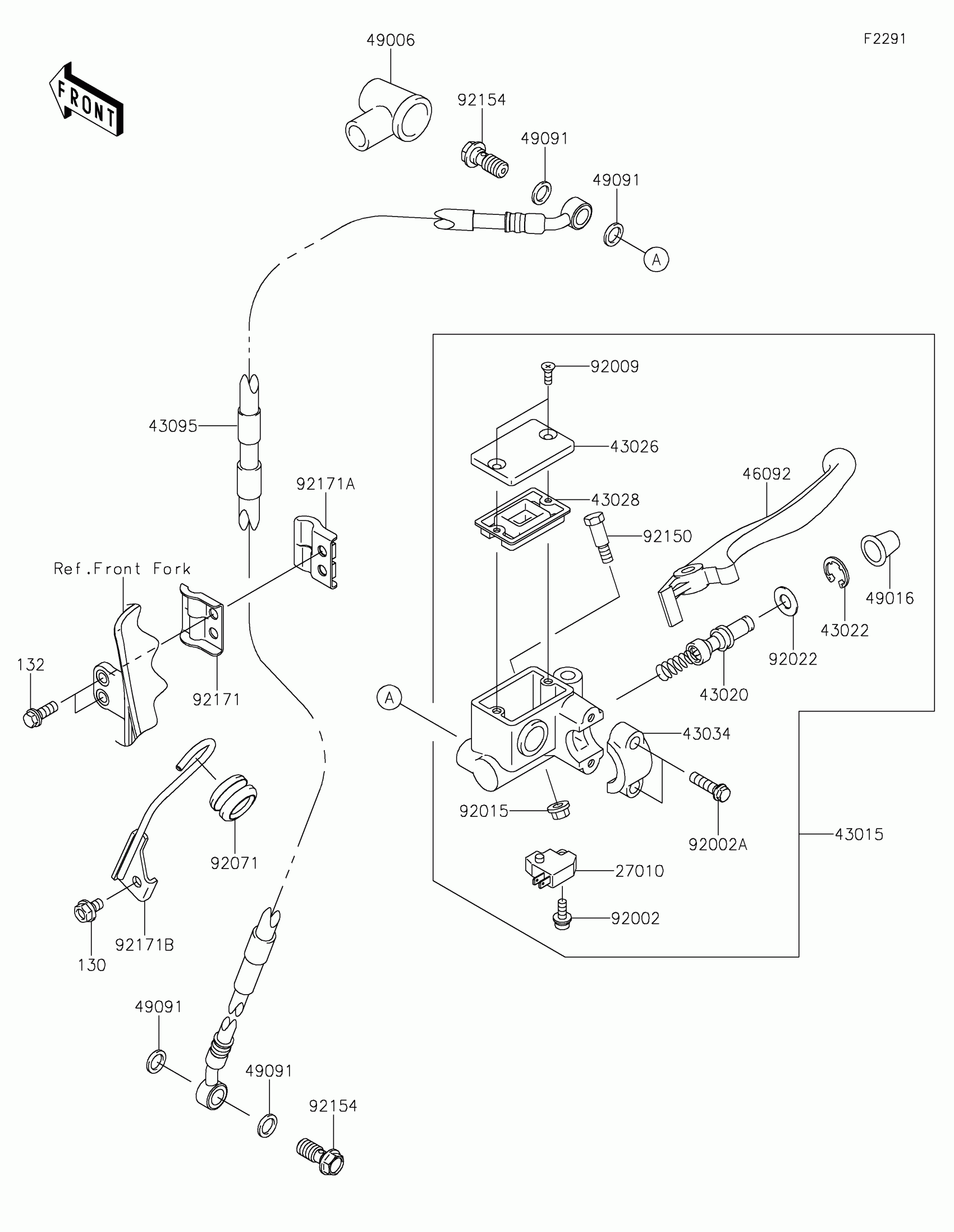

Kawasaki KLX®250 Front Master Cylinder Diagram
#
Description
Price
27010
SWITCH,BRAKE
27010-0762
$35.04
43015
CYLINDER-ASSY-MASTER,FR
43015-0705
$278.77
43020
PISTON-COMP-BRAKE
43020-1126
$50.01
43022
STOPPER-BRAKE,PISTON
43022-1010
$4.65
43026
CAP-BRAKE
43026-1074
$25.59
43028
DIAPHRAGM
43028-1061
$16.18
43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
$19.45
43095
HOSE-BRAKE,FR
43095-0687
$121.66
46092
LEVER-GRIP,FRONT BRAKE
46092-1140
$20.88
49006
BOOT,DUST
49006-1040
$11.49
49016
COVER-SEAL,MASTER CYLINDER
49016-1044
$8.68
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92002
BOLT,SCREW,4X12
92002-1323
$3.92
92002A
BOLT
92002-1894
$5.52
92009
SCREW,4MM
92009-1458
$3.21
92015
NUT,FLANGED,6MM
92015-1528
$5.52
92022
WASHER
92022-1814
$4.69
92071
GROMMET,15X20X16
92071-0056
$4.06
92150
BOLT,LEVER SET
92150-1451
$14.23
92154
BOLT,FLANGED,10X23
92154-0732
$5.05
92171
CLAMP,BRAKE HOSE
92171-1626
$7.60
92171A
CLAMP,BRAKE HOSE
92171-1627
$7.60
92171B
CLAMP,BRAKE HOSE
92171-1839
$12.56
130
BOLT-FLANGED,6X10
130BB0610
$2.49
132
BOLT-FLANGED-SMALL,6X16
132BB0616
$2.49
