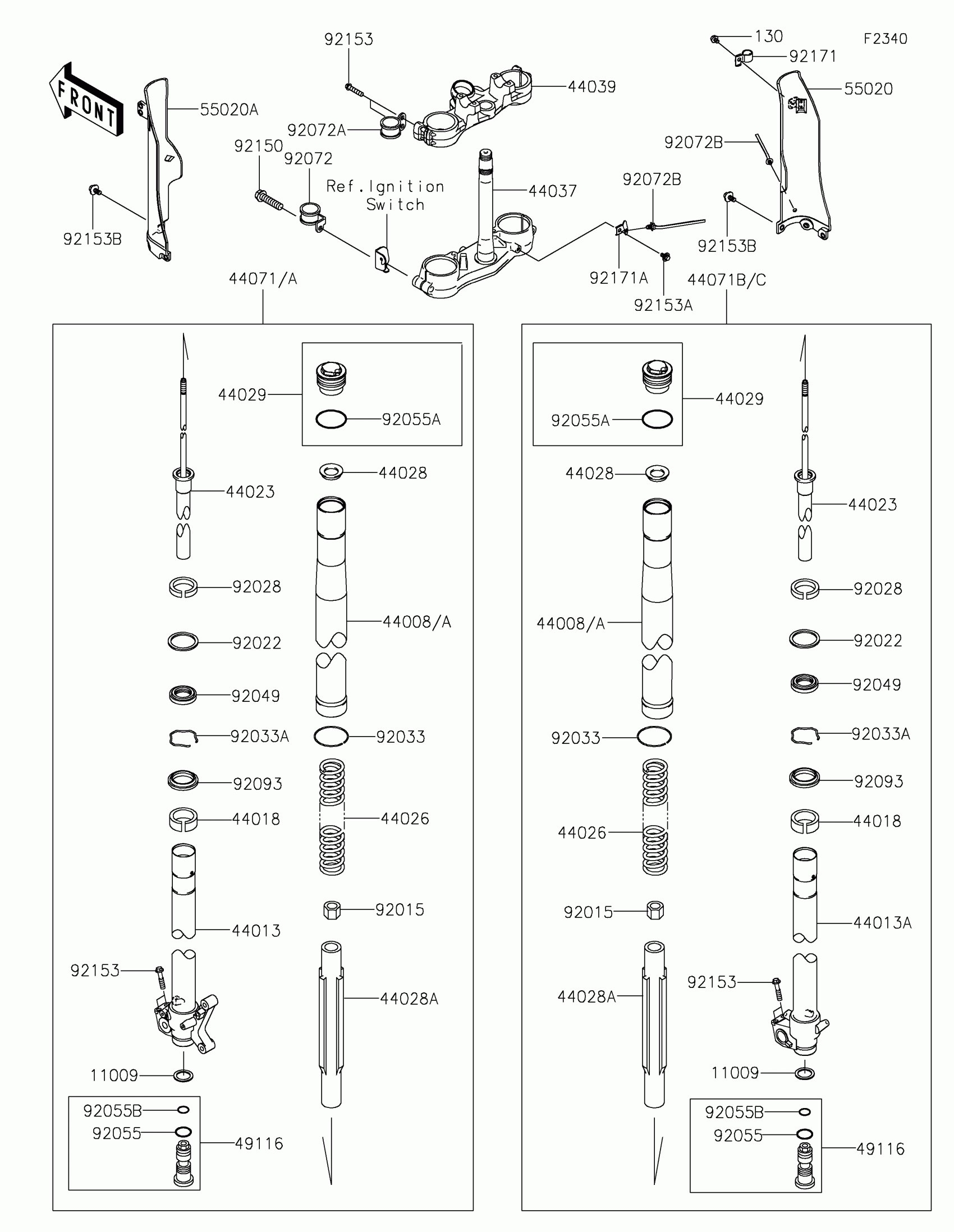

Kawasaki KLX®250 Front Fork Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$6.16

44008A

PIPE-FORK OUTER,SILVER

44008-0032-KX

$461.27

44013

PIPE-FORK INNER,LH,P.SILVER

44013-0090-458

$342.60

44013A

PIPE-FORK INNER,RH,P.SILVER

44013-0092-458

$342.60

44018

PISTON-FORK,INNER PIPE

44018-1056

$28.45

44023

CYLINDER-SET-FORK

44023-0062

$381.04

44026

SPRING-FRONT FORK

44026-0103

$99.25

44028

GUIDE-FORK SPRING

44028-1081

$12.12

44028A

GUIDE-FORK SPRING

44028-1084

$12.85

44029

SEAT-FORK SPRING,SILVER

44029-0010-KX

$117.08

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0078-18R

$597.50

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0059-18R

$246.87

44071

DAMPER-ASSY,FORK,LH,SILVER

44071-0431-22S

$956.21

44071B

DAMPER-ASSY,FORK,RH,SILVER

44071-0432-22S

$956.21

49116

VALVE-ASSY,FORK

49116-1168

$126.02

55020

GUARD,FORK,RH,EBONY

55020-0320-6C

$49.37

55020A

GUARD,FORK,LH,EBONY

55020-0484-6C

$49.37

92015

NUT

92015-1839

$19.64

92022

WASHER

92022-1299

$8.58

92028

BUSHING

92028-1581

$21.80

92033

RING-SNAP

92033-0080

$5.95

92033A

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL

92049-1373

$28.98

92055

RING-O

92055-1156

$1.42

92055A

RING-O,FORK,AIR TUBE

92055-1333

$6.00

92055B

RING-O,FORK VALVE

92055-1502

$7.45

92072

BAND

92072-1267

$20.92

92072A

BAND

92072-1283

$26.45

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92093

SEAL,FORK OUTER TUBE

92093-1342

$18.72

92150

BOLT,FLANGED,8X40

92150-1446

$12.68

92153

BOLT,8X40

92153-0020

$5.59

92153A

BOLT,6X12

92153-0503

$2.80

92153B

BOLT,FLANGED,6X14

92153-0936

$2.97

92171

CLAMP

92171-1833

$8.44

92171A

CLAMP,SPEED SENSOR HARNESS

92171-1905

$11.65

130

BOLT-FLANGED,6X8

130BB0608

$6.07
