Description

Price

41080

DISC,FR,SILVER

41080-0186-CM

$276.31

43044

HOLDER-COMP-CALIPER,FR

43044-0007

$156.82

43045

SHAFT-CALIPER

43045-1010

$20.77

43045A

SHAFT-CALIPER

43045-1052

$17.58

43048

PISTON-CALIPER

43048-0011

$68.90

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-0048-GN

$383.94

43082

PAD-ASSY-BRAKE

43082-0060

$68.09

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,DISC PLATE,8X15

92150-1811

$5.00

92160

DAMPER,FRONT WHEEL

92160-1449

$56.73

120

BOLT-SOCKET,8X40

120CA0840

$2.80

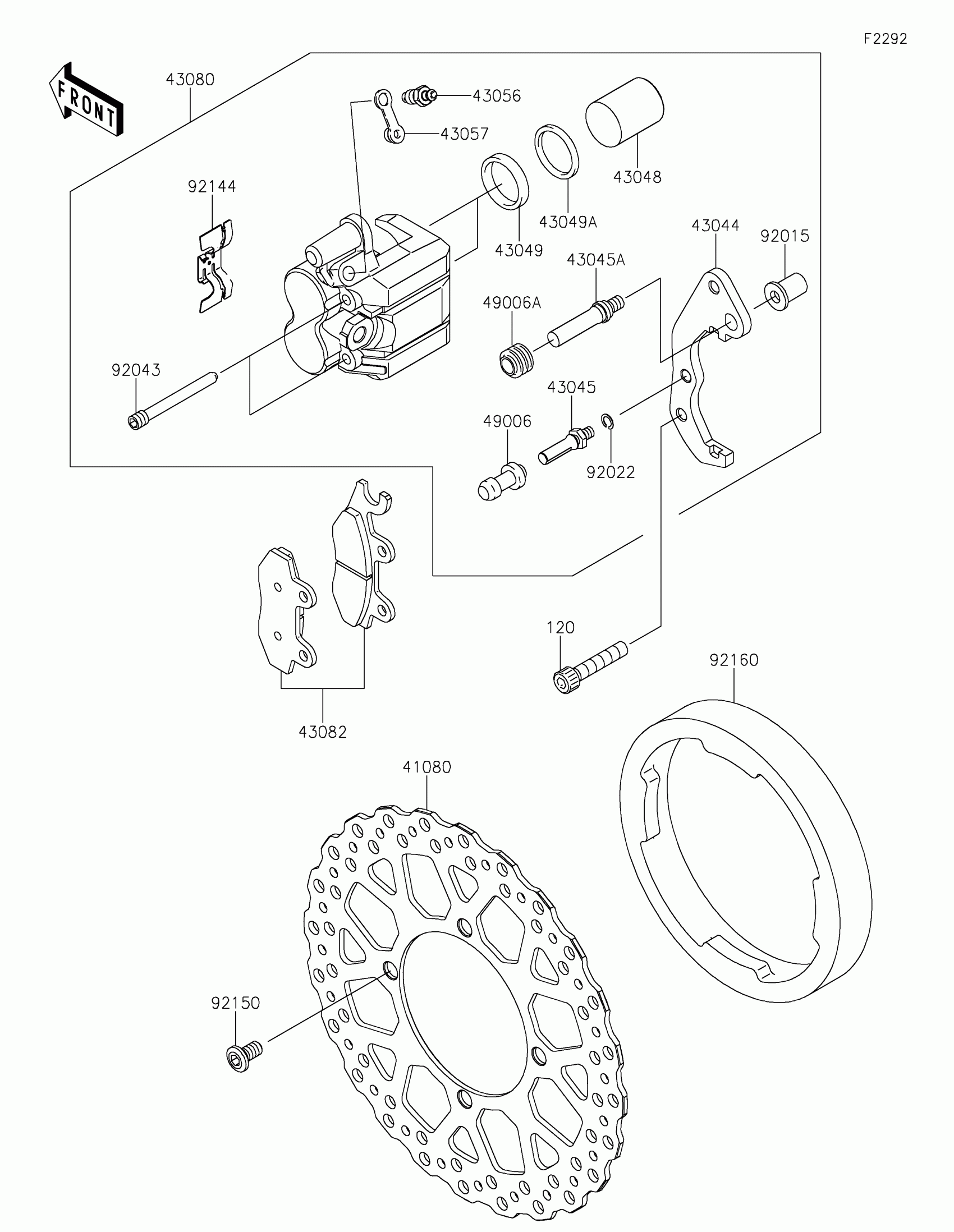

Kawasaki KLX®250 Front Brake Diagram

DISC,FR,SILVER

HOLDER-COMP-CALIPER,FR

SHAFT-CALIPER

SHAFT-CALIPER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,LH,SILVER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

NUT

WASHER,WAVE

PIN,HANGER

SPRING,PAD

BOLT,DISC PLATE,8X15

DAMPER,FRONT WHEEL

BOLT-SOCKET,8X40
