Description

Price

11012

CAP

11012-1369

$5.46

11055

BRACKET,SENSOR

11055-1174

$9.89

12053

GUIDE-CHAIN

12053-0001

$10.36

13091

HOLDER

13091-1875

$7.22

32059

BRACKET-SWITCH,BRAKE

32059-1117

$9.91

32097

CASE-BATTERY

32097-0001

$57.43

55020

GUARD,ENGINE

55020-1456

$94.03

56008

BAG,TOOL,BLACK

56008-0037-MA

$194.02

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR,CHAIN ROLLER

92027-1670

$7.34

92072

BAND,L=140

92072-1293

$7.11

92122

ROLLER,CHAIN GUIDE

92122-1153

$10.65

92150

BOLT,6X12

92150-1435

$4.31

92150A

BOLT,FLANGED,6X22

92150-1481

$4.31

92150B

BOLT,FLANGED,6X16

92150-1506

$5.00

92152

COLLAR

92152-0604

$8.68

92153

BOLT,6X45

92153-0003

$1.86

92160

DAMPER

92160-1396

$5.52

92160A

DAMPER

92160-1565

$5.79

92170

CLAMP,HARNESS

92170-1423

$17.22

92171

CLAMP,HARNESS,LH

92171-1775

$8.44

92172

SCREW,6X14

92172-0004

$2.80

92173

CLAMP,HARNESS

92173-1368

$6.26

92173A

CLAMP,WIRE

92173-1742

$7.50

92210

NUT,FLANGED,6MM

92210-0630

$2.00

130

BOLT-FLANGED,8X40

130BA0840

$1.98

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

186

BOLT-UPSET-WP,6X20

186BA0620

$2.55

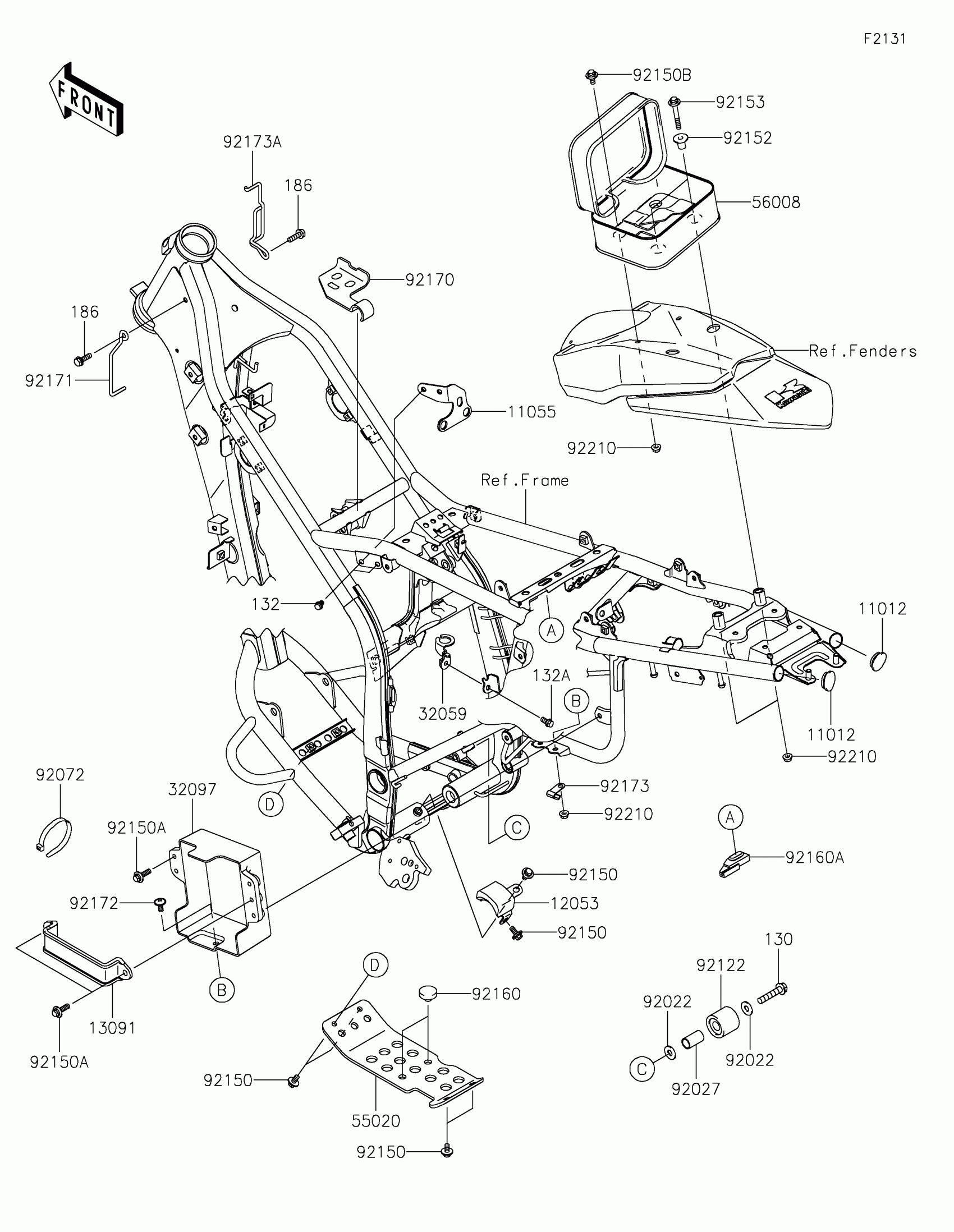

Kawasaki KLX®250 Frame Fittings Diagram

CAP

BRACKET,SENSOR

GUIDE-CHAIN

HOLDER

BRACKET-SWITCH,BRAKE

CASE-BATTERY

GUARD,ENGINE

BAG,TOOL,BLACK

WASHER,8.5X20X1.6

COLLAR,CHAIN ROLLER

BAND,L=140

ROLLER,CHAIN GUIDE

BOLT,6X12

BOLT,FLANGED,6X22

BOLT,FLANGED,6X16

COLLAR

BOLT,6X45

DAMPER

DAMPER

CLAMP,HARNESS

CLAMP,HARNESS,LH

SCREW,6X14

CLAMP,HARNESS

CLAMP,WIRE

NUT,FLANGED,6MM

BOLT-FLANGED,8X40

BOLT-FLANGED-SMALL,6X8

BOLT-FLANGED-SMALL,6X12

BOLT-UPSET-WP,6X20
