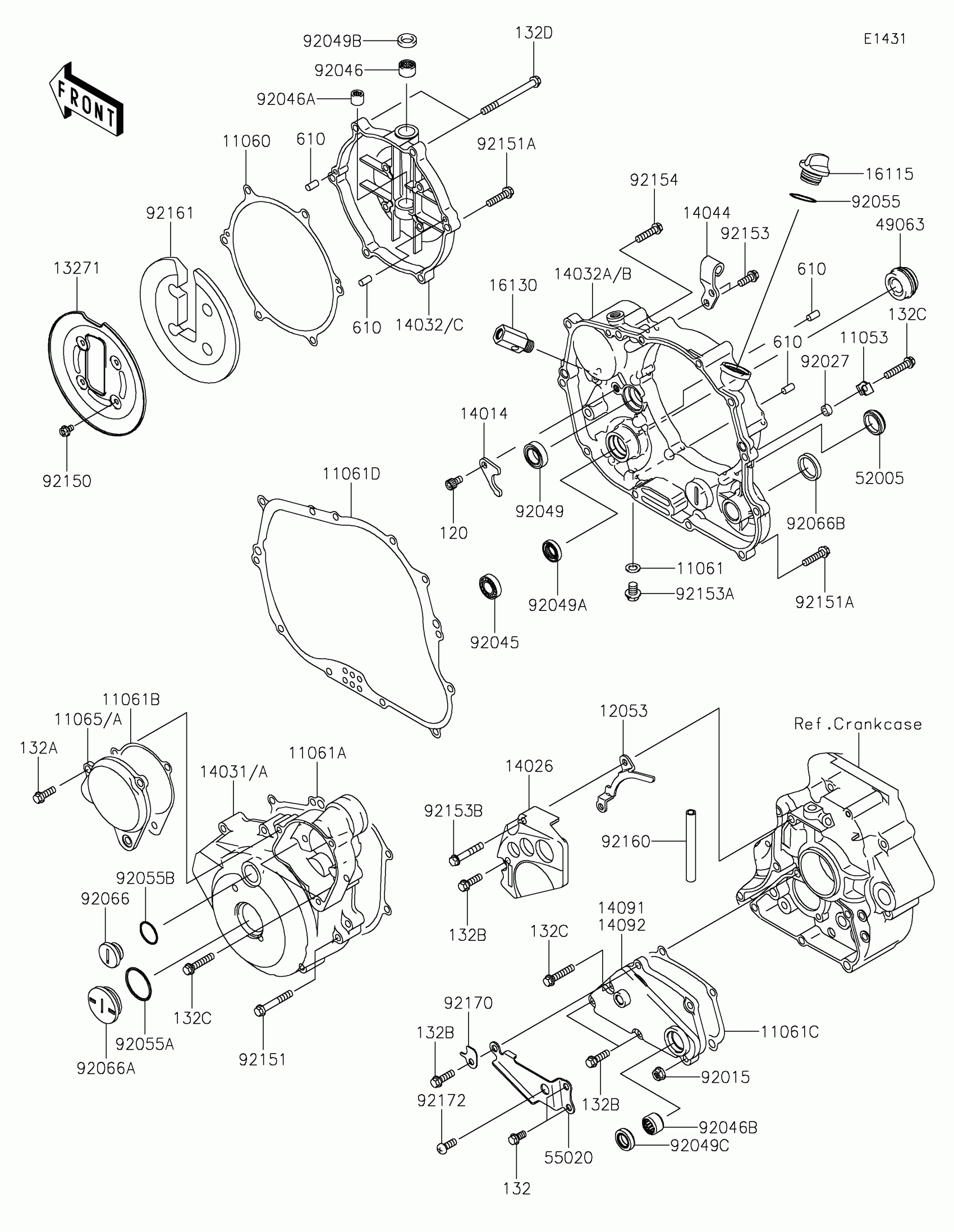

Kawasaki KLX®250 Engine Cover(s) Diagram
#
11053
BRACKET
11053-1656
$8.36
11060
GASKET,CLUTCH COVER OUTER
11060-1325
$15.87
11061
GASKET,8.2X14X1.0
11061-0418
$5.89
11061A
GASKET,GENERATOR COVER
11061-0891
$20.77
11061B
GASKET,CAP
11061-0892
$10.08
11061C
GASKET,TRANSMISSION COVER
11061-0897
$14.10
11061D
GASKET,CLUTCH COVER INNER
11061-0923
$41.13
11065
CAP,GENERATOR COVER
11065-0274
$28.46
12053
GUIDE-CHAIN
12053-1337
$12.96
13271
PLATE
13271-1567
$46.32
14014
PLATE-POSITION
14014-1062
$8.10
14026
COVER-CHAIN
14026-0027
$30.45
14031
COVER-GENERATOR
14031-0110
$187.73
14032
COVER-CLUTCH,OUTER
14032-0004
$54.98
14032A
COVER-CLUTCH,INNER
14032-0005
$165.70
14044
HOLDER-CABLE
14044-1078
$7.45
14091
COVER
14091-0019
$51.98
16115
CAP-OIL FILLER
16115-1053
$12.20
16130
VALVE-ASSY-RELIEF
16130-0002
$25.48
49063
SEAL-MECHANICAL
49063-1055
$20.06
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
55020
GUARD,TRANSMISSION COVER
55020-1460
$14.94
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92027
COLLAR,6.5X10.5X4.5
92027-1885
$6.22
92045
BEARING-BALL,6901
92045-1246
$29.76
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92046A
BEARING-NEEDLE
92046-0042
$15.25
92046B
BEARING-NEEDLE,HK1312
92046-1148
$18.74
92049
SEAL-OIL
92049-1191
$24.41
92049A
SEAL-OIL,SC 12X22X5
92049-1228
$9.28
92049B
SEAL-OIL,AG0353-F0
92049-1262
$6.57
92049C
SEAL-OIL
92049-1559
$3.54
92055
RING-O
92055-012
$1.01
92055A
RING-O,27.7X2.4
92055-091
$6.22
92055B
RING-O,20X2
92055-1146
$8.58
92066
PLUG,COVER
92066-1397
$14.76
92066A
PLUG
92066-1404
$13.63
92066B
PLUG,RCA297
92066-1411
$14.04
92150
BOLT,5X8
92150-1406
$3.94
92151
BOLT,6X40
92151-1131
$4.87
92151A
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92153
BOLT,6X16
92153-0695
$3.07
92153A
BOLT,FLANGED,8X10
92153-1342
$3.39
92153B
BOLT,FLANGED,6X35
92153-1351
$6.75
92154
BOLT,FLANGED,6X25
92154-0490
$1.94
92160
DAMPER
92160-1866
$3.35
92161
DAMPER
92161-1182
$46.32
92170
CLAMP
92170-1785
$3.09
92172
SCREW,6X16
92172-0223
$2.15
120
BOLT-SOCKET,6X10
120CA0610
$1.71
132
BOLT-FLANGED-SMALL,6X12
132BC0612
$2.15
132A
BOLT-FLANGED-SMALL,6X18
132BC0618
$2.15
132B
BOLT-FLANGED-SMALL,6X20
132BC0620
$1.34
132C
BOLT-FLANGED-SMALL,6X30
132BC0630
$2.15
132D
BOLT-FLANGED-SMALL,6X70
132BC0670
$3.90
610
ROLLER,4X8
610A0408
$4.31
