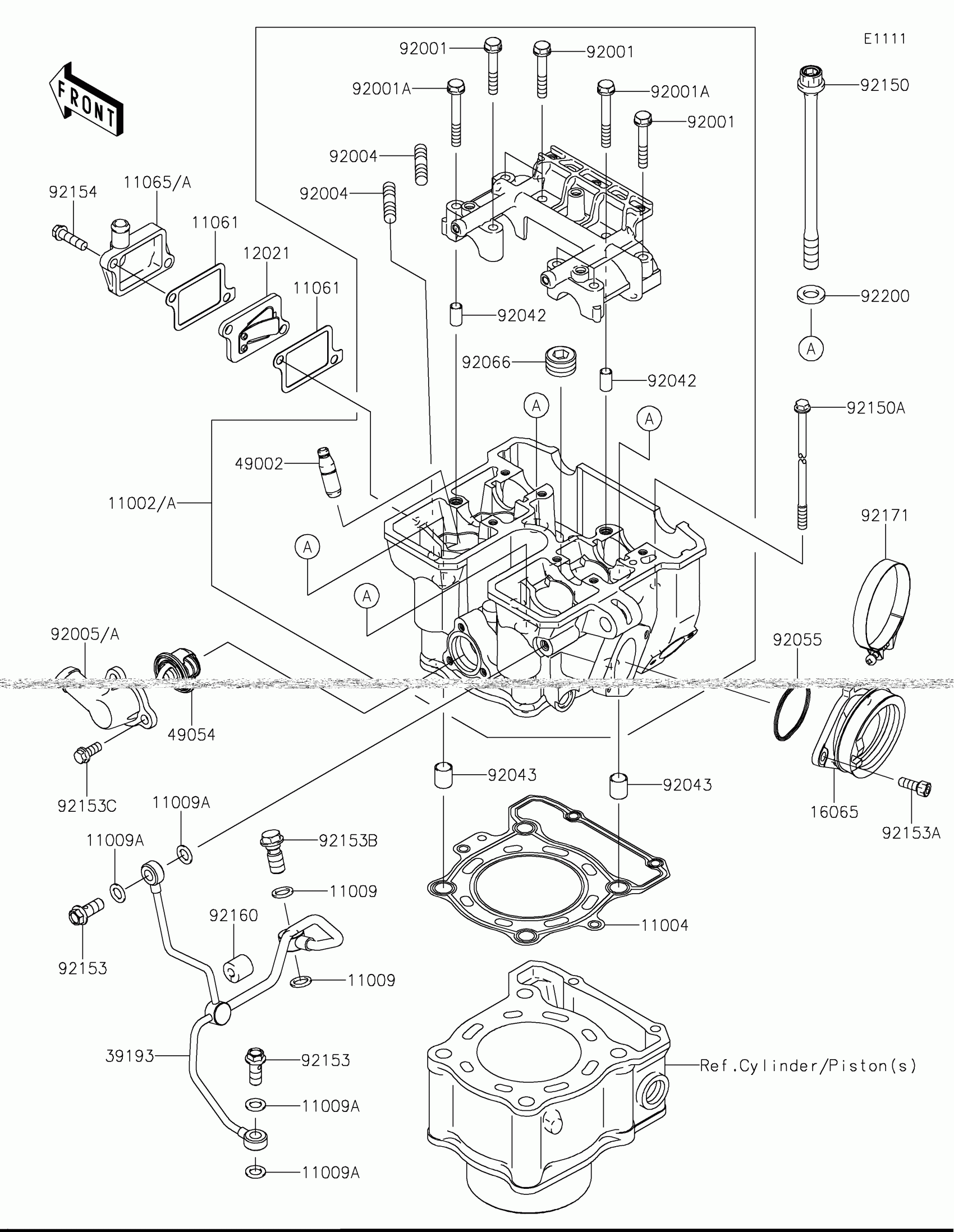

Kawasaki KLX®250 Cylinder Head Diagram
#
Description
Price
11002
HEAD-ASSY-CYLINDER
11002-0071
$901.54
11004
GASKET-HEAD
11004-1249
$46.85
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
11009A
GASKET,8.2X14X1.0
11009-1344
$3.17
11061
GASKET,REED VALVE
11061-0890
$3.96
11065
CAP
11065-0293
$27.10
12021
VALVE-ASSY-REED
12021-0049
$48.19
16065
HOLDER-CARBURETOR
16065-0045
$51.80
39193
PIPE-OIL
39193-0045
$111.60
49002
GUIDE-VALVE
49002-1126
$34.20
49054
THERMOSTAT
49054-1053
$54.56
92001
BOLT,FLANGED,6X38
92001-1105
$4.69
92001A
BOLT,6X46
92001-1872
$4.31
92004
STUD
92004-0050
$3.62
92005
FITTING
92005-0107
$31.84
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O
92055-1255
$18.57
92066
PLUG,PT1/2X12.5
92066-0002
$8.98
92150
BOLT,10X165
92150-1368
$18.89
92150A
BOLT,6X135
92150-1552
$7.34
92153
BOLT,BANJO,8X20
92153-0651
$11.20
92153A
BOLT,SOCKET,6X16
92153-1344
$2.97
92153B
BOLT,BANJO,10X23
92153-1345
$10.30
92153C
BOLT
92153-1805
$2.61
92154
BOLT,FLANGED,6X22
92154-0504
$1.94
92160
DAMPER,6.3X15X14
92160-1523
$2.70
92171
CLAMP
92171-0643
$12.29
92200
WASHER,10.5X19X2.3
92200-1042
$3.92
