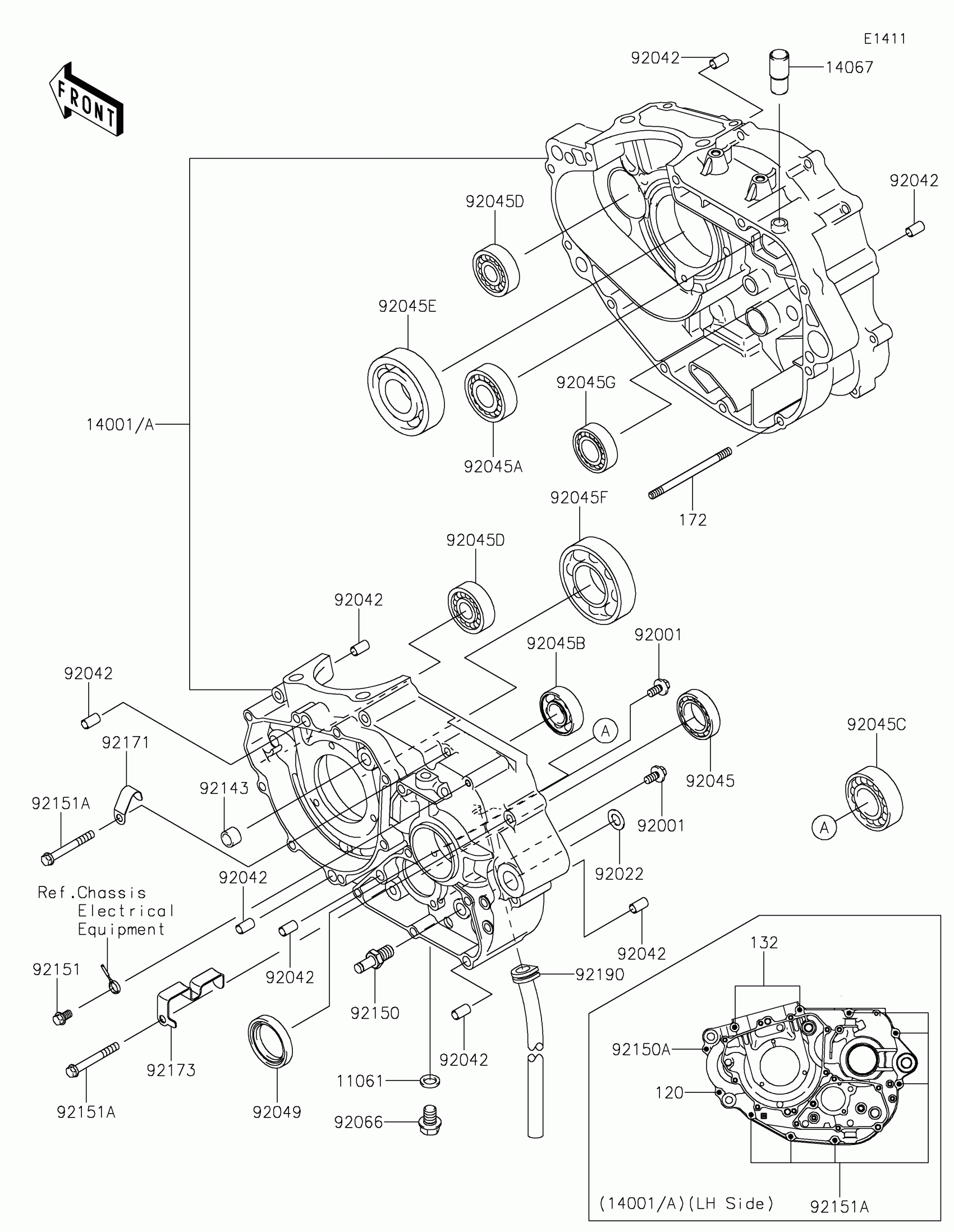

Kawasaki KLX®250 Crankcase Diagram
#
Description
Price
11061
GASKET,10.5X16X2
11061-0222
$5.60
14001
SET-CRANKCASE
14001-0138
$782.68
14067
FITTING,BREATHER
14067-006
$21.09
92001
BOLT,W/WASHER,6X14
92001-1829
$3.92
92022
WASHER,10.2X18X1.0,SK5
92022-1415
$4.69
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92045
BEARING-BALL,#6905
92045-036
$27.88
92045A
BEARING-BALL,TMB204 JR
92045-1041
$32.24
92045B
BEARING-BALL,TMB203LU
92045-1287
$26.30
92045C
BEARING-BALL,TMB205LU
92045-1288
$34.71
92045D
BEARING-BALL,TMB302JR2
92045-1346
$18.83
92045E
BEARING-BALL,TMB306JR2
92045-1347
$40.12
92045F
BEARING-BALL,3TM-6207CJR2
92045-1348
$38.39
92045G
BEARING-BALL,DG204012
92045-1414
$28.55
92049
SEAL-OIL,TC32457
92049-1577
$8.60
92066
PLUG,DRAIN
92066-0143
$3.67
92143
COLLAR
92143-1263
$4.87
92150
BOLT,RETURN SPRING
92150-1803
$9.51
92150A
BOLT,SOCKET,6X35
92150-1875
$5.29
92151
BOLT,FLANGED,6X10
92151-1233
$1.97
92151A
BOLT,6X50
92151-1234
$2.46
92171
CLAMP
92171-1918
$8.74
92173
CLAMP
92173-1715
$7.60
92190
TUBE
92190-1493
$11.66
120
BOLT-SOCKET,6X50
120CC0650
$2.55
132
BOLT-FLANGED-SMALL,6X70
132BC0670
$3.90
172
BOLT-STUD,6X80
172BA0680
$2.82
