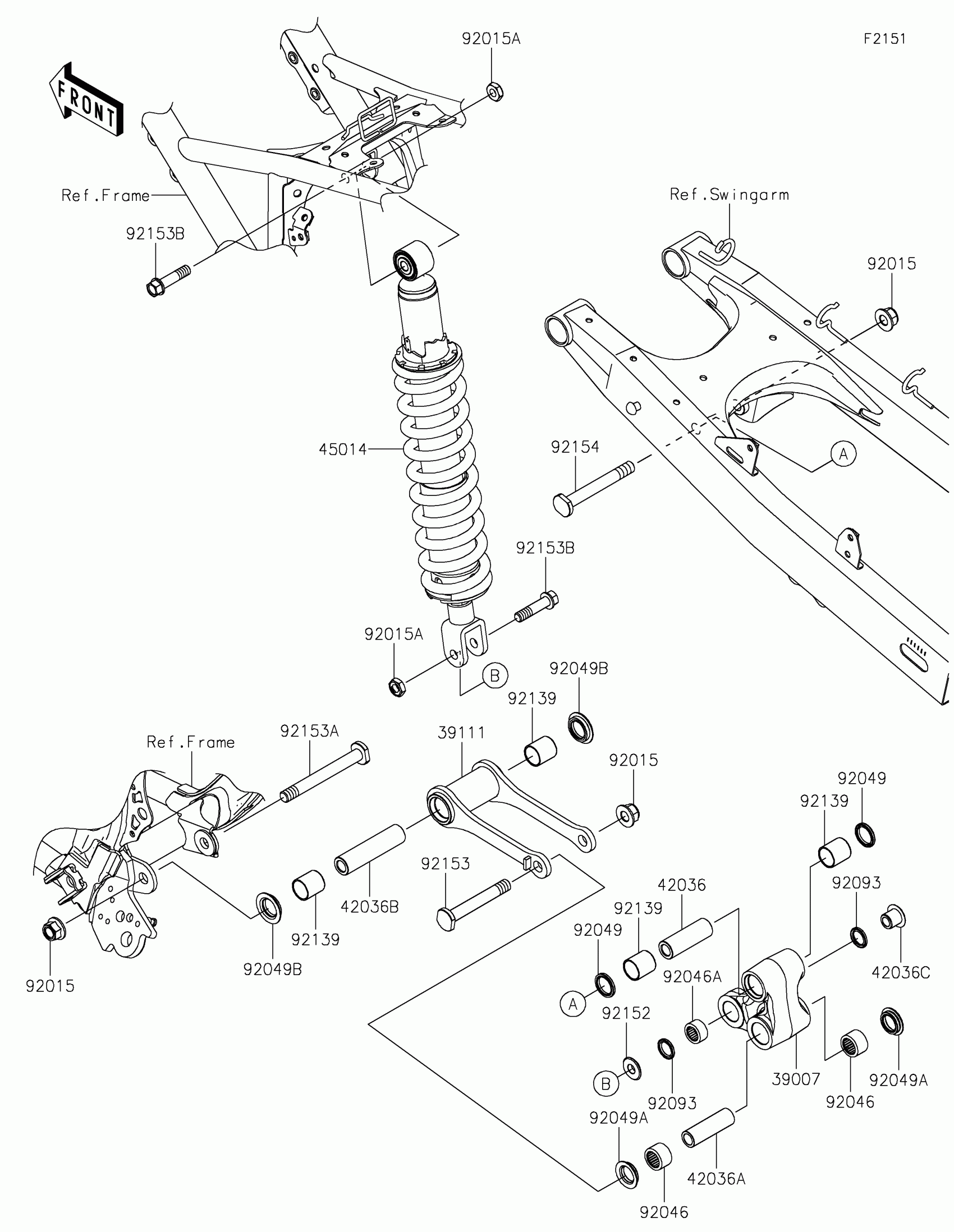

Find the part on the Suspension/shock Absorber diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLX®230SM Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0467

1

$135.13

In stock

39111

ROD-TIE

39111-0385

1

$96.67

In stock

42036

SLEEVE,12.1X20X58

42036-0046

1

$20.63

In stock

42036A

SLEEVE,12.1X18X58

42036-0827

1

$20.63

In stock

42036B

SLEEVE,12.1X20X82.6

42036-0857

1

$30.16

In stock

42036C

SLEEVE

42036-1351

1

$8.94

In stock

45014

SHOCKABSORBER

45014-0809

1

$533.44

In stock

92015

1

$7.04

In stock

92015A

NUT,LOCK,10MM

92015-1962

1

$4.83

In stock

92046

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92049

SEAL-OIL,SDO 20 26 3

92049-0135

1
Out of stock

92049A

SEAL-OIL,18X30X5.7

92049-0813

1

$9.76

In stock

92049B

SEAL-OIL

92049-0849

1

$9.02

In stock

92093

SEAL,SO 16 22 2.5

92093-0155

1

$7.46

In stock

92139

BUSHING,20X23X24

92139-0940

1

$3.64

In stock

92152

COLLAR

92152-1139

1

$7.04

In stock

92153

BOLT,12X85

92153-1828

1

$19.14

In stock

92153A

BOLT,12X108

92153-1829

1

$22.46

In stock

92153B

BOLT,FLANGED,10X42

92153-1957

1

$3.11

In stock

92154

BOLT,12X95

92154-1185

1

$19.14

In stock
