2023 Kawasaki KLX®230SM Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

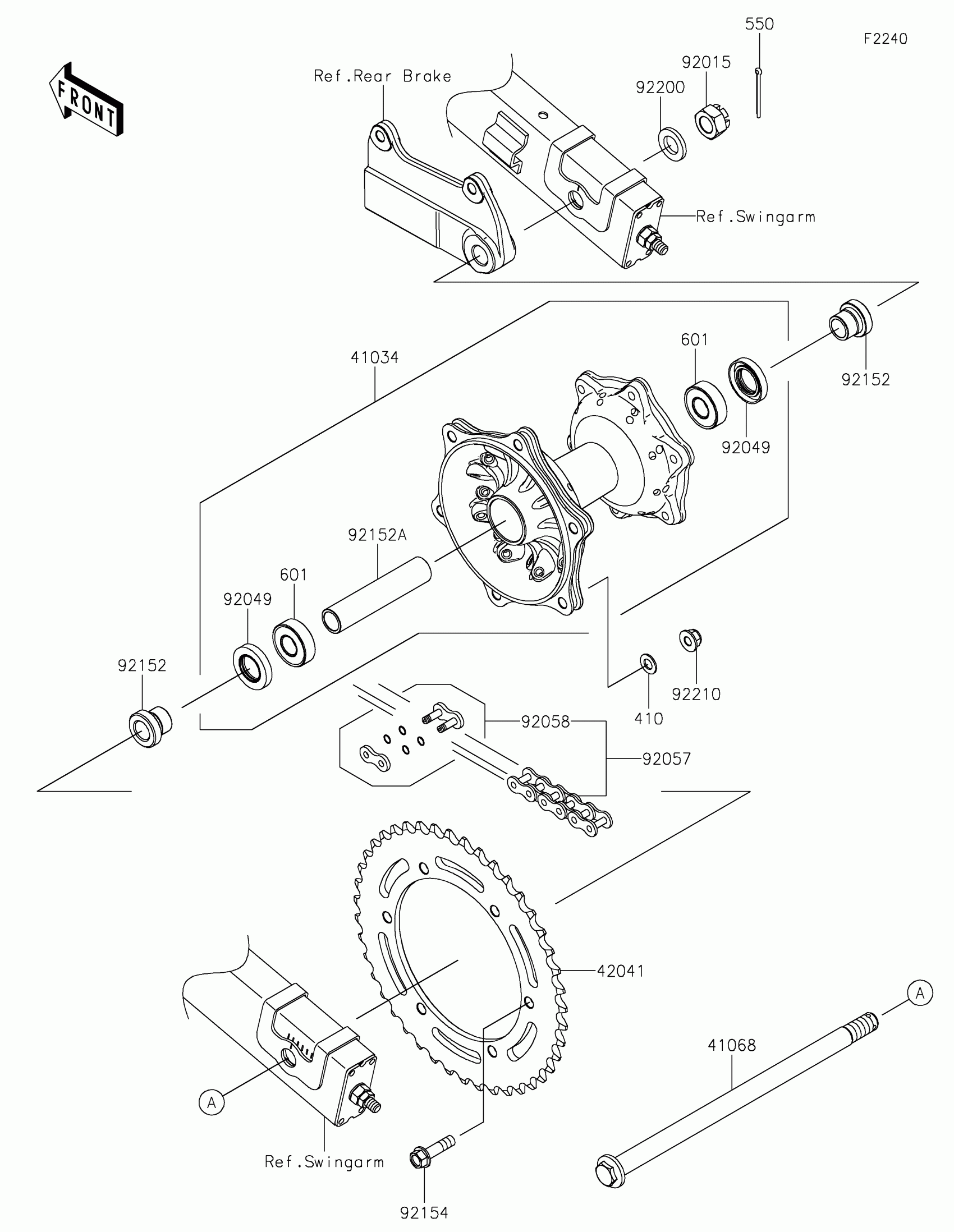

2023 Kawasaki KLX®230SM Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR

41034-0612

1
Out of stock

41068

AXLE,RR,15X275

41068-0648

1
Out of stock

42041

SPROCKET-HUB,43T

42041-0190

1
Out of stock

92015

NUT,CASTLE,14MM

92015-1765

1
Out of stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92057

CHAIN,DRIVE,520VF2X106L

92057-0800

1
Out of stock

92058

JOINT-CHAIN

92058-0069

1
Out of stock

92152

COLLAR

92152-2545

1
Out of stock

92152A

COLLAR,15.2X20X96.2

92152-2546

1
Out of stock

92154

BOLT,FLANGED,8X30

92154-3918

1
Out of stock

92200

WASHER,14.2X26X3.2

92200-1428

1
Out of stock

92210

NUT,8MM

92210-0570

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock

550

PIN-COTTER,3.0X35

550AA3035

1
Out of stock

601

BEARING-BALL

601B6202UU

1
Out of stock
