2023 Kawasaki KLX®230SM Gear Change Drum/shift Fork Diagram

← All diagrams

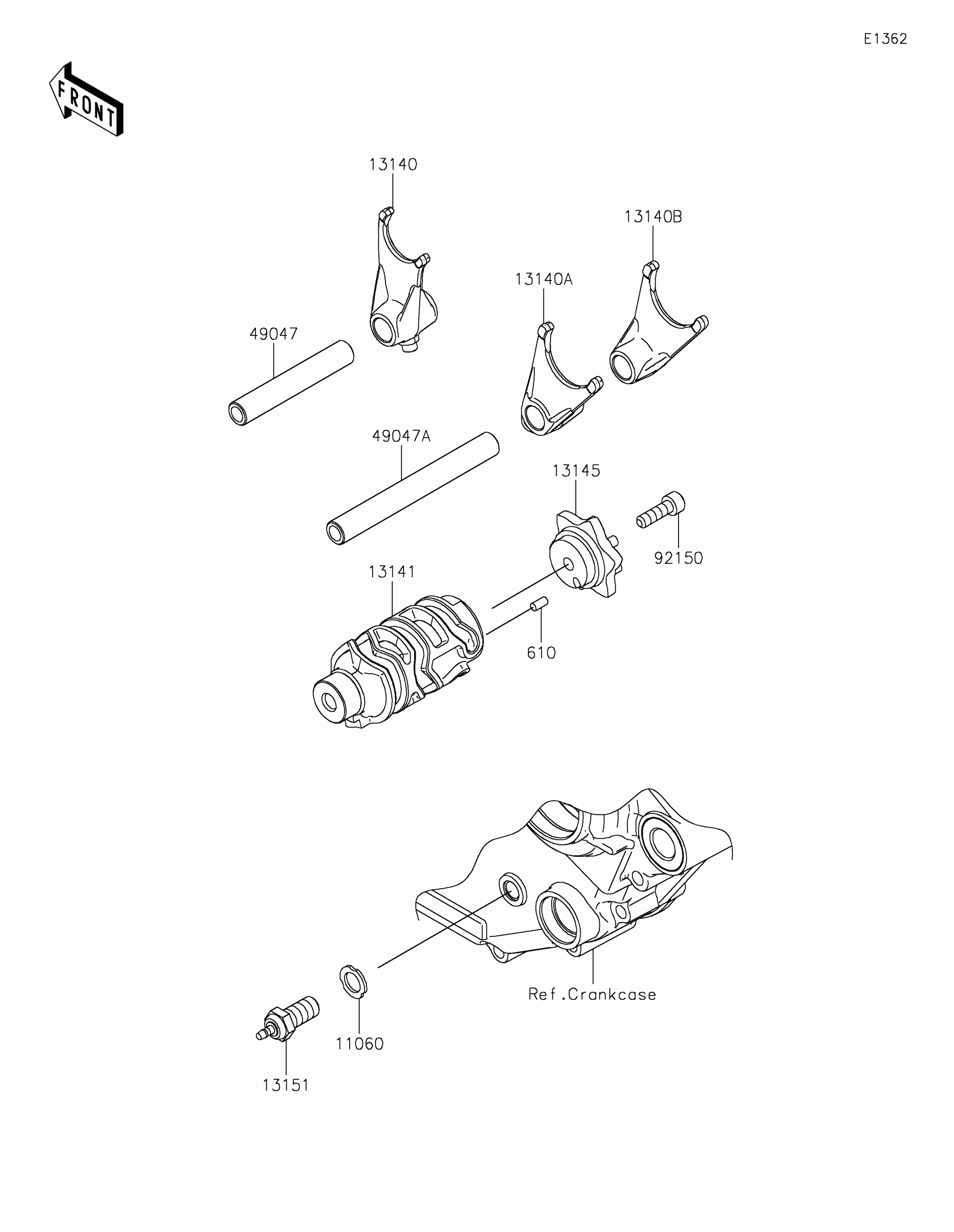

Find the part on the Gear Change Drum/shift Fork diagram for your 2023 Kawasaki KLX®230SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLX®230SM Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,10.5X16X1.5

11060-1676

1

$4.39

In stock

13140

FORK-SHIFT,INPUT

13140-0678

1

$60.05

In stock

13140A

1

$60.05

In stock

13140B

1

$60.05

In stock

13141

DRUM-CHANGE

13141-0602

1

$70.38

In stock

13145

CAM-CHANGE DRUM

13145-0574

1

$68.99

In stock

13151

SWITCH-COMP,NEUTRAL

13151-0589

1

$30.06

In stock

49047

ROD-SHIFT,INPUT

49047-0642

1

$10.39

In stock

49047A

ROD-SHIFT,OUTPUT

49047-0643

1

$12.32

In stock

92150

BOLT,SOCKET,6X20

92150-1880

1

$3.56

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock
