Transmission

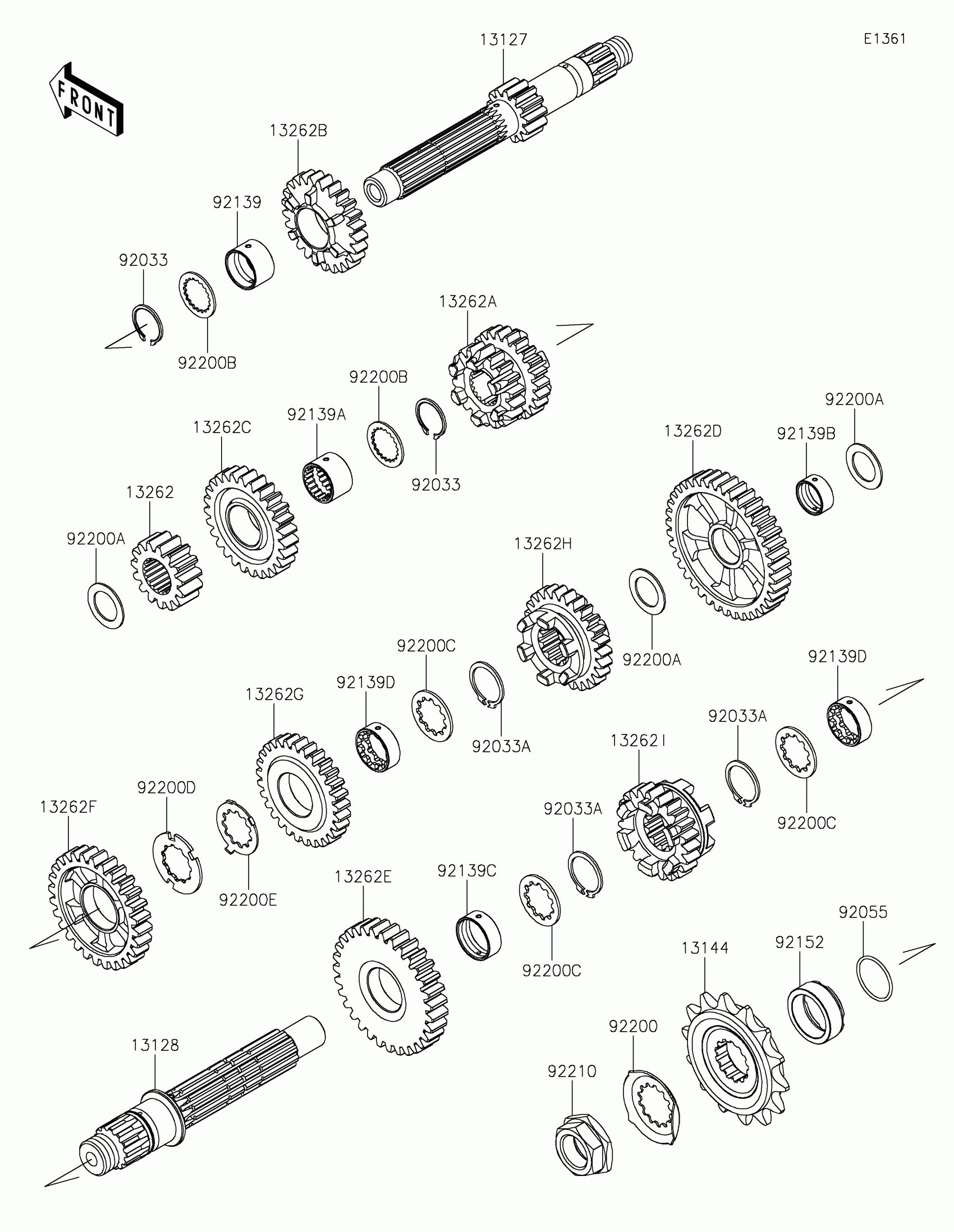

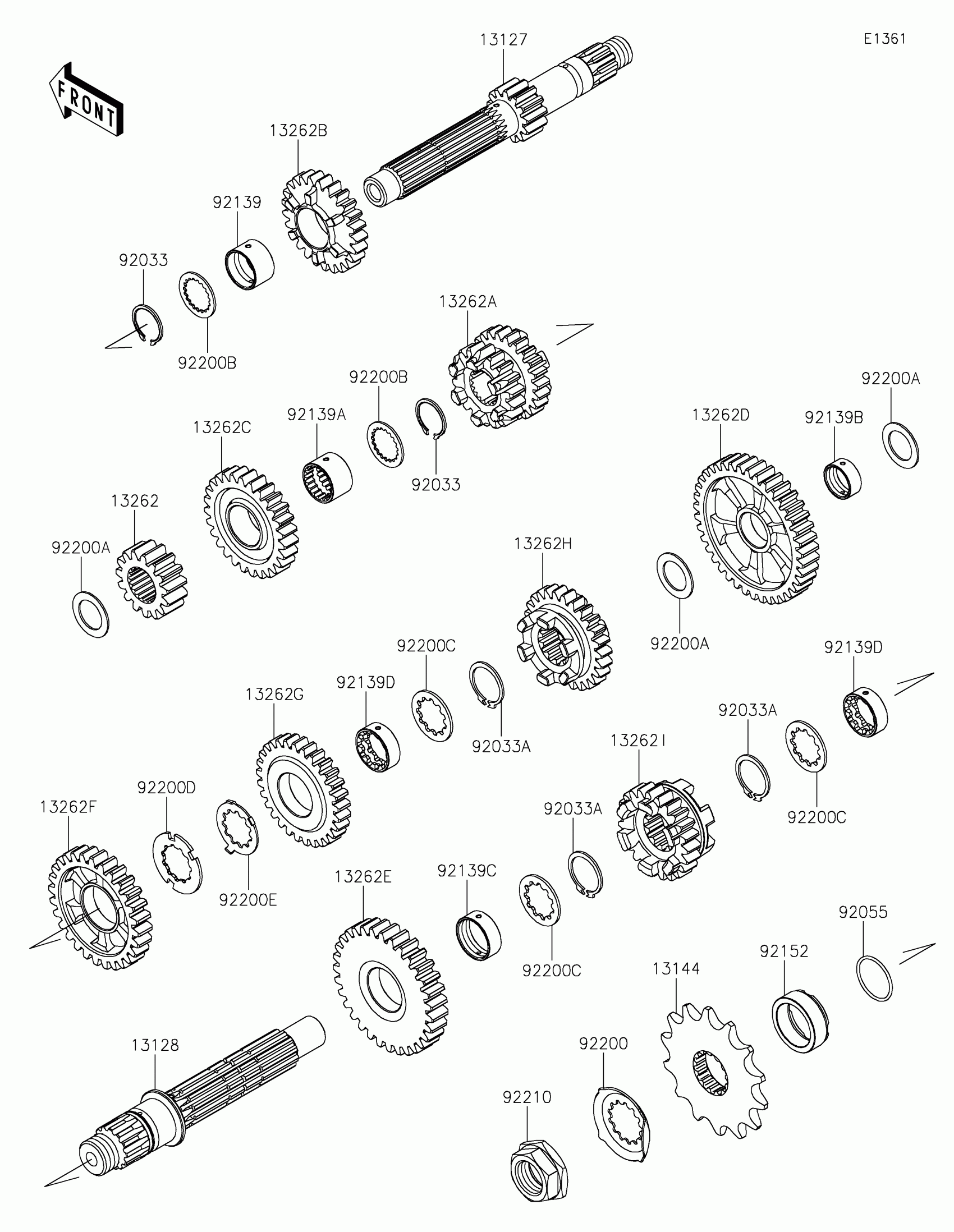

Kawasaki KLX®230SM ABS Transmission Diagram
#
Description
Price
13127
SHAFT-TRANSMISSION INPUT
13127-0698
$236.71
13128
SHAFT-TRANSMISSION OUTPUT
13128-0712
$250.13
13144
SPROCKET-OUTPUT,14T
13144-0577
$52.93
13262
GEAR,INPUT 2ND,15T
13262-1368
$56.38
13262A
GEAR,INPUT 3RD&4TH,18T&23T
13262-1369
$134.87
13262B
GEAR,INPUT 5TH,25T
13262-1370
$79.55
13262C
GEAR,INPUT 6TH,27T
13262-1371
$82.47
13262D
GEAR,OUTPUT LOW,39T
13262-1372
$47.25
13262E
GEAR,OUTPUT 2ND,31T
13262-1373
$134.87
13262F
GEAR,OUTPUT 3RD,28T
13262-1374
$113.18
13262G
GEAR,OUTPUT 4TH,29T
13262-1375
$111.63
13262H
GEAR,OUTPUT 5TH,26T
13262-1376
$97.63
13262I
GEAR,OUTPUT 6TH,23T
13262-1377
$106.93
92033
RING-SNAP
92033-0798
$3.51
92033A
RING-SNAP
92033-0799
$3.39
92055
RING-O,21.5X1.5
92055-1787
$4.29
92139
BUSHING,20X23X14
92139-0917
$18.38
92139A
BUSHING,17.9X23X14.5
92139-0918
$18.38
92139B
BUSHING,17X20X8.5
92139-0919
$18.38
92139C
BUSHING,22X25X8.5
92139-0920
$18.38
92139D
BUSHING,18.7X25X8.6
92139-0921
$18.38
92152
COLLAR
92152-1350
$26.84
92200
WASHER
92200-1720
$3.63
92200A
WASHER,17.2X26X1
92200-2223
$6.69
92200B
WASHER,20X26X1.2
92200-2224
$6.69
92200C
WASHER,22.3X29X1.5
92200-2226
$6.69
92200D
WASHER
92200-2227
$6.69
92200E
WASHER
92200-2228
$6.69
92210
NUT,20MM
92210-0850
$14.39
