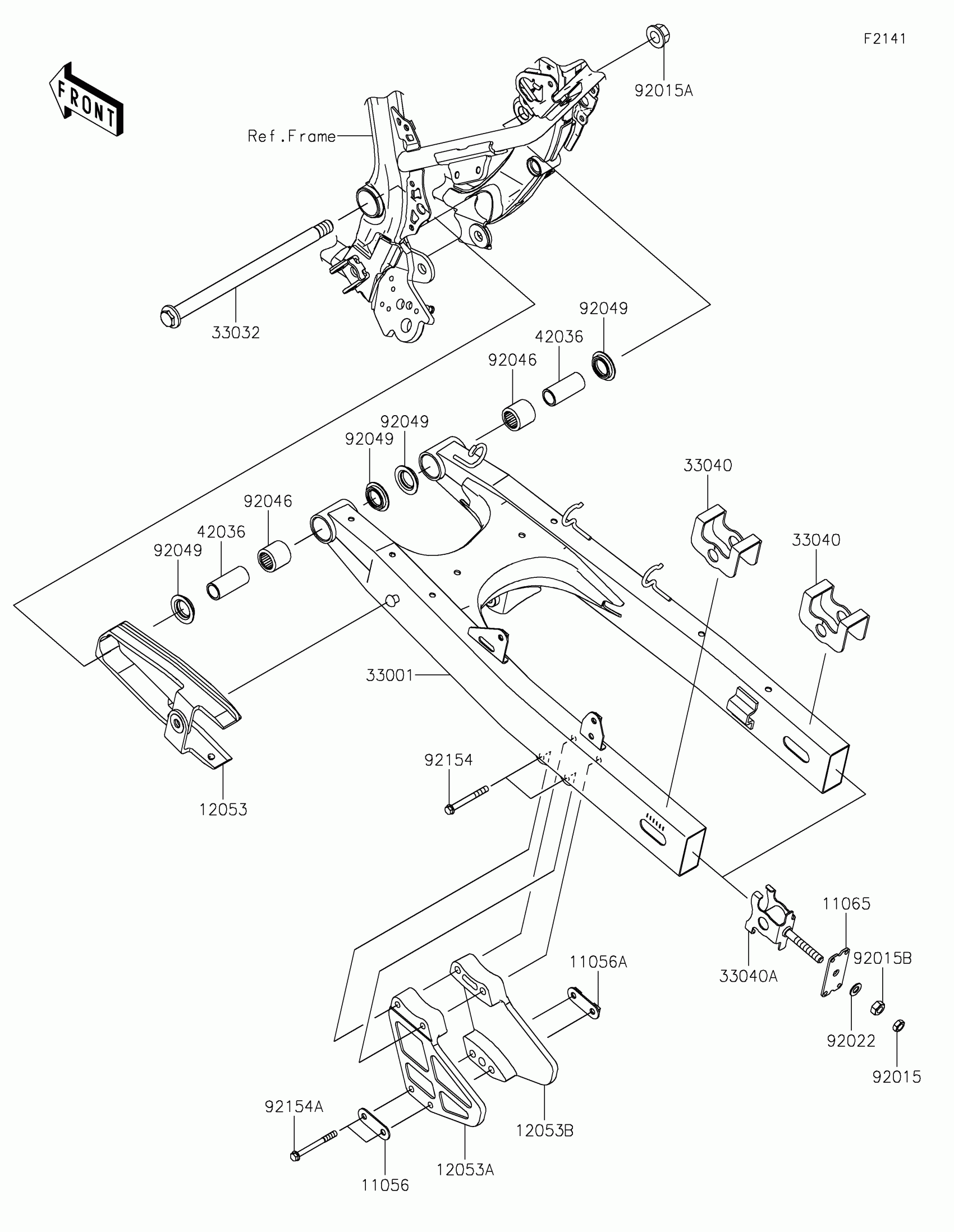

Kawasaki KLX®230SM ABS Swingarm Diagram

Description

Price

11056

BRACKET

11056-2395

$1.19

11056A

BRACKET,WITH NUT

11056-2396

$2.00

11065

CAP

11065-1309

$4.80

12053

GUIDE-CHAIN,FR

12053-0286

$21.15

12053A

GUIDE-CHAIN,RR,OUTSIDE

12053-0372

$10.75

12053B

GUIDE-CHAIN,RR,INSIDE

12053-0373

$9.83

33001

ARM-COMP-SWING,F.S.BLACK

33001-0712-18R

$546.33

33032

SHAFT-SWING ARM,14X243

33032-0061

$42.29

33040

ADJUSTER-CHAIN,OUTSIDE

33040-0092

$10.43

33040A

ADJUSTER-CHAIN,INSIDE

33040-0093

$33.49

42036

SLEEVE,15X20X46

42036-0831

$15.43

92015

NUT,8MM

92015-1364

$3.92

92015A

NUT,8MM

92015-1658

$4.87

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL

92049-0849

$9.28

92154

BOLT,FLANGED,6X55

92154-1190

$2.80

92154A

BOLT,FLANGED,6X60

92154-2762

$3.57

92210

NUT,14MM

92210-1990

$9.53
