Description

Price

13193

CLUTCH-ASSY-ONEWAY

13193-0014

$119.24

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0900

$147.32

13280

HOLDER

13280-0710

$14.49

14093

COVER

14093-0199

$18.77

16073

INSULATOR

16073-0053

$11.93

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0783

$318.20

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD

26011-0890

$30.12

27010

SWITCH

27010-0754

$135.59

39076

LIMITER,STARTER IDLE GEAR

39076-0020

$183.19

59051

GEAR-SPUR,IDLER

59051-0824

$57.70

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92048

RACE,ONEWAY CLUTCH

92048-0030

$54.21

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0024

$10.21

92150

BOLT,6X10

92150-1577

$3.60

92153

BOLT

92153-1850

$11.93

92153A

BOLT

92153-1866

$4.65

92154

BOLT,FLANGED,6X30

92154-1773

$1.19

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92200A

WASHER,10.2X20X0.5

92200-1976

$3.94

92210

NUT,6MM

92210-0188

$2.15

120

BOLT-SOCKET,6X12

120CB0612

$2.49

461

WASHER-SPRING,6MM

461DB0600

$0.65

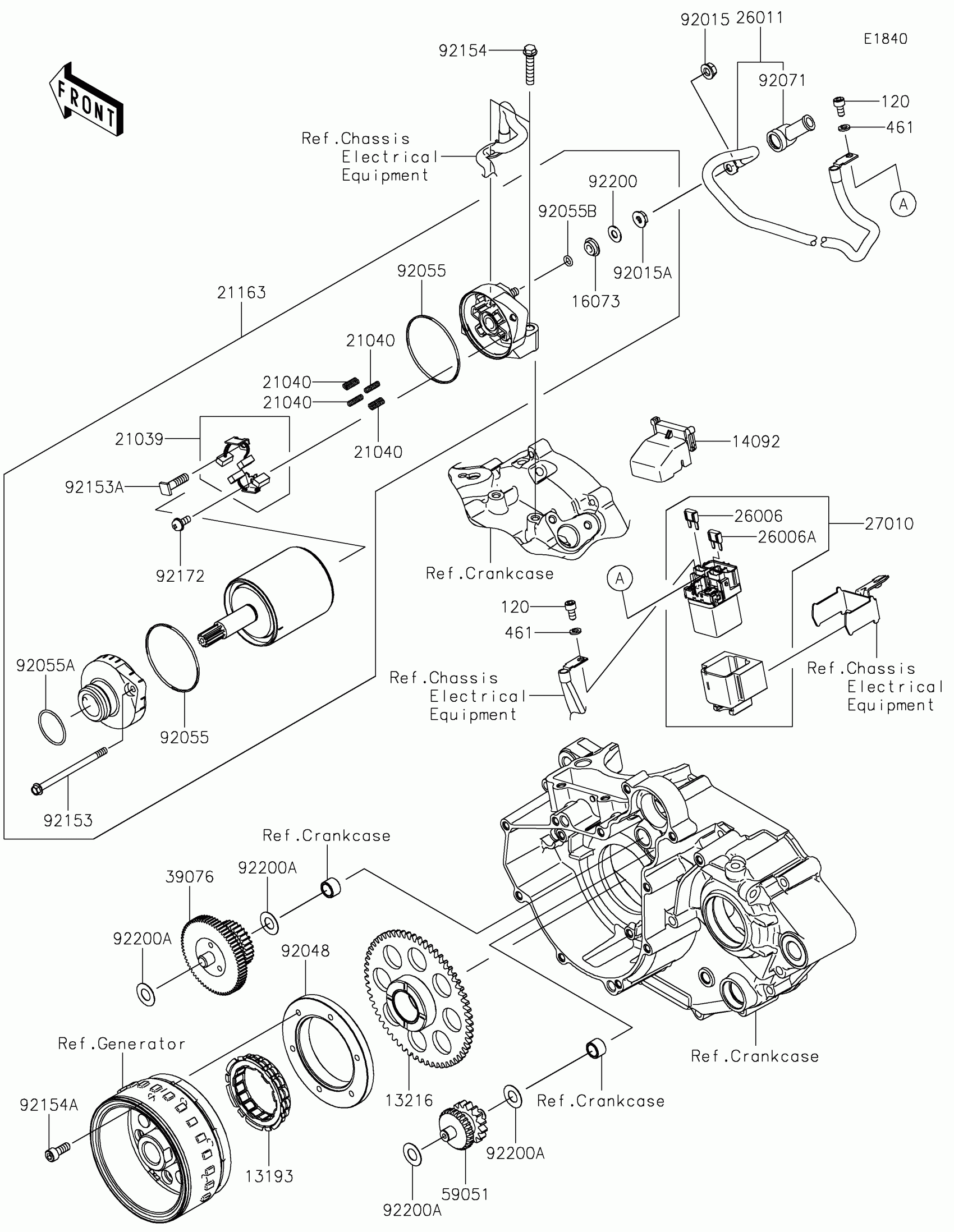

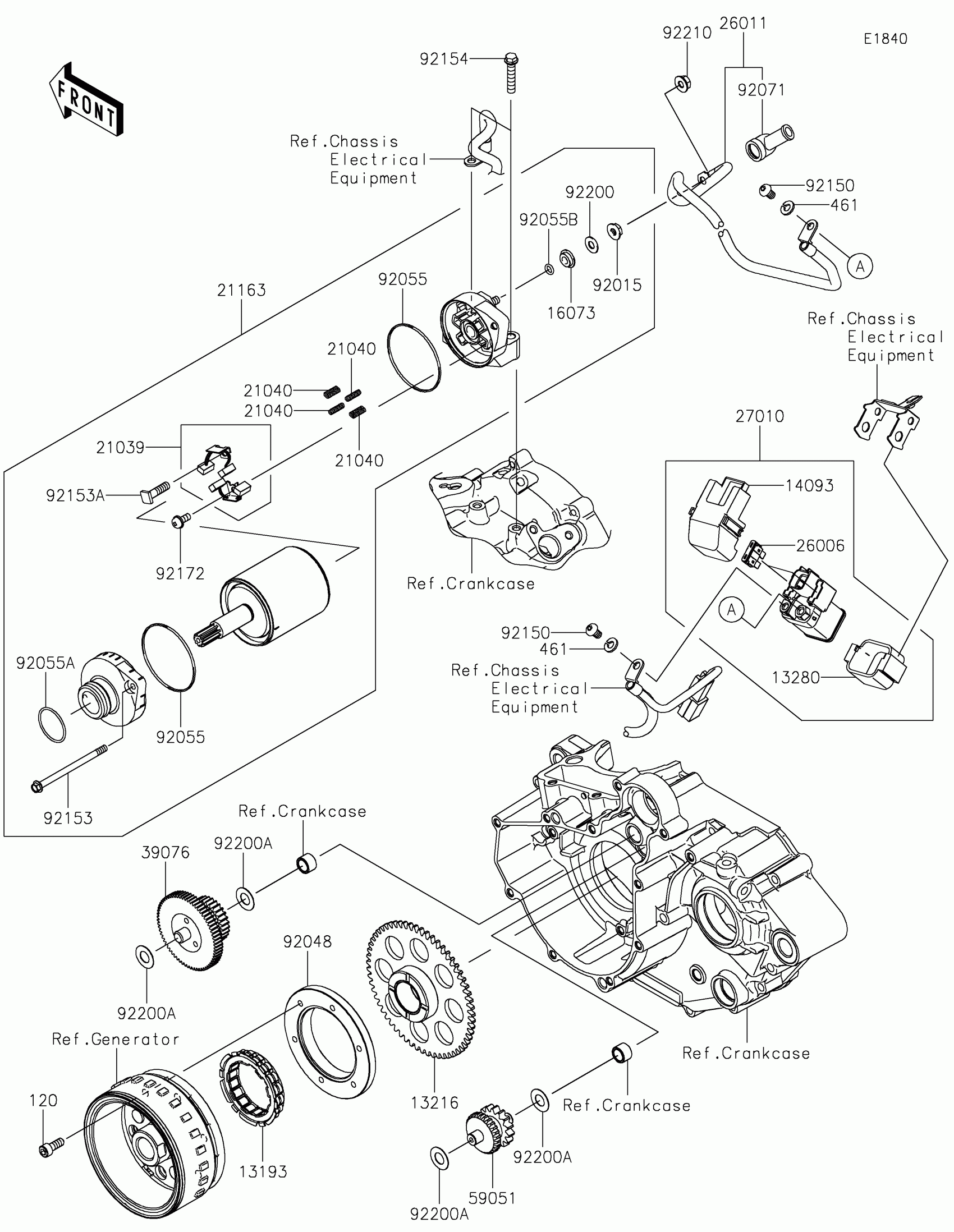

Kawasaki KLX®230SM ABS Starter Motor Diagram

CLUTCH-ASSY-ONEWAY

GEAR-COMP,ONEWAY CLUTCH

HOLDER

COVER

INSULATOR

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,BLADE,30A,GREEN

WIRE-LEAD

SWITCH

LIMITER,STARTER IDLE GEAR

GEAR-SPUR,IDLER

NUT,STARTER MOTOR

RACE,ONEWAY CLUTCH

RING-O

RING-O

RING-O,4.5X2.0

GROMMET

BOLT,6X10

BOLT

BOLT

BOLT,FLANGED,6X30

SCREW

WASHER

WASHER,10.2X20X0.5

NUT,6MM

BOLT-SOCKET,6X12

WASHER-SPRING,6MM
