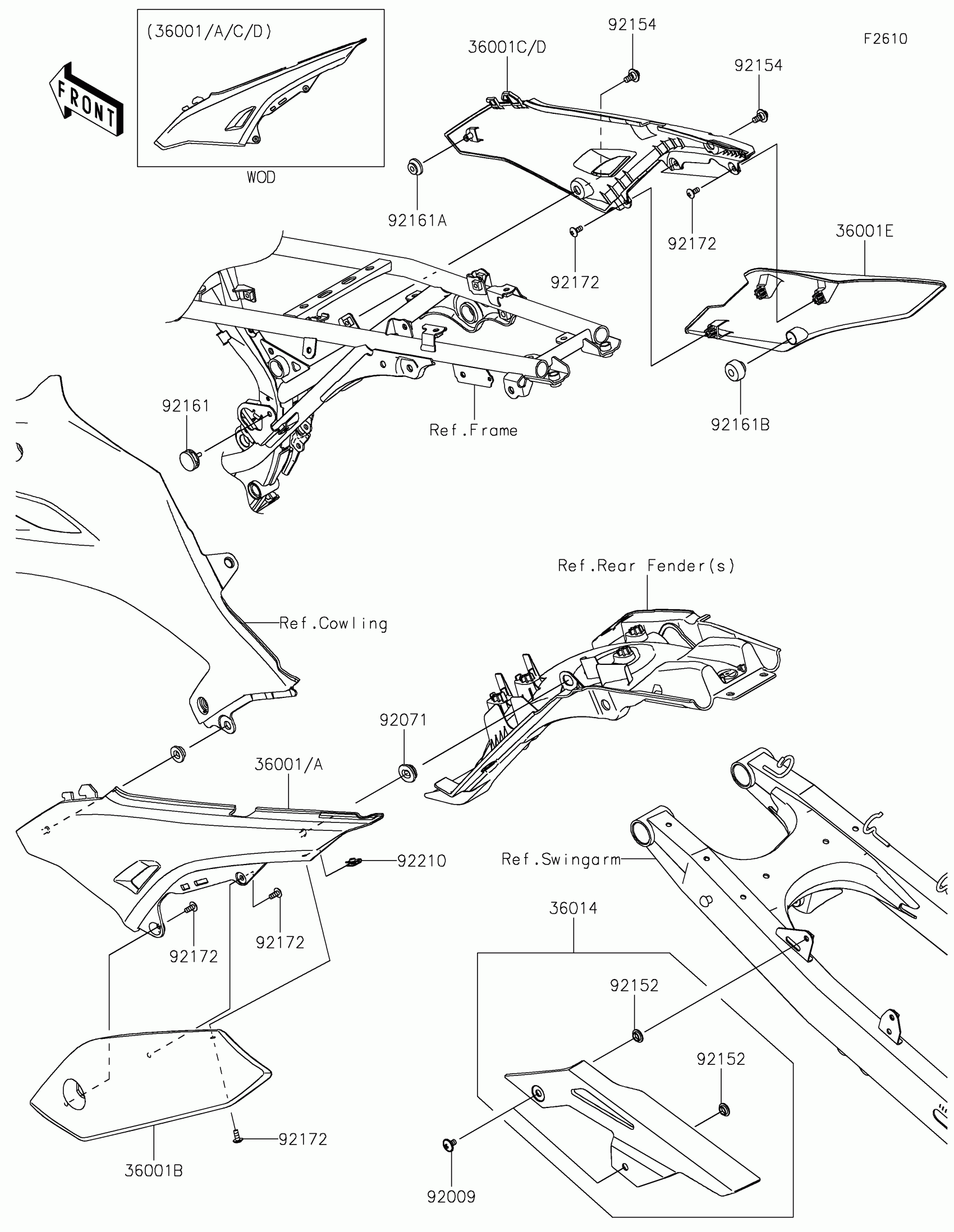

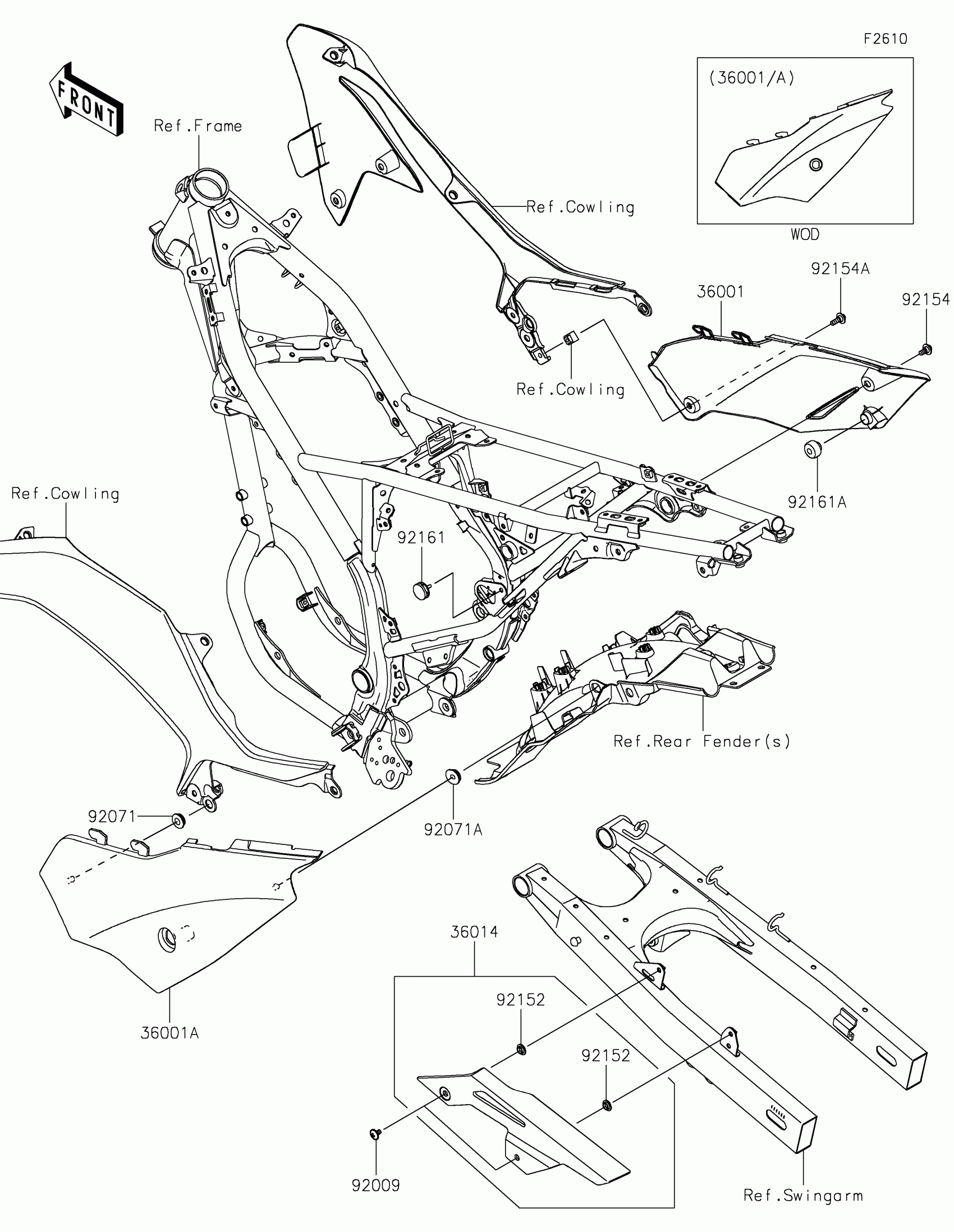

Kawasaki KLX®230SM ABS Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,UPP,B.GRAY

36001-0761-67A

$42.18

36001A

COVER-SIDE,LH,UPP,P.BLUE

36001-0761-67E

$42.18

36001B

COVER-SIDE,LH,LWR,EBONY

36001-0762-6C

$33.97

36001C

COVER-SIDE,RH,UPP,B.GRAY

36001-0763-67A

$43.53

36001D

COVER-SIDE,RH,UPP,P.BLUE

36001-0763-67E

$43.53

36001E

COVER-SIDE,RH,LWR,EBONY

36001-0764-6C

$36.48

36014

CASE-CHAIN

36014-0560

$17.48

92009

SCREW,6X10

92009-1729

$0.22

92071

GROMMET

92071-0795

$1.36

92152

COLLAR,8.8X16X4

92152-1731

$5.65

92154

BOLT,FLANGED,6X13

92154-4411

$3.74

92161

DAMPER

92161-0581

$1.94

92161A

DAMPER

92161-1531

$3.02

92161B

DAMPER

92161-1783

$5.44

92172

SCREW,5X12

92172-1095

$0.63

92210

NUT,CLIP,5MM

92210-1666

$7.73
