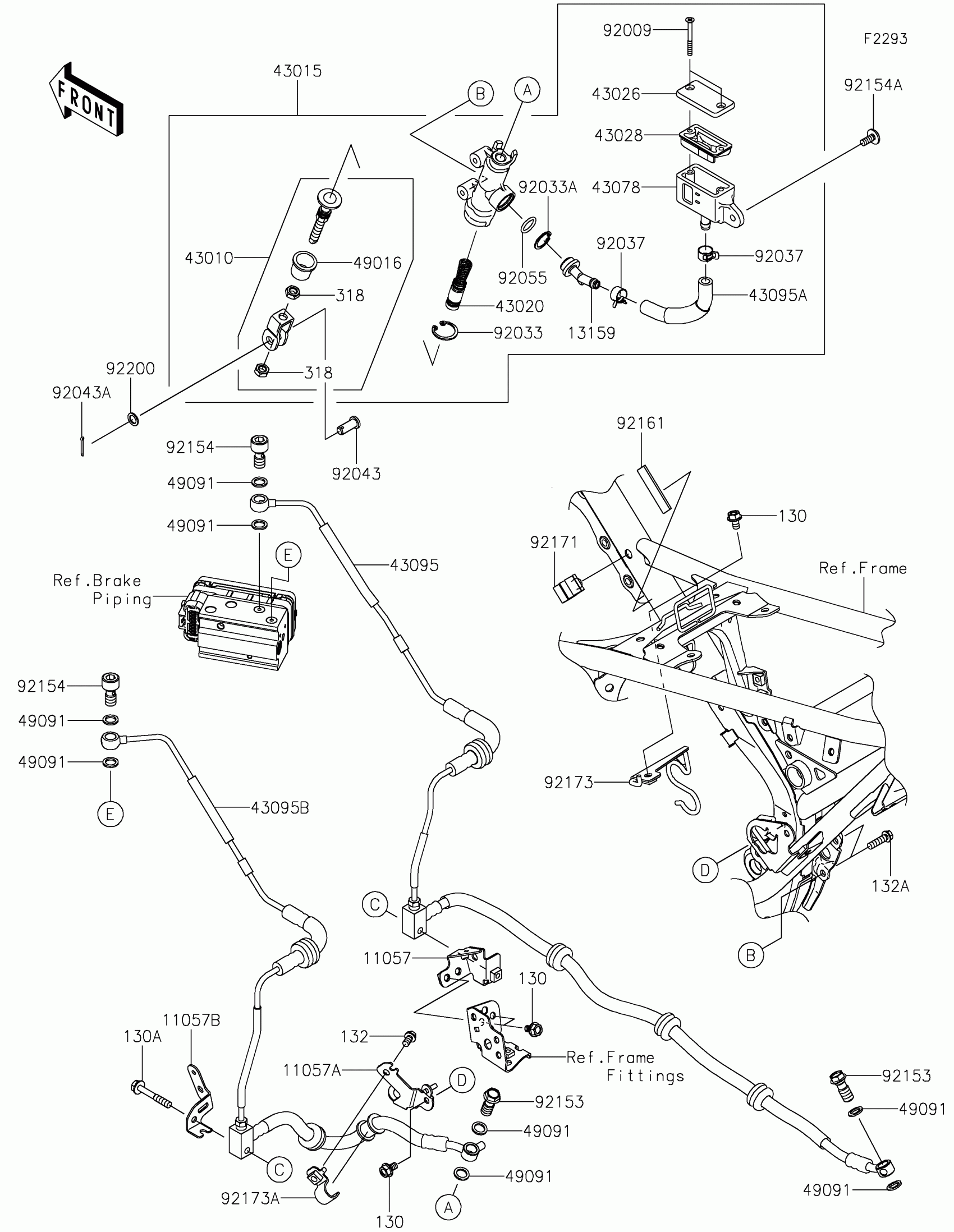

Kawasaki KLX®230SM ABS Rear Master Cylinder Diagram

#

Description
Price

11057

BRACKET

11057-2362

$11.65

11057A

BRACKET

11057-2363

$7.29

11057B

BRACKET

11057-2485

$3.26

13159

CONNECTOR

13159-0009

$9.09

43010

ROD-ASSY-BRAKE

43010-0028

$54.90

43015

CYLINDER-ASSY-MASTER,RR

43015-0737

$264.70

43020

PISTON-COMP-BRAKE

43020-0027

$66.13

43026

CAP-BRAKE

43026-1075

$13.61

43028

DIAPHRAGM

43028-1067

$18.72

43078

RESERVOIR

43078-1189

$30.34

43095

HOSE-BRAKE,ABS UNIT-RR CALIPER

43095-1647

$546.18

43095A

HOSE-BRAKE

43095-1663

$35.97

43095B

HOSE-BRAKE,ABS UNIT-RR M/C

43095-1734

$468.93

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$13.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92009

SCREW,4X40

92009-1596

$3.94

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

PIN

92043-0004

$11.16

92043A

PIN,COTTER,2.0X15

92043-0766

$1.17

92055

RING-O,14.8X2.4

92055-0741

$3.71

92153

BOLT,OIL,L=23

92153-0029

$1.63

92154

BOLT,BANJO,10X20.8

92154-1121

$26.28

92154A

BOLT,SOCKET,6X14

92154-1202

$1.59

92161

DAMPER,13X48X2

92161-1972

$3.57

92171

CLAMP

92171-0818

$4.41

92173

CLAMP

92173-2047

$13.10

92173A

CLAMP

92173-2137

$3.04

92200

WASHER,8.5X13X1

92200-1980

$3.92

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X40

130BA0640

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL,6X22

132BA0622

$1.94

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34
