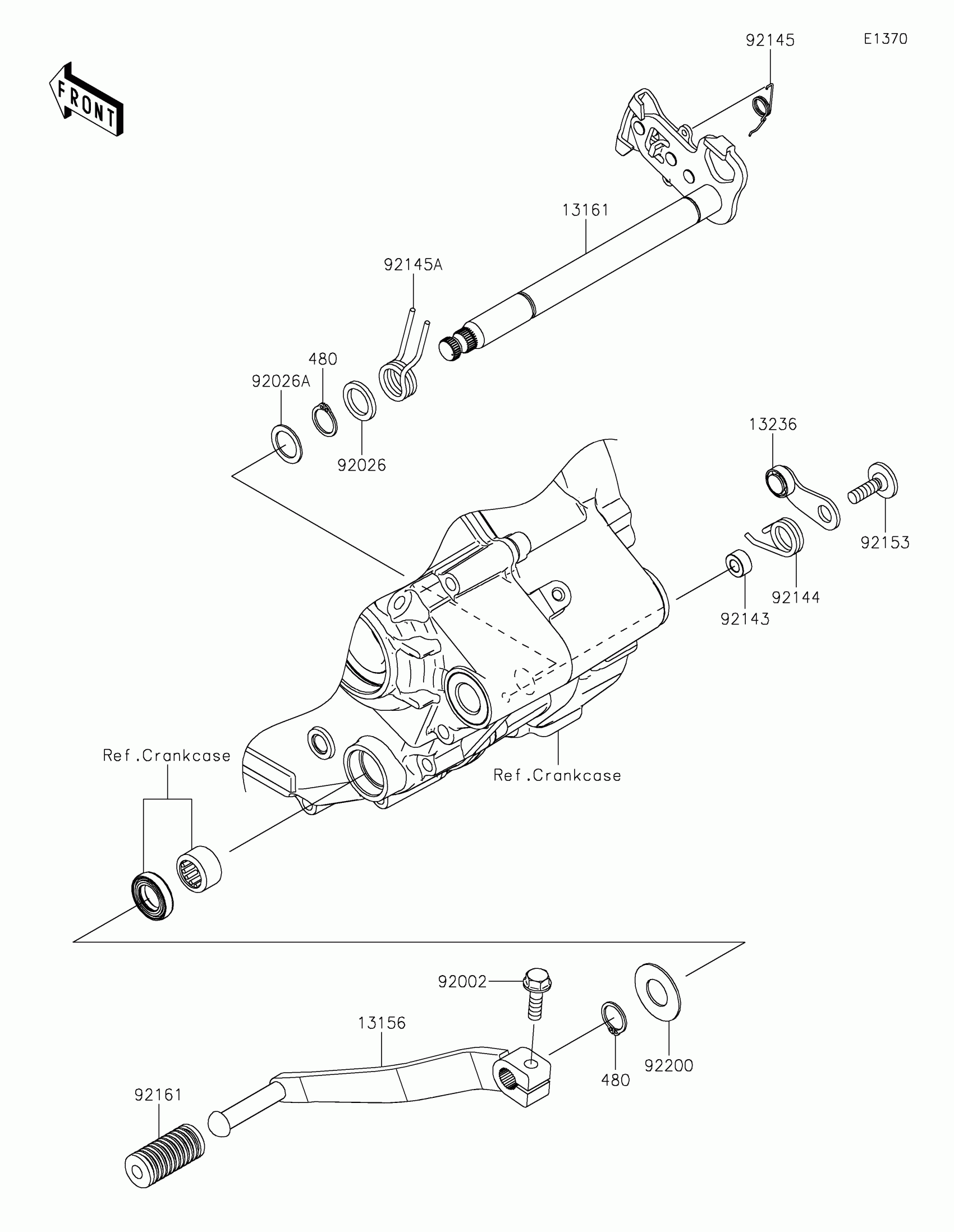

Kawasaki KLX®230SM ABS Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-0695

$33.95

13161

LEVER-COMP-CHANGE SHAFT

13161-0612

$55.37

13236

LEVER-COMP,POSITION

13236-0818

$21.07

92002

BOLT,6X20

92002-1237

$3.43

92026

SPACER,14X20X2.3

92026-0107

$4.68

92026A

SPACER,14X20X1.0

92026-1534

$3.85

92143

COLLAR

92143-1595

Unavailable

92144

SPRING,GEAR POSITION

92144-1523

$8.56

92145

SPRING

92145-0414

$8.98

92145A

SPRING,RETURN

92145-0415

$11.32

92153

BOLT,6X20

92153-1505

$7.61

92161

DAMPER,CHANGE PEDAL

92161-2089

$4.47

92200

WASHER

92200-0265

$2.15

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.97
