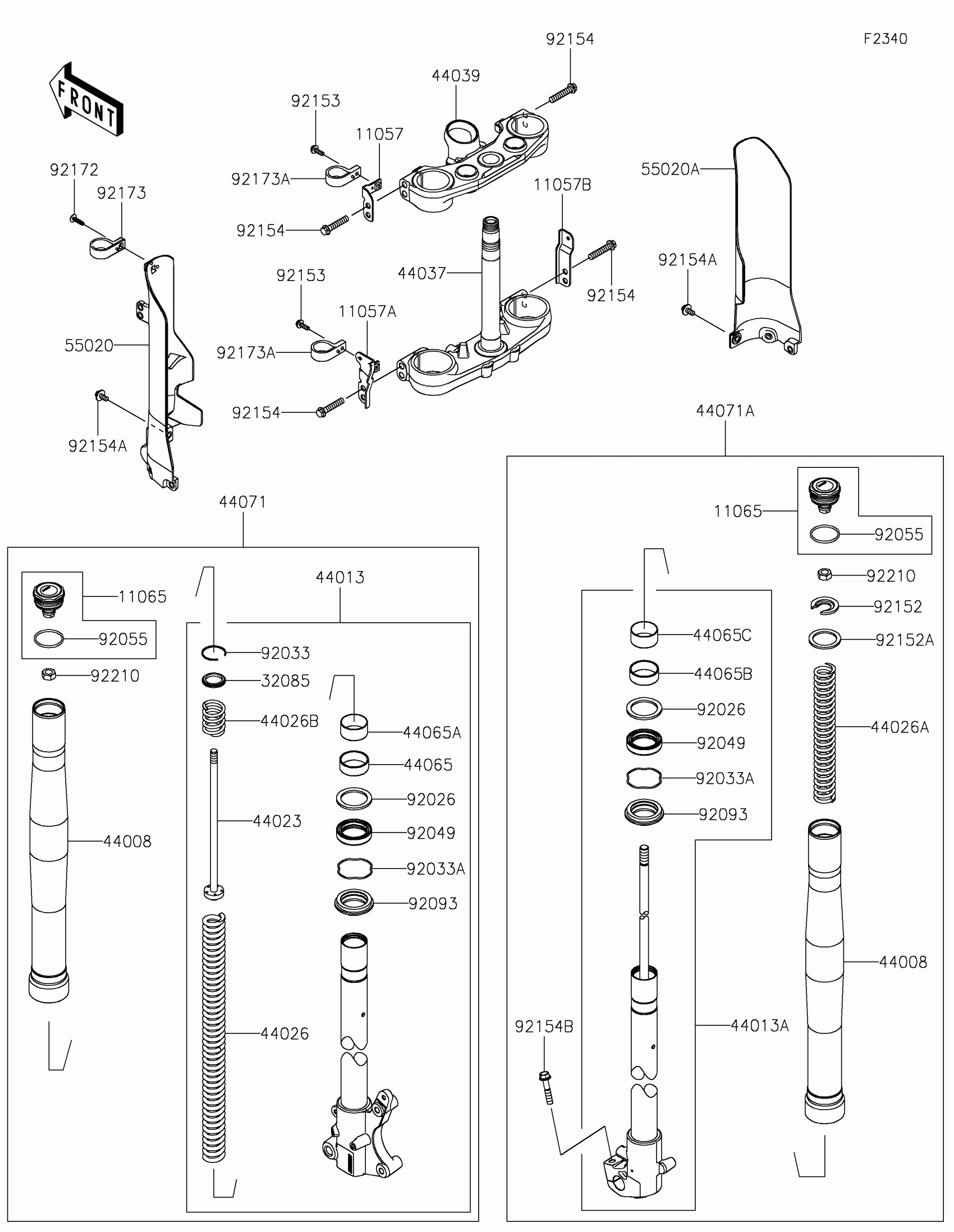

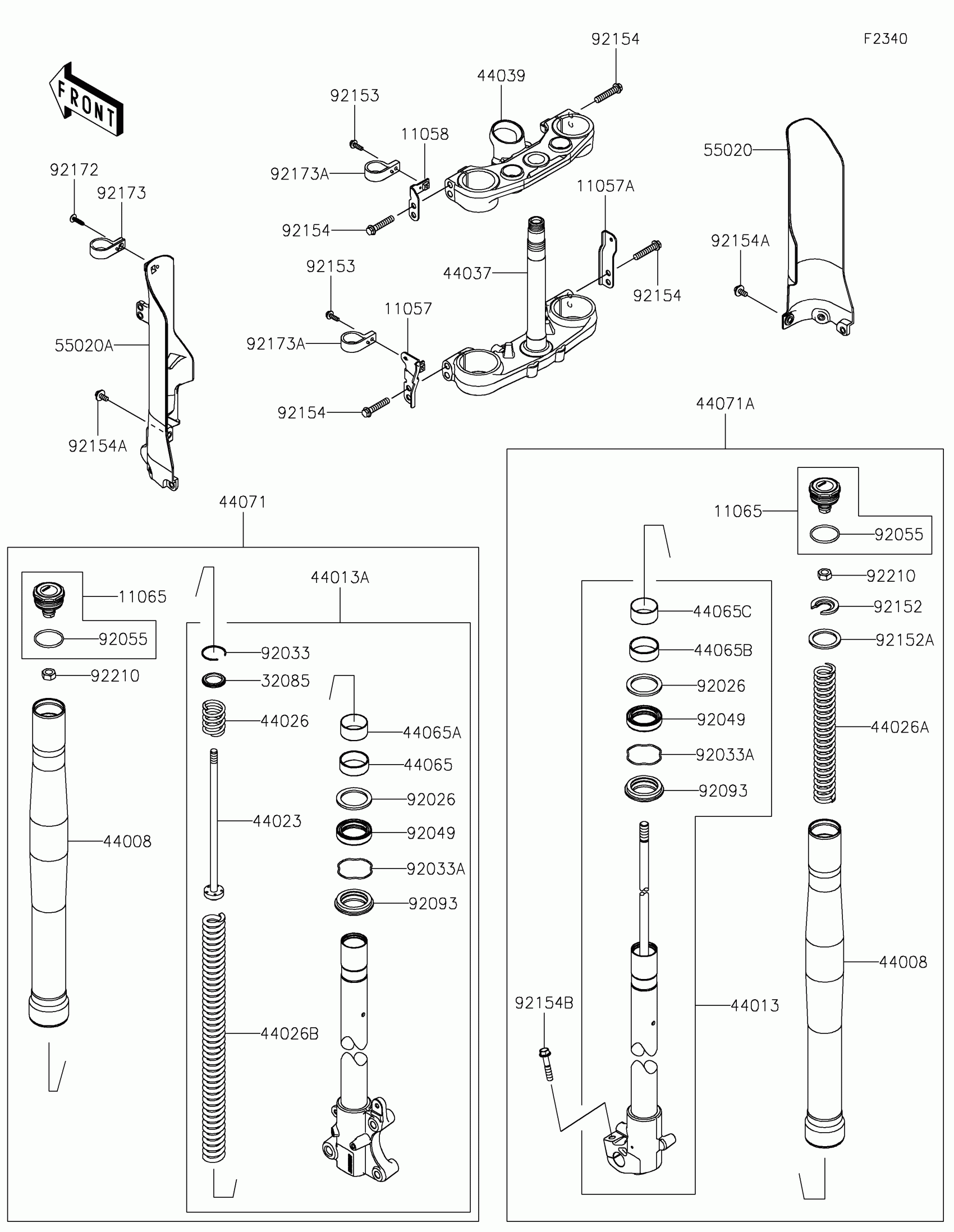

Kawasaki KLX®230SM ABS Front Fork Diagram

#

Description
Price

11057

BRACKET

11057-7776

$17.37

11057A

BRACKET,UNDER HOLDER,LH

11057-7778

$21.84

11057B

BRACKET,UNDER HOLDER,RH

11057-7779

$21.84

11065

CAP,FORK

11065-1428

$83.98

32085

STOPPER

32085-0902

$7.28

44008

PIPE-FORK OUTER

44008-0111

$448.79

44013

PIPE-FORK INNER,LH

44013-0395

$291.14

44013A

PIPE-FORK INNER,RH

44013-0448

$348.73

44023

CYLINDER-SET-FORK,LH

44023-0190

$56.57

44026

SPRING-FRONT FORK

44026-0287

$28.82

44026A

SPRING-FRONT FORK

44026-0288

$22.68

44026B

SPRING-FRONT FORK

44026-0290

$6.53

44037

HOLDER-FORK UNDER

44037-0212

$917.01

44039

HOLDER-FORK UPPER

44039-0210

$393.91

44065

BUSHING-FRONT FORK

44065-0069

$18.91

44065A

BUSHING-FRONT FORK

44065-0070

$12.18

44065B

BUSHING-FRONT FORK

44065-0074

$12.10

44065C

BUSHING-FRONT FORK

44065-0075

$8.91

44071

DAMPER-ASSY,FORK,LH

44071-1559

$871.20

44071A

DAMPER-ASSY,FORK,RH

44071-1560

$871.20

55020

GUARD,FORK,LH,EBONY

55020-2399-68L

$47.40

55020A

GUARD,FORK,RH,EBONY

55020-2400-68L

$47.40

92026

SPACER

92026-0905

$7.49

92033

RING-SNAP

92033-0852

$4.69

92033A

RING-SNAP

92033-1286

$8.03

92049

SEAL-OIL

92049-0864

$21.20

92055

RING-O

92055-0994

$5.73

92093

SEAL

92093-0774

$21.57

92152

COLLAR

92152-2909

$16.41

92152A

COLLAR

92152-2910

$16.41

92153

BOLT,FLANGED

92153-1397

$3.90

92154

BOLT

92154-0463

$4.41

92154A

BOLT,FLANGED,6X14

92154-1231

$2.97

92154B

BOLT

92154-4220

$2.36

92172

SCREW,TAPPING,5X20

92172-0382

$2.55

92173

CLAMP

92173-1579

$15.41

92173A

CLAMP

92173-2246

$8.74

92210

NUT

92210-1918

$19.73
