Description

Price

39137

STAY-COMP,LH,F.S.BLACK

39137-0747-18R

$60.35

39137A

STAY-COMP,RH,F.S.BLACK

39137-0748-18R

$53.51

49136

SHROUD-ENGINE,LH,B.GRAY

49136-5265-67A

$185.80

49136A

SHROUD-ENGINE,RH,B.GRAY

49136-5266-67A

$185.80

49136B

SHROUD-ENGINE,LH,P.BLUE

49136-5267-67E

$185.80

49136C

SHROUD-ENGINE,RH,P.BLUE

49136-5268-67E

$185.80

55022

COVER-HEAD LAMP,B.GRAY

55022-0331-67A

$64.48

55022A

COVER-HEAD LAMP,P.BLUE

55022-0331-67E

$64.48

92153

BOLT,FLANGED,6X12

92153-1283

$2.41

92154

BOLT,FLANGED,6X13

92154-4411

$3.74

92161

DAMPER

92161-1531

$3.02

92161A

DAMPER

92161-2547

$0.85

92161B

DAMPER,HEAD LAMP COVER,LH

92161-2656

$4.59

92161C

DAMPER,HEAD LAMP COVER,RH

92161-2657

$4.59

92161D

DAMPER,15X30X10

92161-2674

$1.48

92161E

DAMPER,10X60X6

92161-2724

$2.15

92161F

DAMPER,10X50X8

92161-2725

$2.15

92172

SCREW,5X12

92172-1095

$0.63

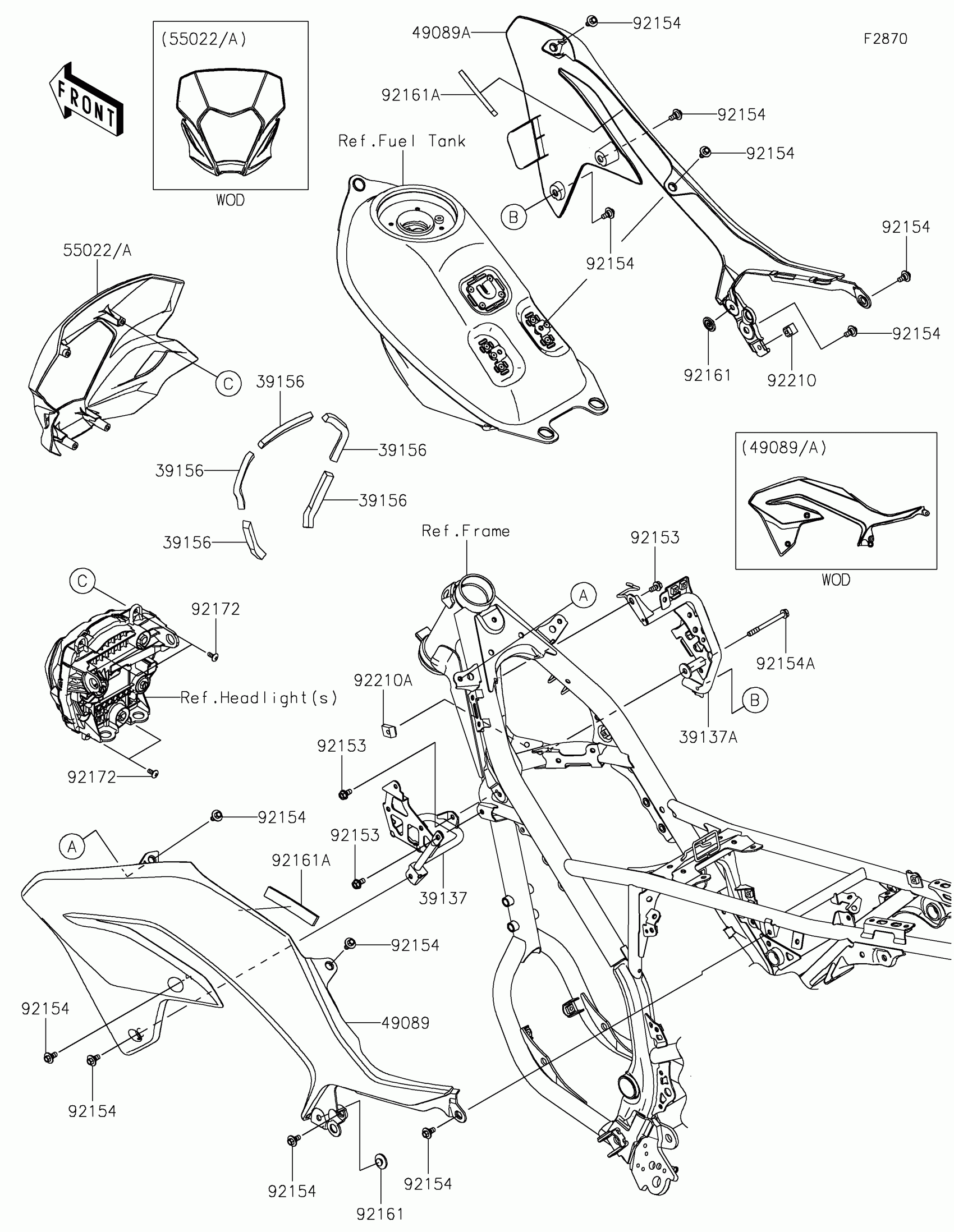

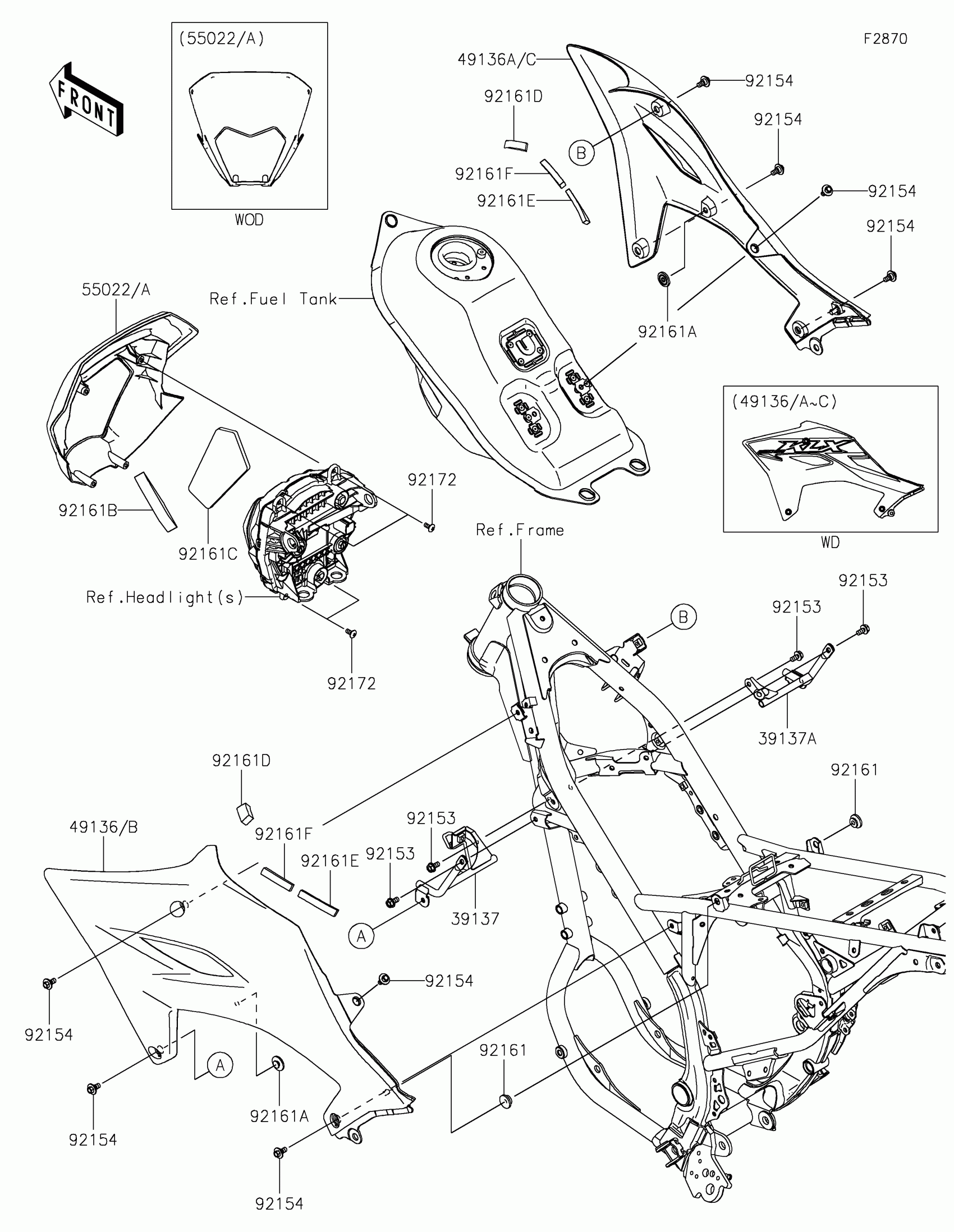

Kawasaki KLX®230SM ABS Cowling Diagram

STAY-COMP,LH,F.S.BLACK

STAY-COMP,RH,F.S.BLACK

SHROUD-ENGINE,LH,B.GRAY

SHROUD-ENGINE,RH,B.GRAY

SHROUD-ENGINE,LH,P.BLUE

SHROUD-ENGINE,RH,P.BLUE

COVER-HEAD LAMP,B.GRAY

COVER-HEAD LAMP,P.BLUE

BOLT,FLANGED,6X12

BOLT,FLANGED,6X13

DAMPER

DAMPER

DAMPER,HEAD LAMP COVER,LH

DAMPER,HEAD LAMP COVER,RH

DAMPER,15X30X10

DAMPER,10X60X6

DAMPER,10X50X8

SCREW,5X12
