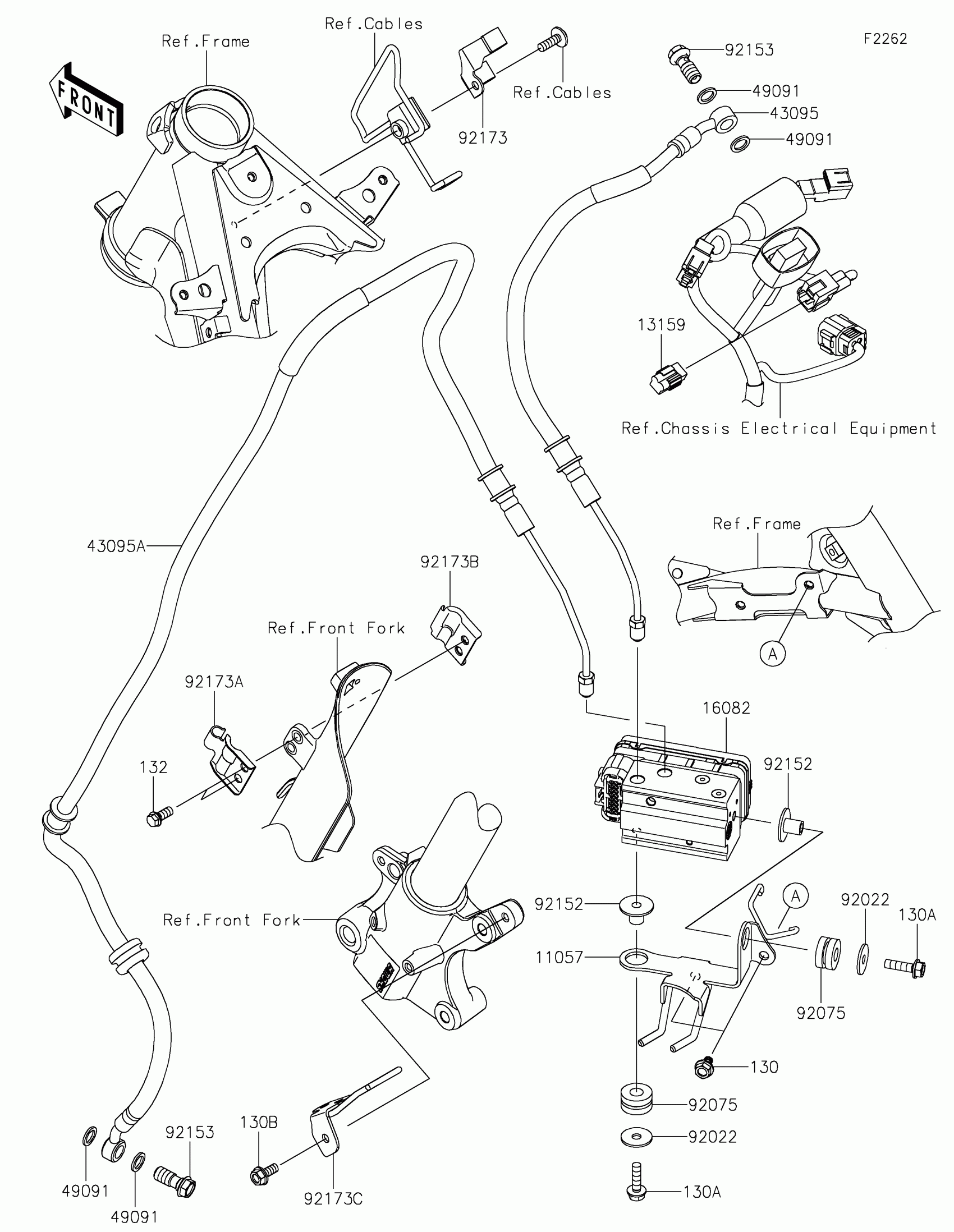

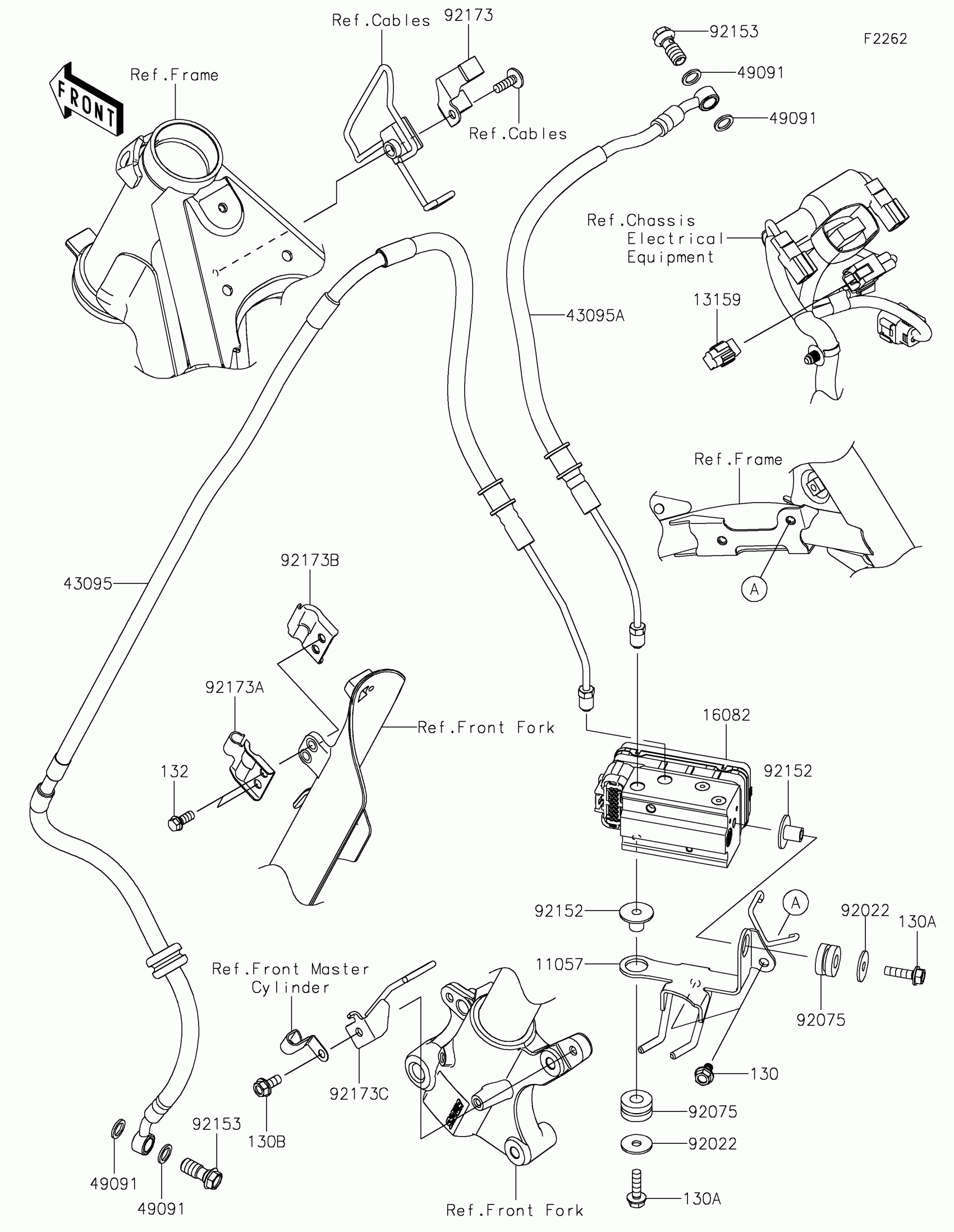

Kawasaki KLX®230SM ABS Brake Piping Diagram

Description

Price

11057

BRACKET,ABS UNIT

11057-2358

$21.12

13159

CONNECTOR

13159-0037

$24.36

16082

PUMP-ASSY-OIL,ABS,BOSCH,10.3MB

16082-0873

$1,306.07

43095

HOSE-BRAKE,ABS UNIT-FR M/C

43095-1841

$139.79

43095A

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1843

$244.96

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92152

COLLAR,6.5X10X13.6

92152-2204

$2.95

92153

BOLT,OIL,L=23

92153-0029

$1.63

92173

CLAMP

92173-2045

$4.60

92173A

CLAMP

92173-2499

$21.00

92173B

CLAMP

92173-2500

$6.34

92173C

CLAMP,BRAKE HOSE,CALIPER

92173-2505

$14.00

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X22

130BA0622

$1.29

130B

BOLT-FLANGED,6X14

130BC0614

$1.69

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46
