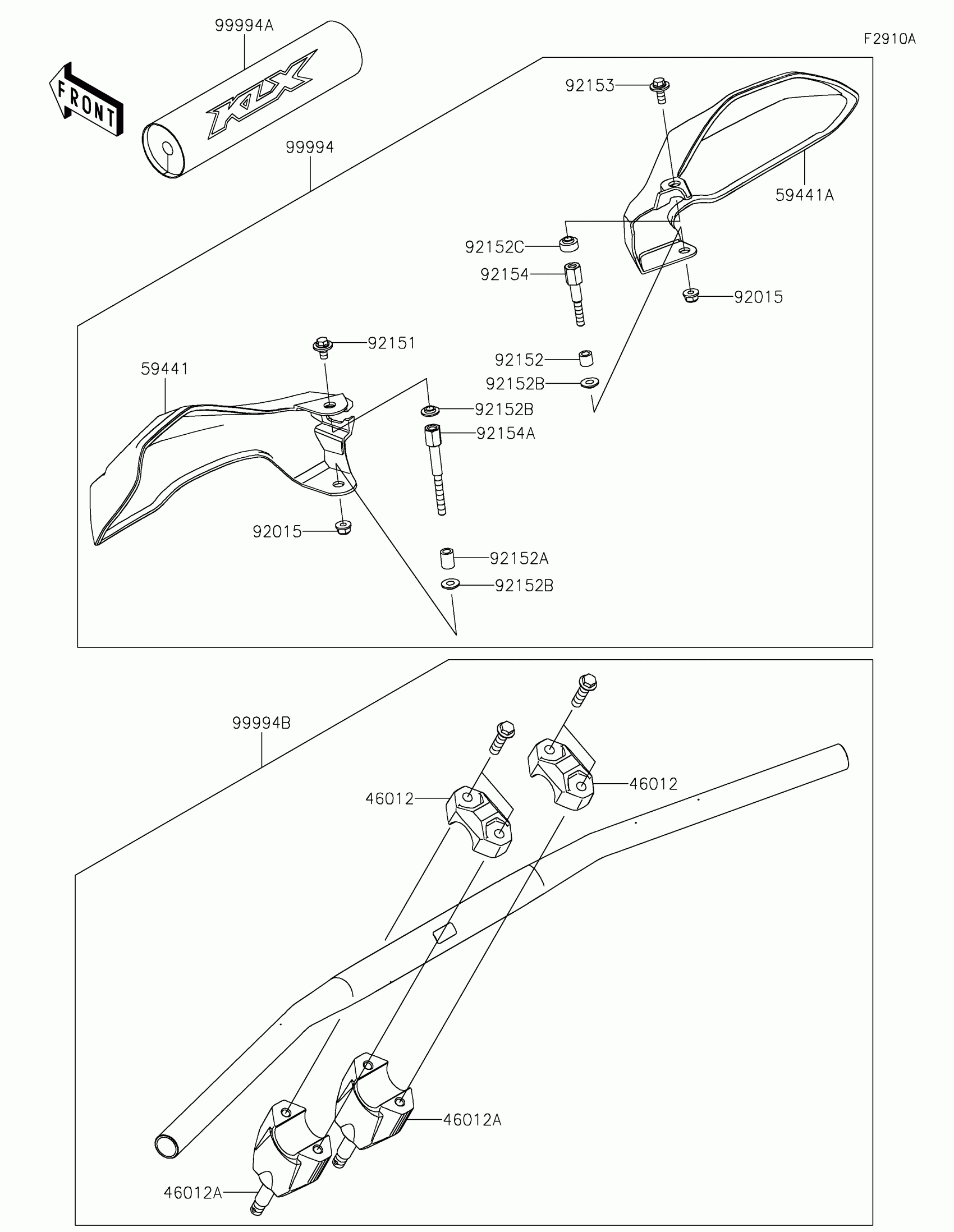

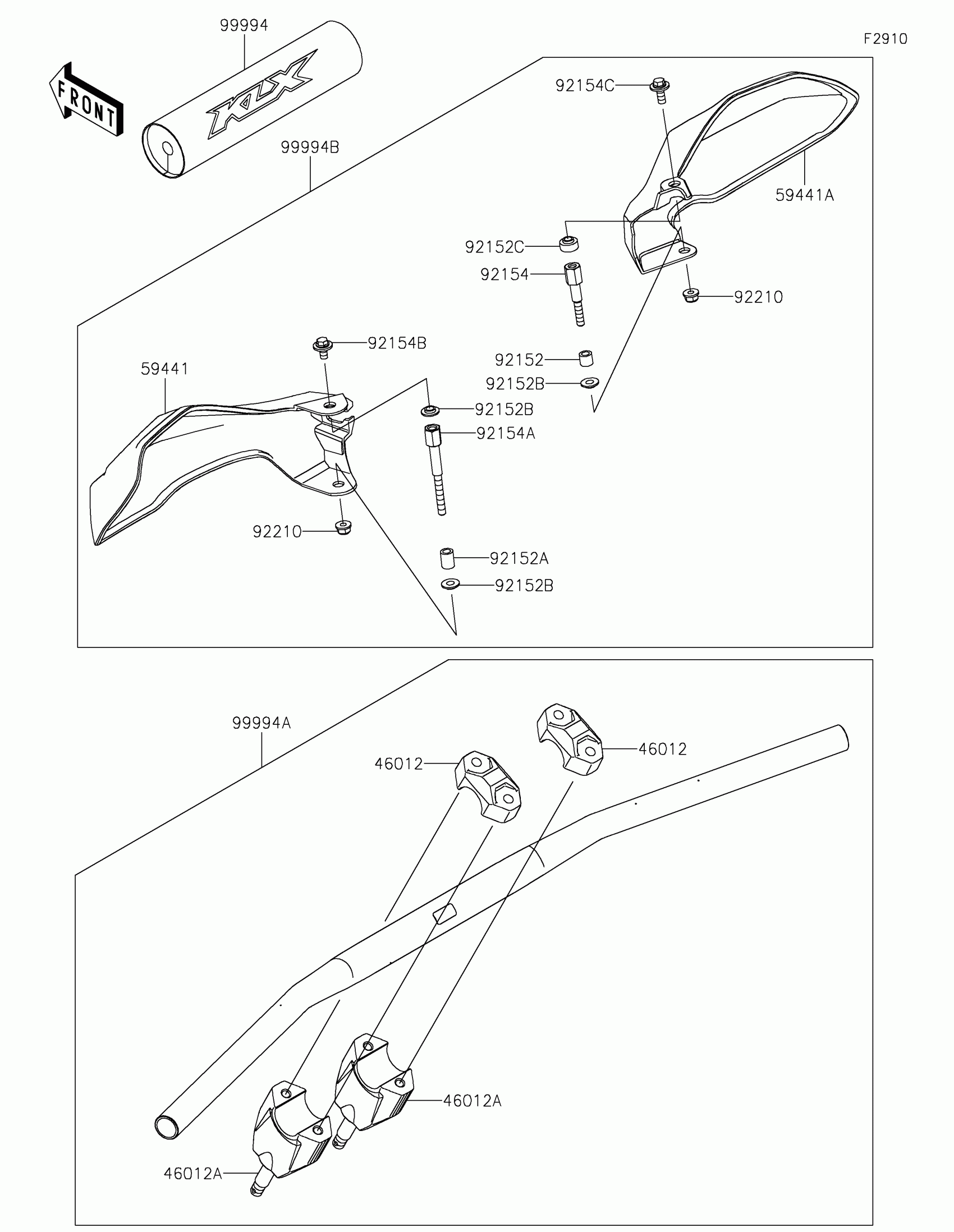

Kawasaki KLX®230SM ABS Accessory(Handle) Diagram

Description

Price

46012

HOLDER-HANDLE,UPP,M.F.S.BLACK

46012-0359-21P

$23.51

46012A

HOLDER-HANDLE,LWR,M.F.S.BLACK

46012-0360-21P

$30.12

59441

COVER-HANDLE,LH,EBONY

59441-0045-68L

$29.34

59441A

COVER-HANDLE,RH,EBONY

59441-0046-68L

$29.34

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92151

BOLT,6X12

92151-1985

$4.67

92152

COLLAR,6.5X10.5X9.3

92152-1992

$3.90

92152A

COLLAR,6.5X10.5X14

92152-2302

$4.60

92152B

COLLAR,6.5X15X3.4

92152-2314

$2.95

92152C

COLLAR

92152-2592

$5.79

92153

BOLT,FLANGED,6X16

92153-1059

$5.31

92154

BOLT

92154-1670

$19.22

92154A

BOLT

92154-2359

$11.02

99994

HAND GUARD,EBONY

99994-1248-68L

$115.91

99994A

HANDLE-BAR PAD

99994-1274

$50.23

99994B

FAT TYPE HANDLE BAR,F.S.BLACK

99994-1508-18R

$249.66
