2022 Kawasaki KLX®230S ABS Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

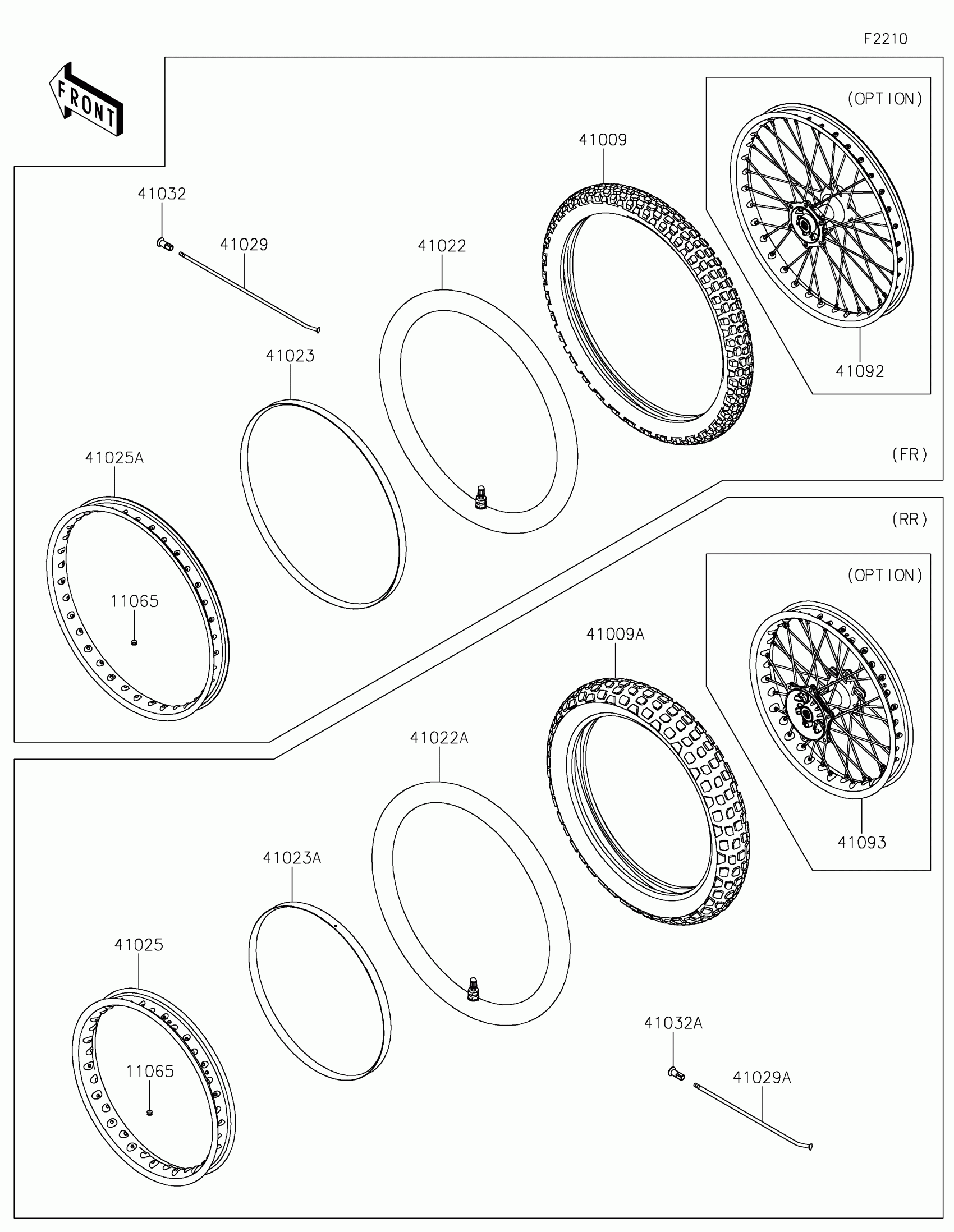

2022 Kawasaki KLX®230S ABS Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,BEAD STOPPER

11065-0384

1
Out of stock

41009

TIRE,FR,2.75-21 45P,GP-21F

41009-0559

1
Out of stock

41009A

TIRE,RR,4.10-18 59P,GP-22R

41009-0560

1
Out of stock

41022

TUBE-TIRE

41022-0112

1
Out of stock

41022A

TUBE-TIRE

41022-0113

1
Out of stock

41023

BAND-RIM,2.75-21

41023-0028

1
Out of stock

41023A

BAND-RIM,4.10-18

41023-0029

1
Out of stock

41025

RIM,RR,18X1.85,SILVER

41025-0399-WA

1
Out of stock

41025A

RIM,FR,21X1.60,SILVER

41025-0400-WA

1
Out of stock

41029

SPOKE-INNER,225.5MMX162D

41029-0105

1
Out of stock

41029A

SPOKE-INNER,186.5MMX162D

41029-0106

1
Out of stock

41032

NIPPLE-SPOKE

41032-0010

1

$2.92

In stock

41032A

NIPPLE-SPOKE

41032-0013

1

$2.66

In stock

41092

WHEEL-SUB ASSY,FR,SILVER

41092-0041-WA

1
Out of stock

41093

WHEEL-SUB ASSY,RR,SILVER

41093-0025-WA

1
Out of stock
