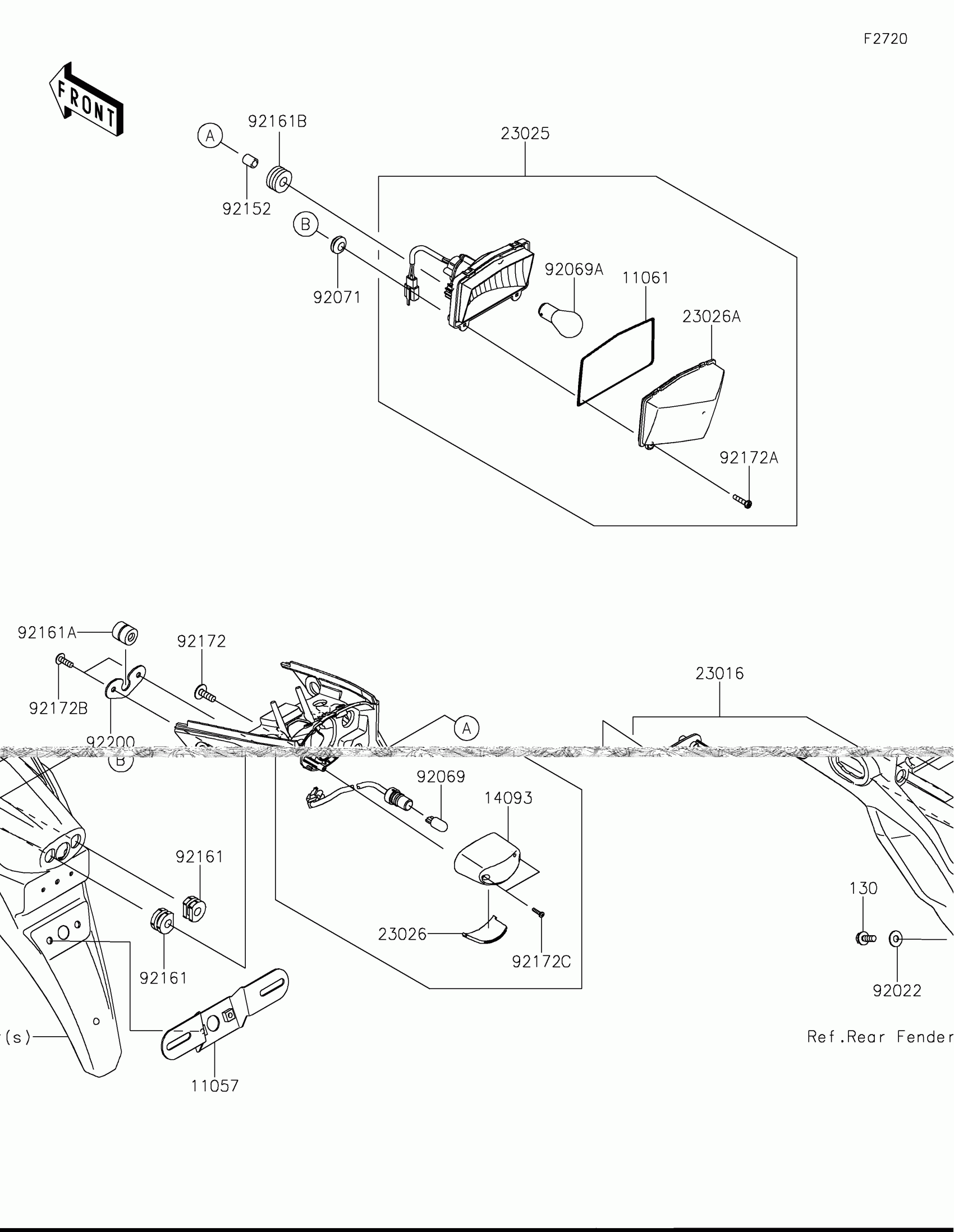

Find the part on the Taillight diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230S ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LICENSE PLATE

11057-1046

1
Out of stock

11061

GASKET,TAIL LAMP LENS

11061-0393

1
Out of stock

14093

COVER,LICENSE LAMP

14093-0525

1
Out of stock

23016

LAMP-ASSY,LICENCE

23016-0604

1
Out of stock

23025

LAMP-TAIL

23025-0392

1
Out of stock

23026

LENS,LICENSE LAMP

23026-0025

1
Out of stock

23026A

LENS,TAIL LAMP

23026-0036

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92069A

BULB,12V 21/5W

92069-1084

1
Out of stock

92071

GROMMET

92071-024

1
Out of stock

92152

COLLAR,6.8X10X13

92152-0580

1
Out of stock

92161

DAMPER

92161-0776

1
Out of stock

92161A

DAMPER,6X18X18.2

92161-1809

1

$1.32

In stock

92161B

DAMPER,10X24X12

92161-2112

1
Out of stock

92172

SCREW,6X18

92172-0192

1
Out of stock

92172A

SCREW,4.2X19

92172-0411

1
Out of stock

92172B

SCREW,5X16

92172-0834

1
Out of stock

92172C

SCREW,4X12

92172-0904

1
Out of stock

92200

WASHER

92200-1773

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
