- KLX®230S ABS
Rear Master Cylinder

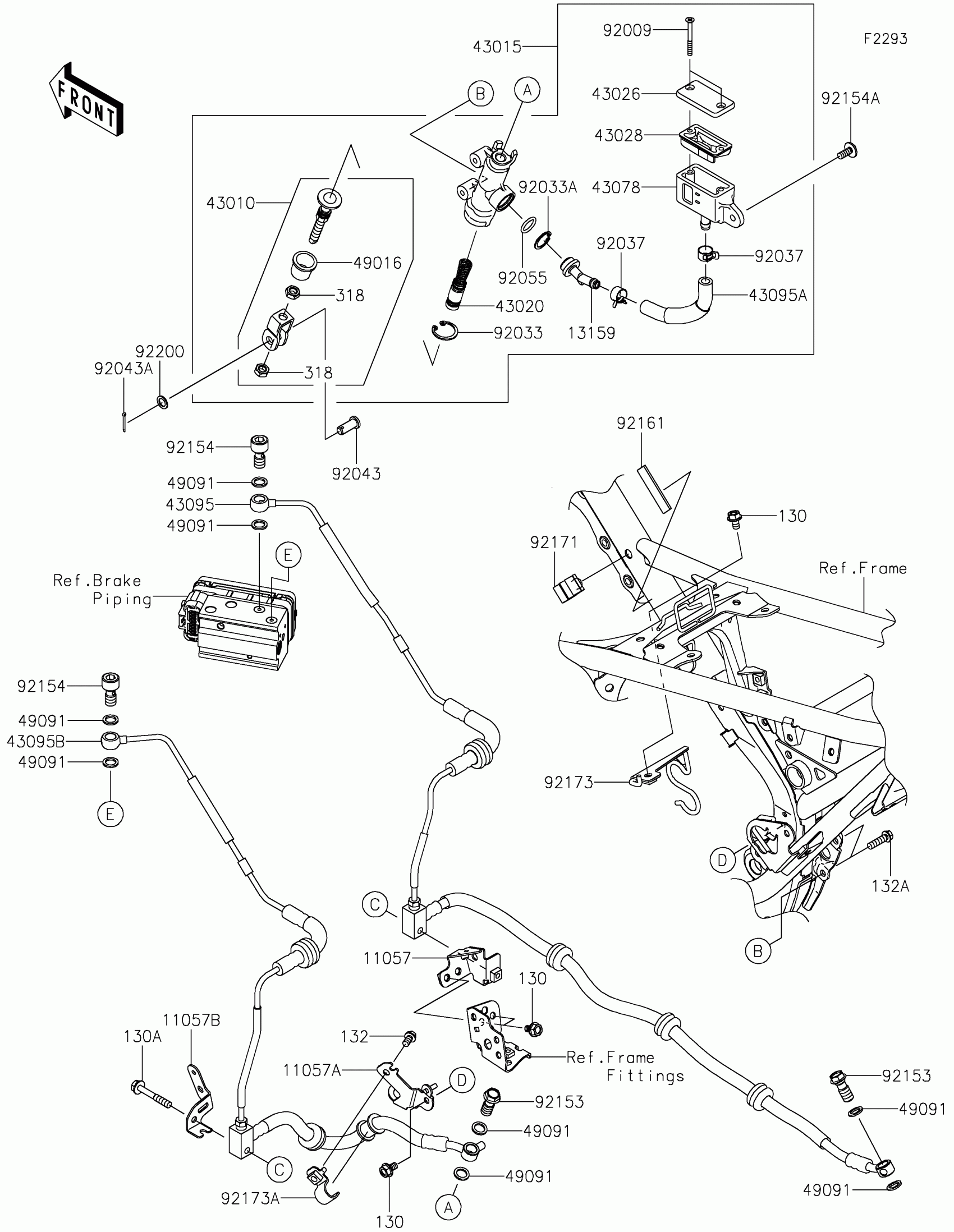

Kawasaki KLX®230S ABS Rear Master Cylinder Diagram
#
Description
Price
11057
BRACKET
11057-2362
$11.65
11057A
BRACKET
11057-2363
$7.29
11057B
BRACKET
11057-2485
$3.26
13159
CONNECTOR
13159-0009
$9.09
43010
ROD-ASSY-BRAKE
43010-0028
$54.90
43015
CYLINDER-ASSY-MASTER,RR
43015-0737
$264.70
43020
PISTON-COMP-BRAKE
43020-0027
$66.13
43026
CAP-BRAKE
43026-1075
$13.61
43028
DIAPHRAGM
43028-1067
$18.72
43078
RESERVOIR
43078-1189
$30.34
43095
HOSE-BRAKE,ABS UNIT-RR CALIPER
43095-1647
$546.18
43095A
HOSE-BRAKE
43095-1663
$35.97
43095B
HOSE-BRAKE,ABS UNIT-RR M/C
43095-1734
$468.93
49016
COVER-SEAL,BRAKE PISTON
49016-1103
$13.37
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92009
SCREW,4X40
92009-1596
$3.94
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP
92037-1710
$9.91
92043
PIN
92043-0004
$11.16
92043A
PIN,COTTER,2.0X15
92043-0766
$1.17
92055
RING-O,14.8X2.4
92055-0741
$3.71
92153
BOLT,OIL,L=23
92153-0029
$1.63
92154
BOLT,BANJO,10X20.8
92154-1121
$26.28
92154A
BOLT,SOCKET,6X14
92154-1202
$1.59
92161
DAMPER,13X48X2
92161-1972
$3.57
92171
CLAMP
92171-0818
$4.41
92173
CLAMP
92173-2047
$13.10
92173A
CLAMP
92173-2137
$3.04
92200
WASHER,8.5X13X1
92200-1980
$3.92
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X40
130BA0640
$1.20
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
132A
BOLT-FLANGED-SMALL,6X22
132BA0622
$1.94
318
NUT-HEX-SMALL,8MM
318BA0800
$1.34
