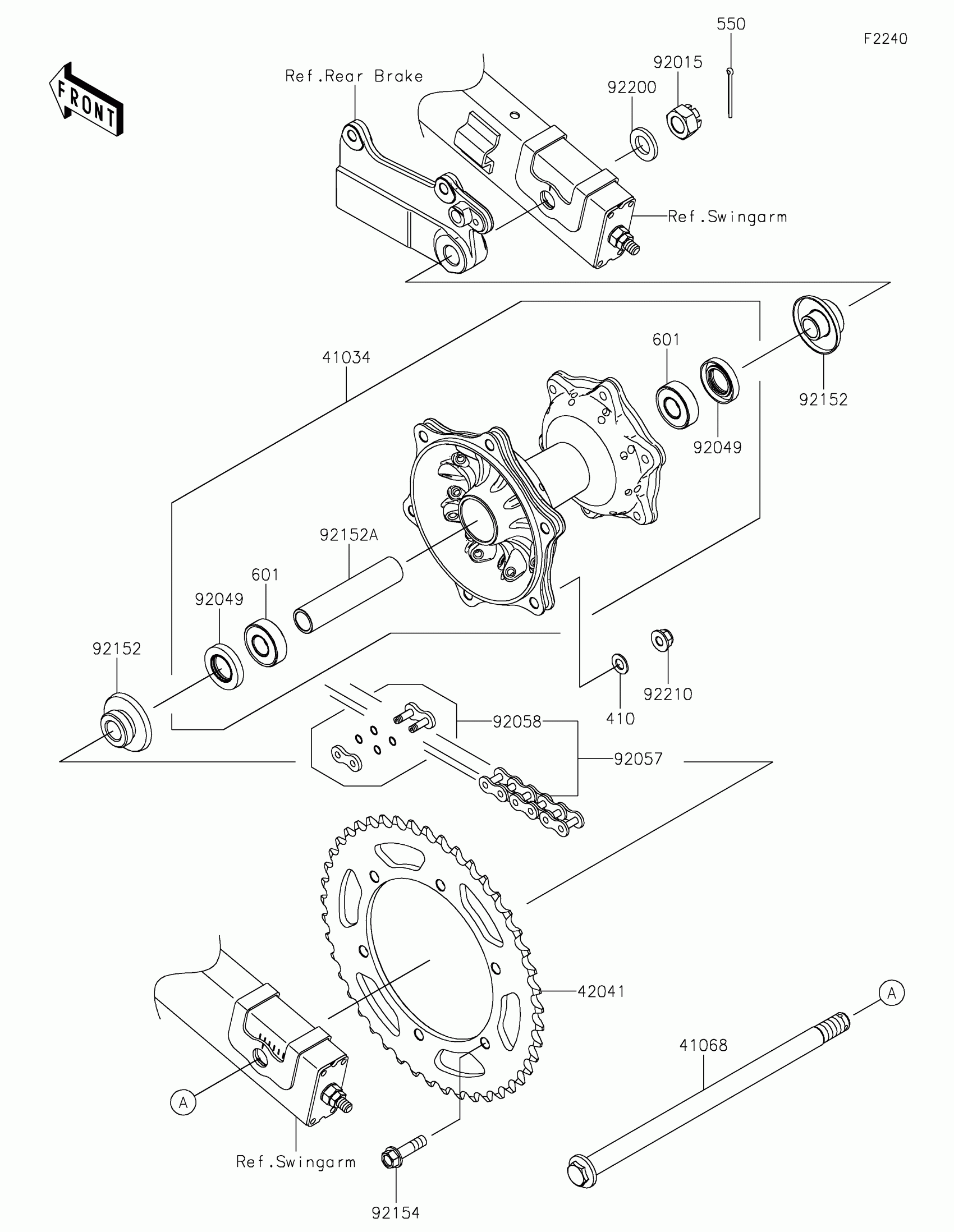

Kawasaki KLX®230S ABS Rear Hub Diagram

Description

Price

41034

DRUM-ASSY,RR

41034-0612

$513.21

41068

AXLE,RR,15X275

41068-0648

$92.51

42041

SPROCKET-HUB,45T

42041-0174

$82.87

92015

NUT,CASTLE,14MM

92015-1765

$9.91

92049

SEAL-OIL

92049-0114

$13.21

92057

CHAIN,DRIVE,520VF2X108L

92057-0802

$348.16

92058

JOINT-CHAIN

92058-0069

$11.83

92152

COLLAR

92152-2544

$35.08

92152A

COLLAR,15.2X20X96.2

92152-2546

$24.93

92154

BOLT,FLANGED,8X30

92154-3918

$2.80

92200

WASHER,14.2X26X3.2

92200-1428

Unavailable

92210

NUT,8MM

92210-0570

$2.58

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96

550

PIN-COTTER,3.0X35

550AA3035

$2.81

601

BEARING-BALL

601B6202UU

$21.98
