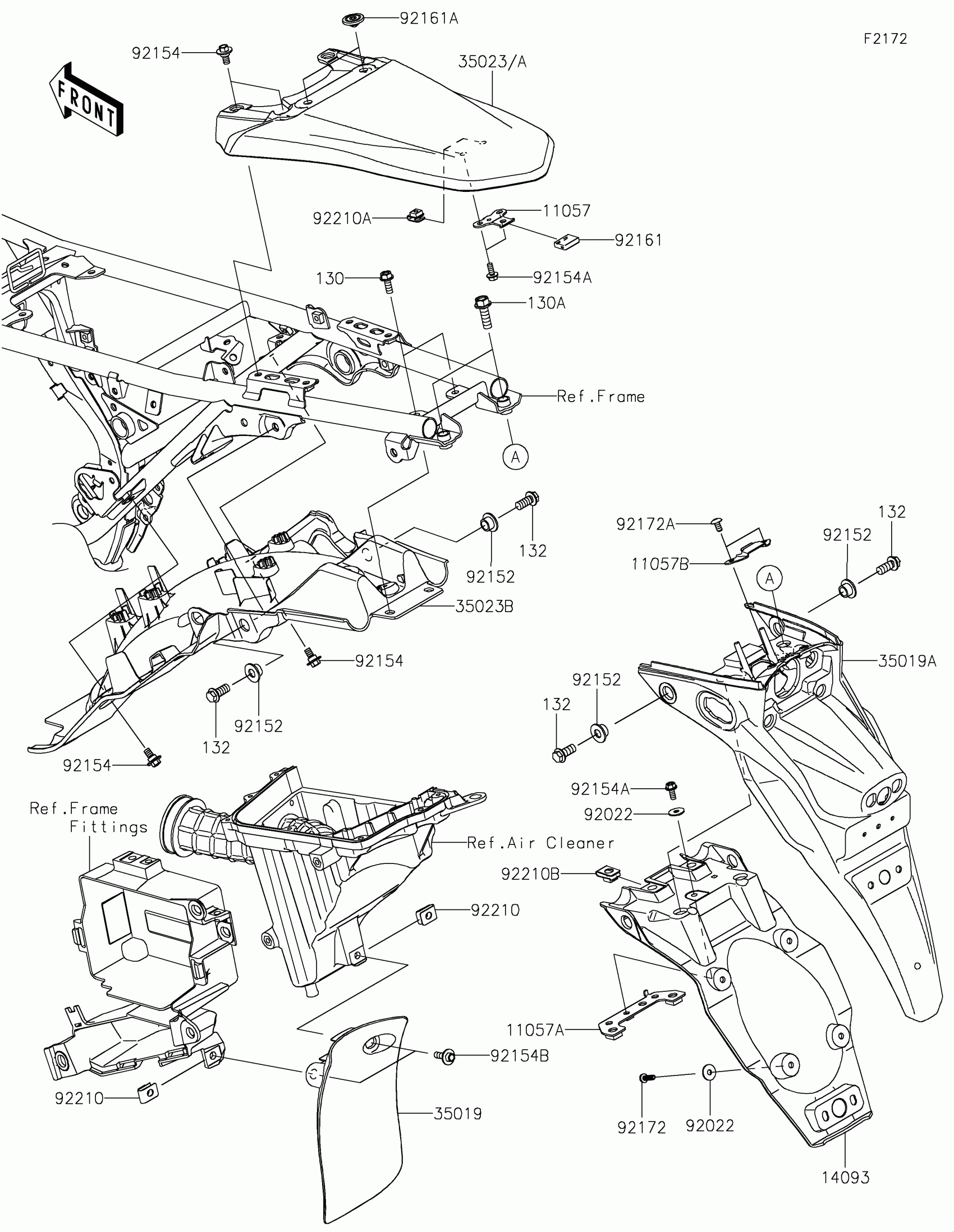

Kawasaki KLX®230S ABS Rear Fender(s) Diagram

Description

Price

11057

BRACKET

11057-2330

$2.80

11057A

BRACKET

11057-2331

$8.74

11057B

BRACKET

11057-2332

$2.80

14093

COVER

14093-0860

$74.33

35019

FLAP

35019-0664

$48.27

35019A

FLAP,RR FENDER

35019-0666

$52.10

35023

FENDER-REAR,L.GREEN

35023-0451-290

$33.60

35023B

FENDER-REAR

35023-0459

$64.32

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92152

COLLAR

92152-2542

$2.80

92154

BOLT,FLANGED,6X9

92154-0546

$3.74

92154A

BOLT,FLANGED,5X12

92154-1215

Unavailable

92154B

BOLT,FLANGED,6X28

92154-1739

$2.75

92161

DAMPER,15X21X5.5

92161-1472

$3.02

92161A

DAMPER,8X22X10

92161-1685

$0.88

92172

SCREW,TAPPING,5X16

92172-0790

$0.85

92172A

SCREW,CROS,5X10

92172-1255

$0.42

92210

NUT,6MM

92210-0218

$2.55

92210A

NUT,PLATE,5MM

92210-0262

$1.34

92210B

NUT,6MM

92210-0474

$5.54

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

132

BOLT-FLANGED-SMALL,8X18

132BA0818

$1.11
