Engine Cover(s)

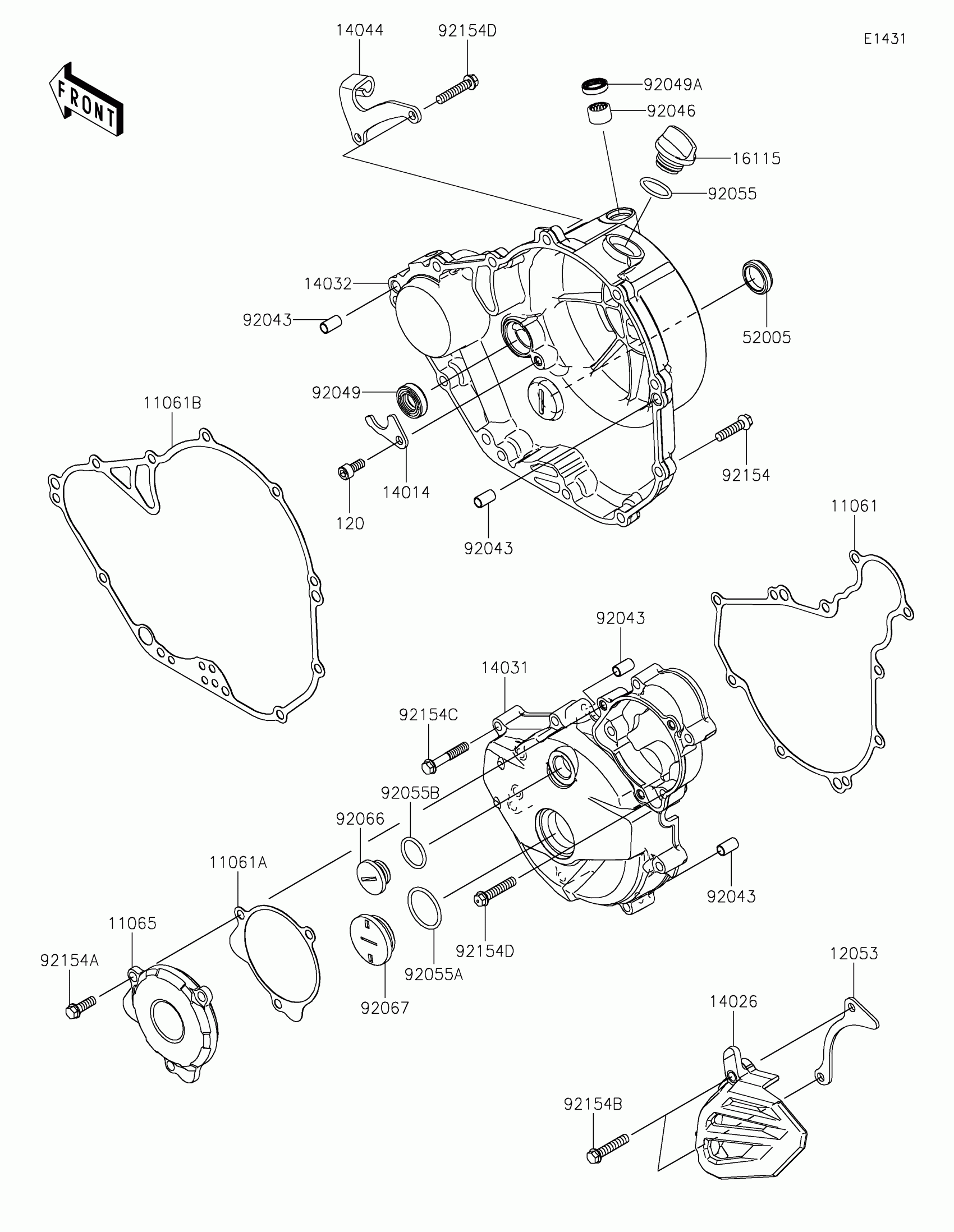

Kawasaki KLX®230S ABS Engine Cover(s) Diagram
#
Description
Price
11061
GASKET,GENERATOR COVER
11061-1299
$33.80
11061A
GASKET,GENERATOR COVER CAP
11061-1300
$8.96
11061B
GASKET,CLUTCH COVER
11061-1301
$43.34
11065
CAP,GENERATOR COVER
11065-1300
$41.04
12053
GUIDE-CHAIN
12053-0272
$4.06
14014
PLATE-POSITION
14014-0567
$8.30
14026
COVER-CHAIN
14026-0146
$33.61
14031
COVER-GENERATOR
14031-0644
$120.56
14032
COVER-CLUTCH
14032-0685
$149.42
14044
HOLDER-CABLE
14044-0573
$6.77
16115
CAP-OIL FILLER
16115-1053
$12.20
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92043
PIN,6.2X8X14
92043-1741
$3.71
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92049
SEAL-OIL
92049-1191
$24.41
92049A
SEAL-OIL,AG0353-F0
92049-1262
$6.57
92055
RING-O,19.8MM
92055-0844
Unavailable
92055A
RING-O,27.7X2.4
92055-091
$6.22
92055B
RING-O,20X2
92055-1146
$8.58
92066
PLUG,COVER
92066-0011
$15.94
92067
PLUG,30X8
92067-024
$11.29
92154
BOLT,FLANGED,6X25
92154-0520
$3.35
92154A
BOLT,FLANGED,6X18
92154-1775
$0.63
92154B
BOLT,FLANGED,6X30
92154-1830
$1.19
92154C
BOLT,FLANGED,6X35
92154-2100
$1.97
92154D
BOLT,FLANGED,6X30
92154-4061
$1.37
120
BOLT-SOCKET,6X14
120CA0614
$4.10
