2022 Kawasaki KLX®230S ABS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

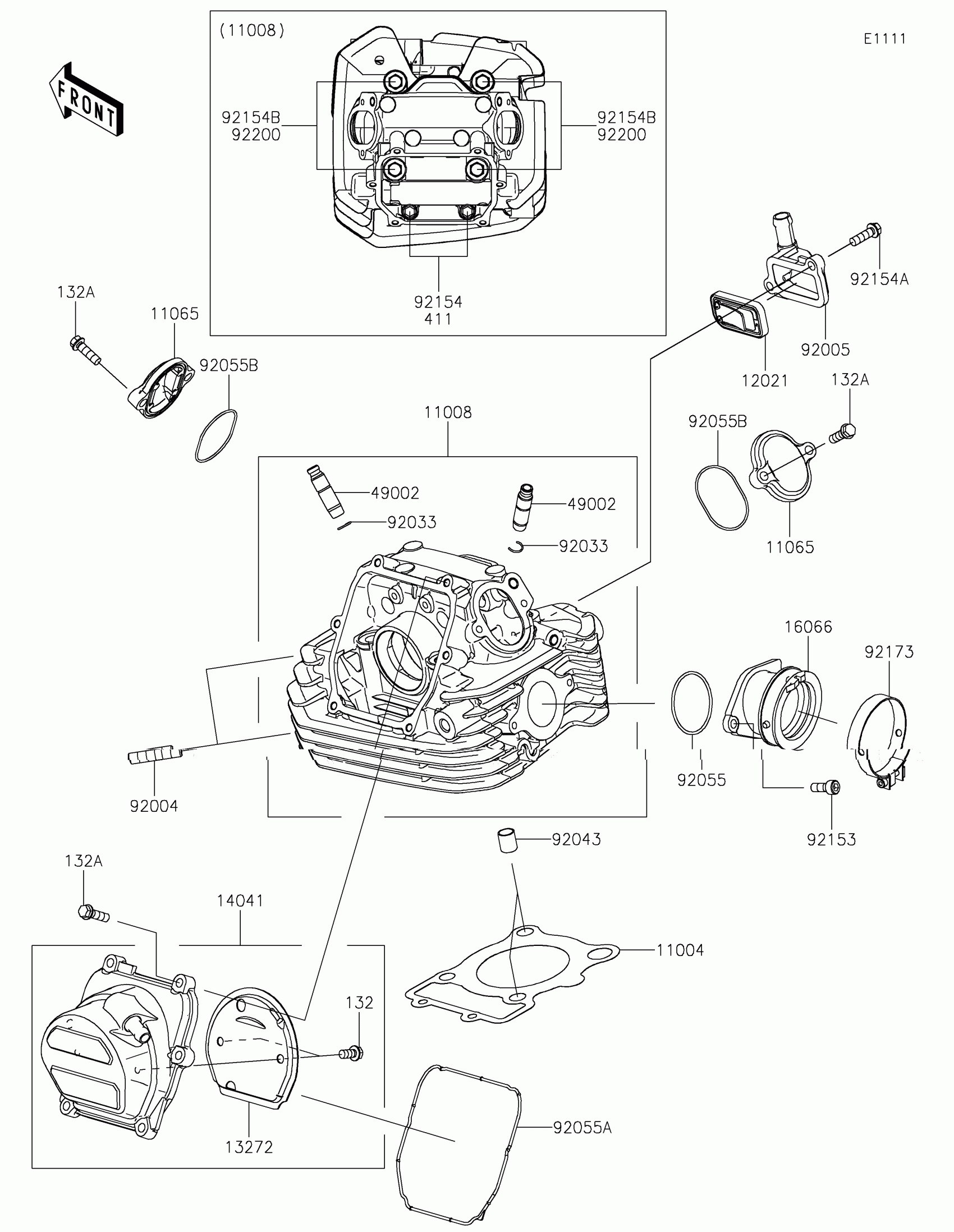

2022 Kawasaki KLX®230S ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0784

1

$20.39

In stock

11008

HEAD-COMP-CYLINDER

11008-0927

1

$545.24

In stock

11065

CAP,VALVE,ADJUSTING

11065-0800

1

$21.90

In stock

12021

VALVE-ASSY-REED

12021-0050

1

$49.12

In stock

13272

PLATE

13272-2616

1

$7.64

In stock

14041

1

$137.12

In stock

16066

1

$52.81

In stock

49002

GUIDE-VALVE

49002-0047

1

$19.47

In stock

92004

STUD,8X25

92004-0731

1
Out of stock

92005

FITTING

92005-0983

1

$24.46

In stock

92033

RING-SNAP

92033-1247

1

$3.11

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,42X1.9

92055-0186

1

$5.24

In stock

92055A

RING-O

92055-0897

1

$18.29

In stock

92055B

RING-O,ADJUST CAP

92055-1655

1

$6.90

In stock

92153

BOLT,SOCKET,6X16

92153-1344

1
Out of stock

92154

BOLT,FLANGED,6X130

92154-0993

1

$3.93

In stock

92154A

BOLT,FLANGED,6X20

92154-2757

1

$2.41

In stock

92154B

BOLT,FLANGED,10X190

92154-3910

1

$16.03

In stock

92173

CLAMP

92173-2191

1

$13.63

In stock

92200

WASHER,10.5X19X2.3

92200-0257

1
Out of stock

132

1

$1.73

In stock

132A

1

$3.28

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
