2022 Kawasaki KLX®230S ABS Crankshaft Diagram

← All diagrams

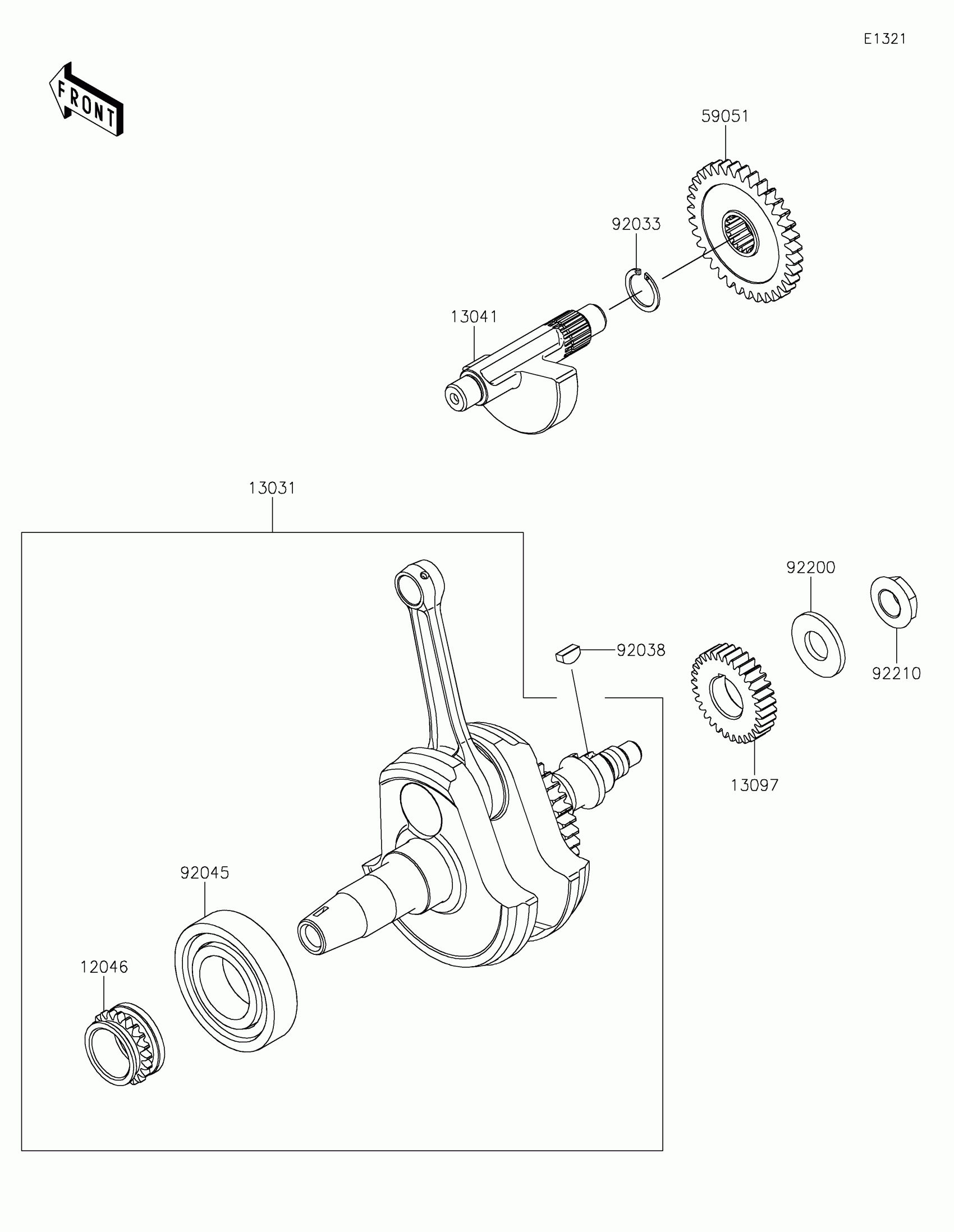

Find the part on the Crankshaft diagram for your 2022 Kawasaki KLX®230S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230S ABS Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,21T

12046-0613

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0908

1
Out of stock

13041

BALANCER

13041-0571

1
Out of stock

13097

GEAR-PRIMARY SPUR,31T

13097-0603

1
Out of stock

59051

GEAR-SPUR,BALANCER,DRIVEN,35T

59051-0856

1
Out of stock

92033

RING-SNAP,18MM

92033-029

1
Out of stock

92038

KEY

92038-1057

1
Out of stock

92045

BEARING-BALL,6207CS17

92045-0906

1
Out of stock

92200

WASHER,16.3X35X3.2

92200-0119

1
Out of stock

92210

NUT,16MM

92210-1538

1
Out of stock
