- KLX®230S ABS
Chassis Electrical Equipment

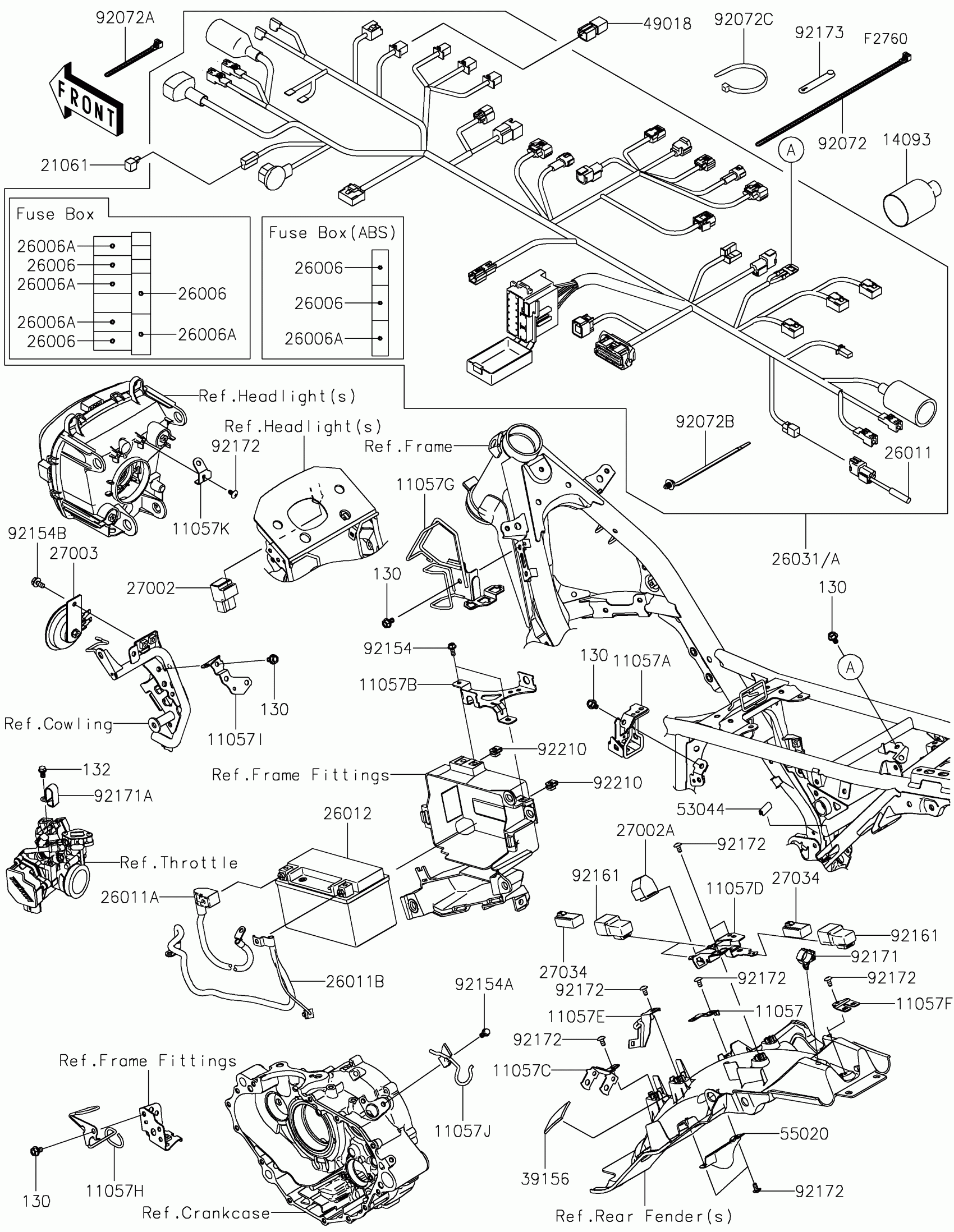

Kawasaki KLX®230S ABS Chassis Electrical Equipment Diagram
#
11057
BRACKET,DIAG
11057-2018
$1.37
11057A
BRACKET,VEHICLE DOWN SENSOR
11057-2021
$23.99
11057B
BRACKET,ECU
11057-2022
$7.51
11057C
BRACKET,MAGNETIC SWITCH
11057-2348
$4.60
11057D
BRACKET,RELAY
11057-2349
$22.32
11057E
BRACKET,FUSE BOX
11057-2350
$3.26
11057F
BRACKET,RR HARNESS
11057-2351
$2.10
11057G
BRACKET,FR HARNESS
11057-2352
$24.70
11057H
BRACKET
11057-2463
$10.21
11057I
BRACKET,ENGINE START SWITCH
11057-2520
$2.80
11057J
BRACKET,BRAKE HOSE&HARNESS
11057-2772
$8.74
11057K
BRACKET,HEAD LAMP ATTACHMENT
11057-4041
$2.32
14093
COVER,HARNESS
14093-0720
$4.55
21061
RECTIFIER
21061-1003
$29.60
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26011
WIRE-LEAD,DIAG
26011-0858
$31.99
26011A
WIRE-LEAD,BATTERY(+)
26011-1879
$110.16
26011B
WIRE-LEAD,BATTERY(-)
26011-1915
$98.85
26012
BATTERY,YTX7A-BS,12V 6.3AH
26012-0989
$180.41
27002
RELAY-ASSY
27002-0012
$42.21
27002A
RELAY-ASSY,TURN SIGNAL
27002-0031
$25.81
27003
HORN
27003-0155
$70.00
27034
RELAY
27034-0012
$36.91
39156
PAD,55X30X5
39156-2451
$1.98
49018
DIODE
49018-0005
$47.13
53044
TRIM,9X6.5X20
53044-0596
$4.10
55020
GUARD,OXYGEN SENSOR
55020-2254
$5.98
92072
BAND,L=250
92072-1237
$2.14
92072A
BAND,L=140
92072-1293
$7.11
92072B
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92072C
BAND,L=152
92072-3874
$4.18
92154
BOLT,FLANGED,5X12
92154-1215
Unavailable
92154A
BOLT,FLANGED,6X12
92154-1776
$0.63
92154B
BOLT,FLANGED,6X12
92154-2776
$2.70
92161
DAMPER
92161-2290
$6.03
92171
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171A
CLAMP
92171-0911
$7.68
92172
SCREW,CROS,5X10
92172-1255
$0.42
92173
CLAMP
92173-2199
$1.48
92210
NUT,PLATE,5MM
92210-0262
$1.34
130
BOLT-FLANGED,6X10
130BA0610
$1.20
132
BOLT-FLANGED-SMALL,6X10
132BA0610
$1.71
