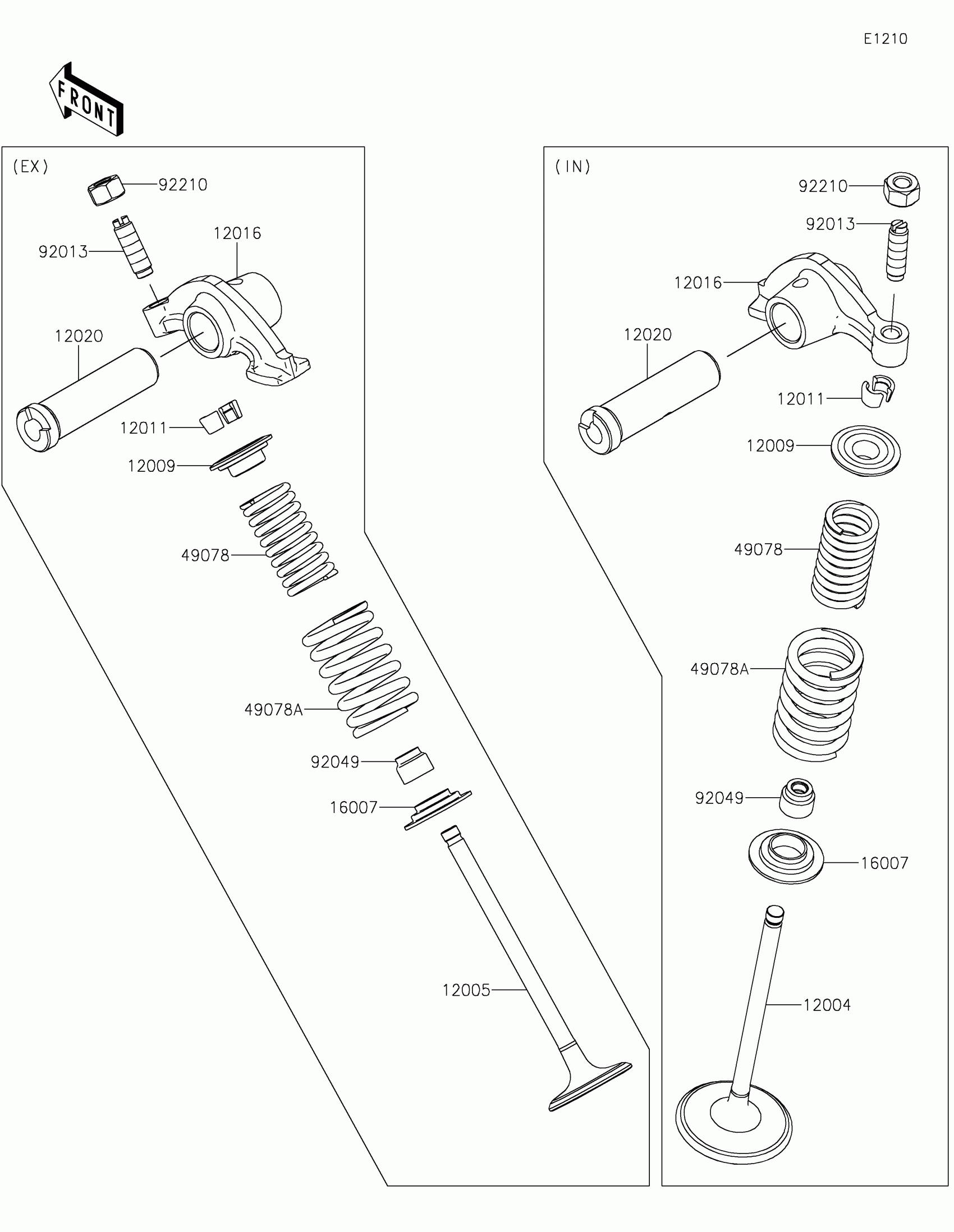

Kawasaki KLX®230R Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-0780

$60.00

12005

VALVE-EXHAUST

12005-0803

$60.95

12009

RETAINER-VALVE SPRING

12009-0721

$10.43

12011

COLLET

12011-1003

$4.65

12016

ARM-ROCKER

12016-0728

$55.26

12020

SHAFT-ROCKER

12020-0030

$15.38

16007

SEAT-SPRING

16007-0787

$24.08

49078

SPRING-ENGINE VALVE

49078-0756

$13.71

49078A

SPRING-ENGINE VALVE

49078-0757

$15.82

92013

SCREW,6MM

92013-009

$6.57

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$5.13

92210

NUT,6MM

92210-1490

$4.69
