Description

Price

11056

BRACKET,WITH NUT

11056-2396

$2.00

12053

GUIDE-CHAIN

12053-0267

$24.97

12053A

GUIDE-CHAIN,OUTER

12053-0268

$11.54

12053B

GUIDE-CHAIN,INNER

12053-0269

$11.54

13270

PLATE

13270-1899

$7.27

13272

PLATE,GUIDE-CHAIN

13272-2610

$15.04

33001

ARM-COMP-SWING

33001-0709

$546.33

33032

SHAFT-SWING ARM,15X243

33032-0060

$42.29

33040

ADJUSTER-CHAIN

33040-0032

$6.83

42036

SLEEVE,15X20X46

42036-0831

$15.43

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92049

SEAL-OIL

92049-0849

$9.28

92143

COLLAR

92143-1676

$6.22

92154

BOLT,FLANGED,6X50

92154-1193

$1.28

92154A

BOLT,8X46

92154-4367

$18.84

92172

SCREW,5X8

92172-1540

$2.03

92172A

SCREW,5X10

92172-1541

$1.91

92210

NUT,14MM

92210-1990

$9.53

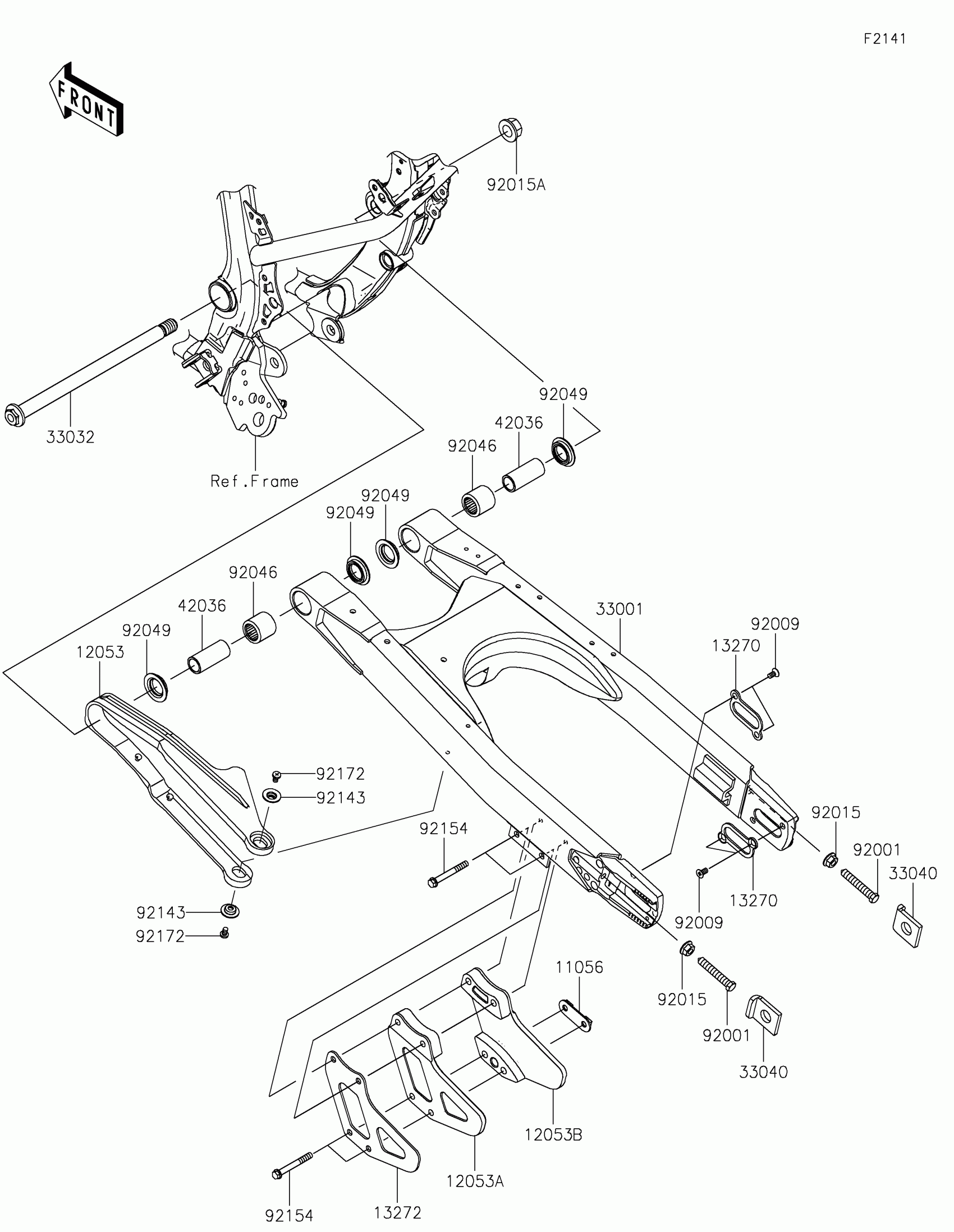

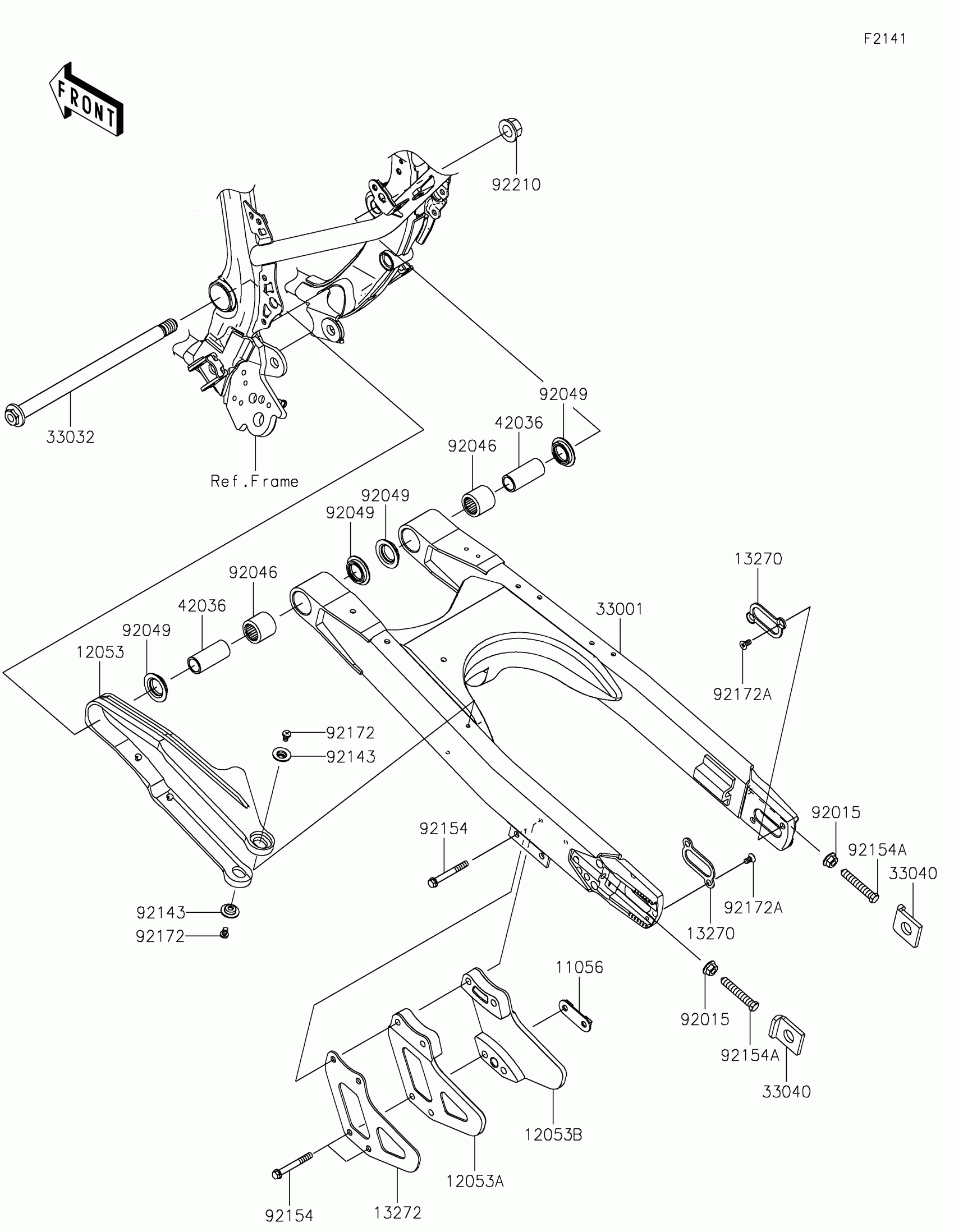

Kawasaki KLX®230R Swingarm Diagram
