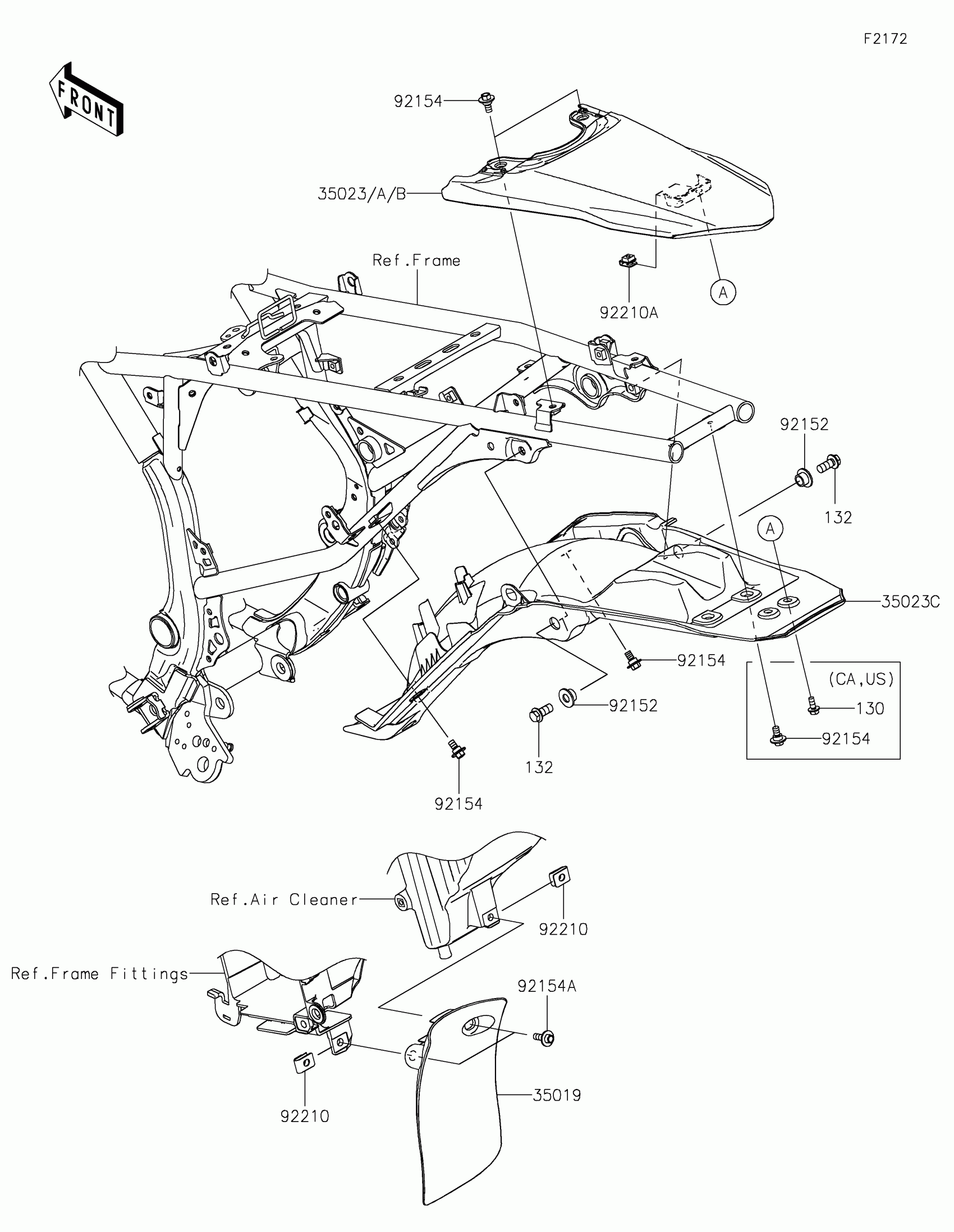

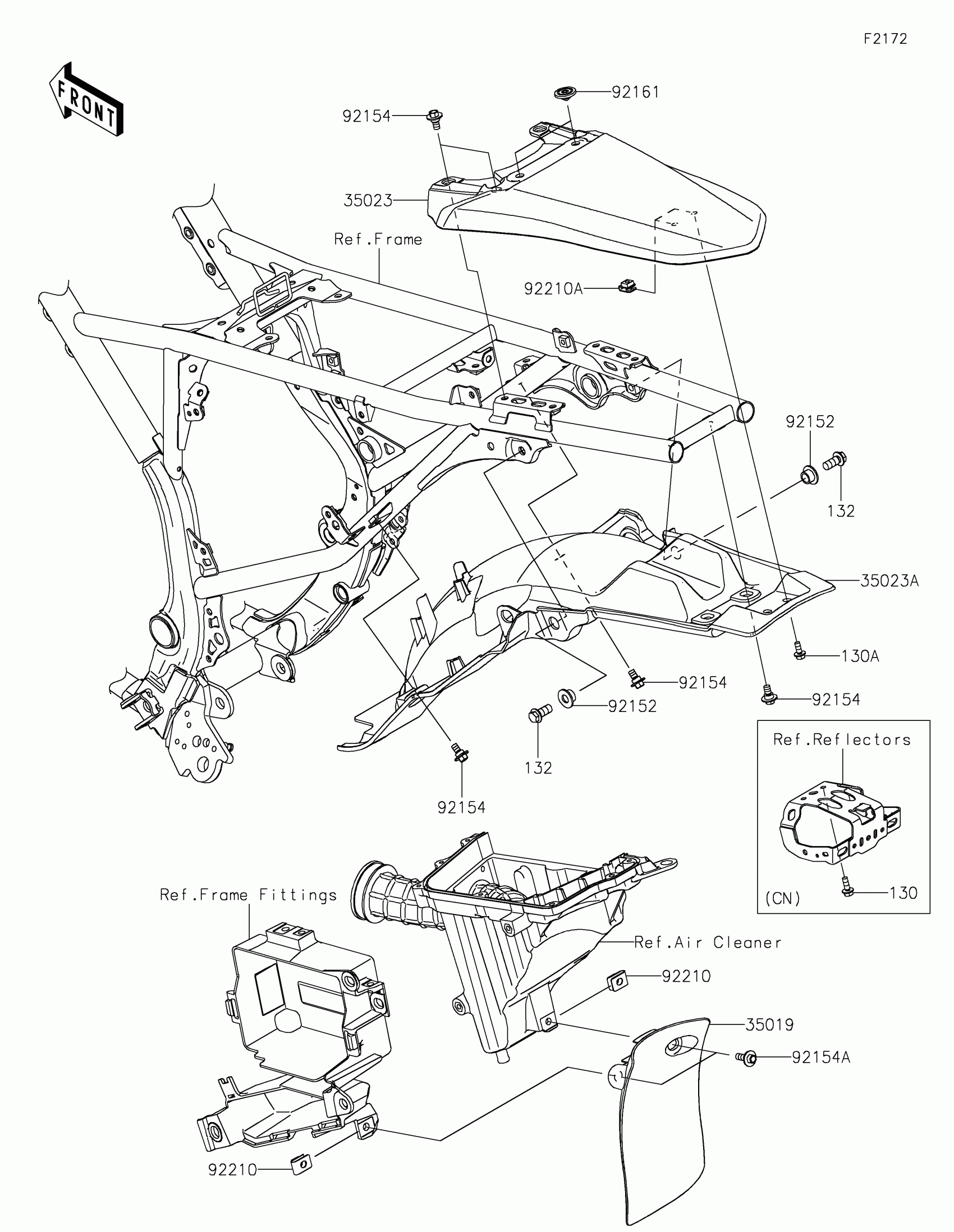

Kawasaki KLX®230R S Rear Fender(s) Diagram

Description

Price

35019

FLAP

35019-0664

$48.27

35023

FENDER-REAR,B.WHITE

35023-0502-266

$27.48

35023A

FENDER-REAR,L.GREEN

35023-0502-290

$27.48

35023B

FENDER-REAR,B.GRAY

35023-0502-67A

$27.48

35023C

FENDER-REAR

35023-0504

$52.81

92152

COLLAR

92152-2542

$2.80

92154

BOLT,FLANGED,6X13

92154-4411

$3.74

92154A

BOLT,FLANGED,6X14

92154-7286

$2.65

92210

NUT,6MM

92210-0218

$2.55

92210A

NUT,PLATE,5MM

92210-0262

$1.34

130

BOLT-FLANGED,5X12

130BB0512

$1.93

132

BOLT-FLANGED-SMALL,8X18

132BA0818

$1.11

92154

BOLT,FLANGED,6X13

92154-4411

$3.74
