Description

Price

11061

GASKET,EX PIPE

11061-0027

$7.60

11061A

GASKET,J/P-SILENCER

11061-0174

$7.82

11061B

GASKET,EXHAUST PIPE CONNECTING

11061-1055

$16.50

11061C

GASKET,EXHAUST PIPE CONNECTING

11061-1407

$16.51

18077

ARRESTER-SPARK

18077-0046

$220.66

18088

PIPE-EXHAUST

18088-1453

$176.27

18091

BODY-COMP-MUFFLER

18091-1164

$558.20

18091A

BODY-COMP-MUFFLER

18091-1220

$538.44

49107

COVER-EXHAUST PIPE

49107-0813

$54.07

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,8MM

92015-1432

$6.57

92026

SPACER,8.7X15.2X3

92026-0868

$2.10

92092

BUSHING-RUBBER

92092-0018

$11.54

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92152

COLLAR,6.3X8.3X6.2

92152-2586

$7.51

92154

BOLT,FLANGED,8X36

92154-1301

$3.86

92154A

BOLT,6X14

92154-3955

$2.58

92154B

BOLT,SOCKET,6X10

92154-4336

$2.47

92173

CLAMP

92173-2189

$7.78

92200

WASHER,6.5X16X1

92200-1974

$3.73

92200A

WASHER,8.5X22X1.5

92200-1975

$3.60

92210

NUT,LOCK,FLANGED,8MM

92210-0140

$2.58

130

BOLT-FLANGED,8X40

130CA0840

$1.47

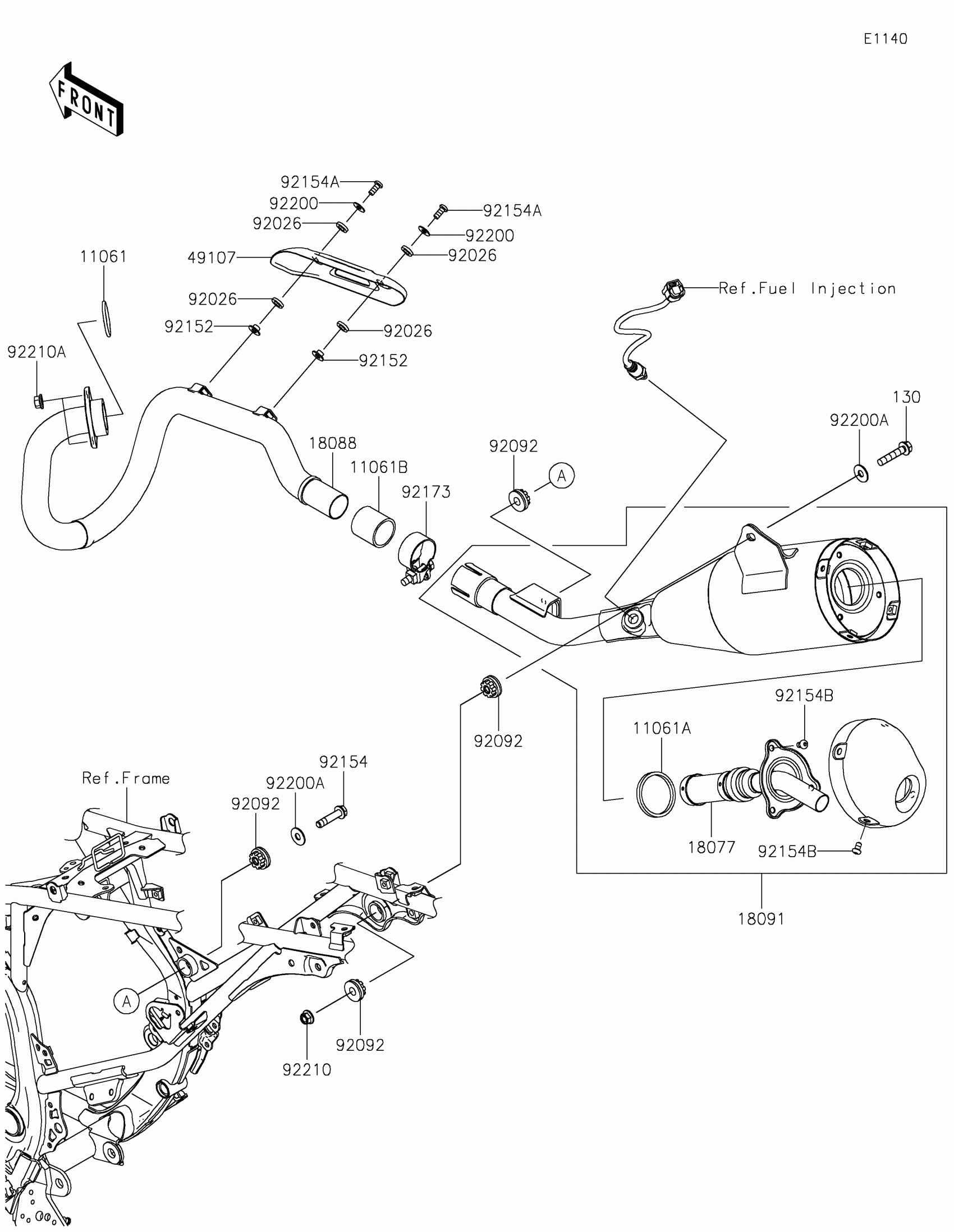

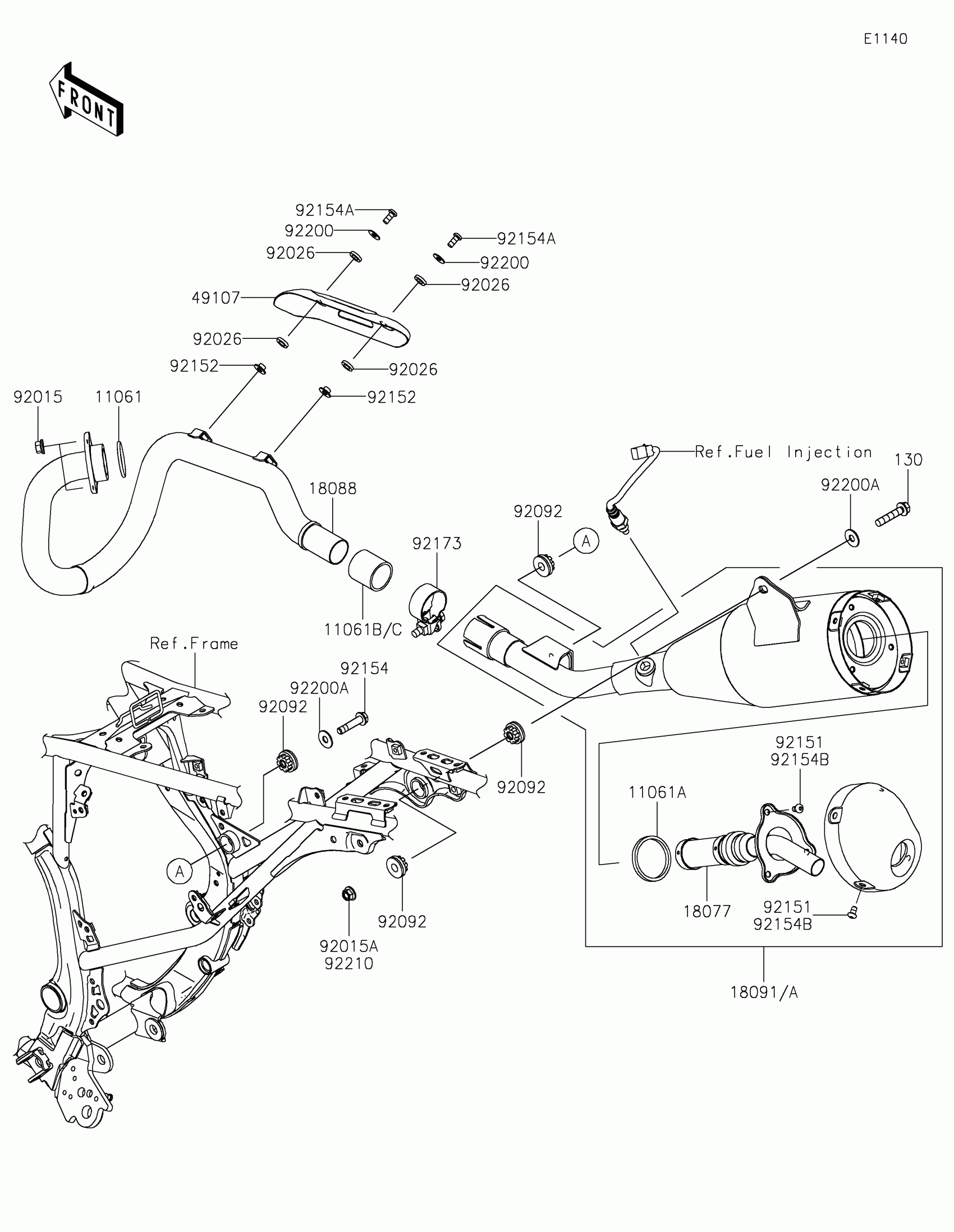

Kawasaki KLX®230R S Muffler(s) Diagram

GASKET,EX PIPE

GASKET,J/P-SILENCER

GASKET,EXHAUST PIPE CONNECTING

GASKET,EXHAUST PIPE CONNECTING

ARRESTER-SPARK

PIPE-EXHAUST

BODY-COMP-MUFFLER

BODY-COMP-MUFFLER

COVER-EXHAUST PIPE

NUT,8MM

NUT,8MM

SPACER,8.7X15.2X3

BUSHING-RUBBER

BOLT,SOCKET,6X10

COLLAR,6.3X8.3X6.2

BOLT,FLANGED,8X36

BOLT,6X14

BOLT,SOCKET,6X10

CLAMP

WASHER,6.5X16X1

WASHER,8.5X22X1.5

NUT,LOCK,FLANGED,8MM

BOLT-FLANGED,8X40
