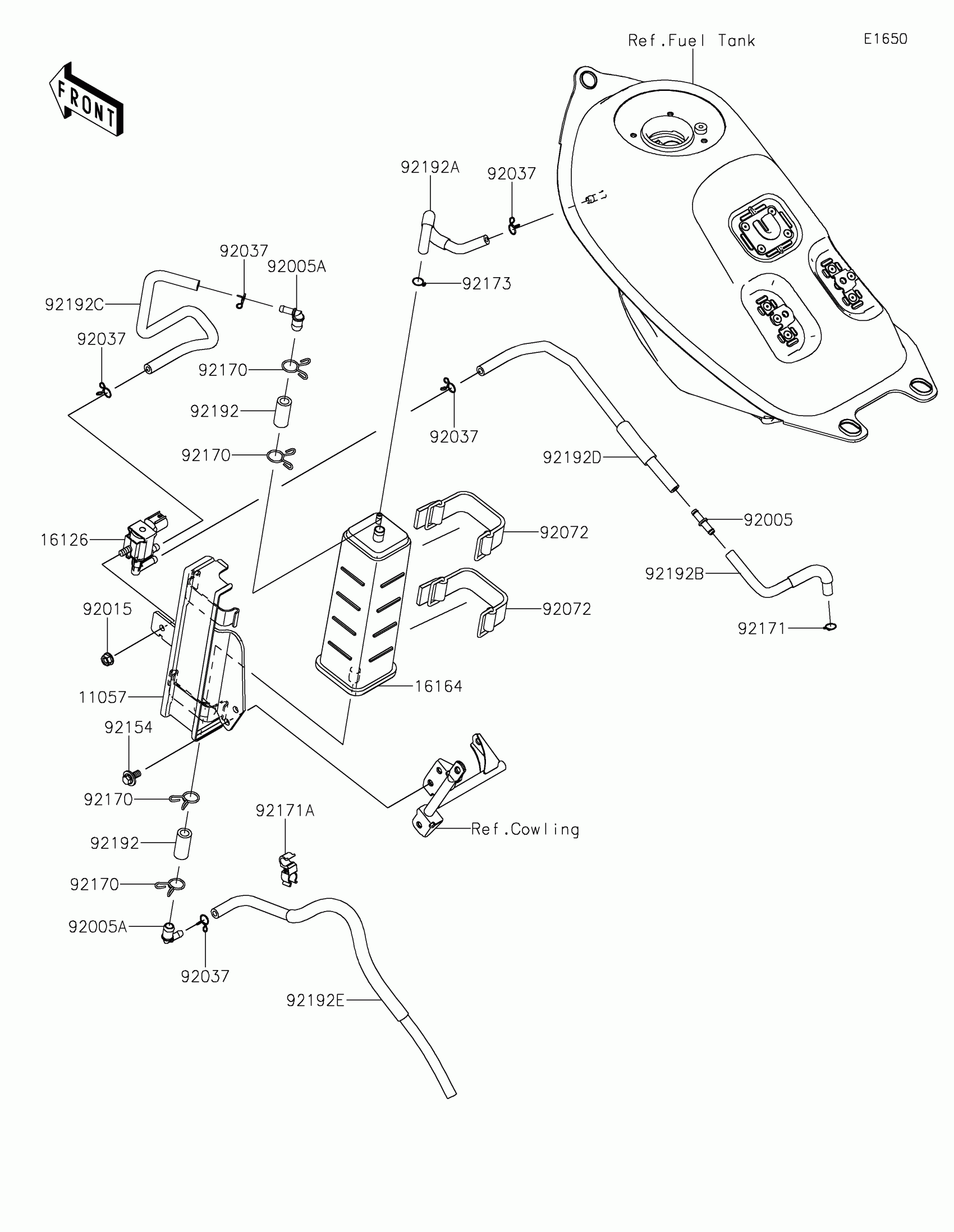

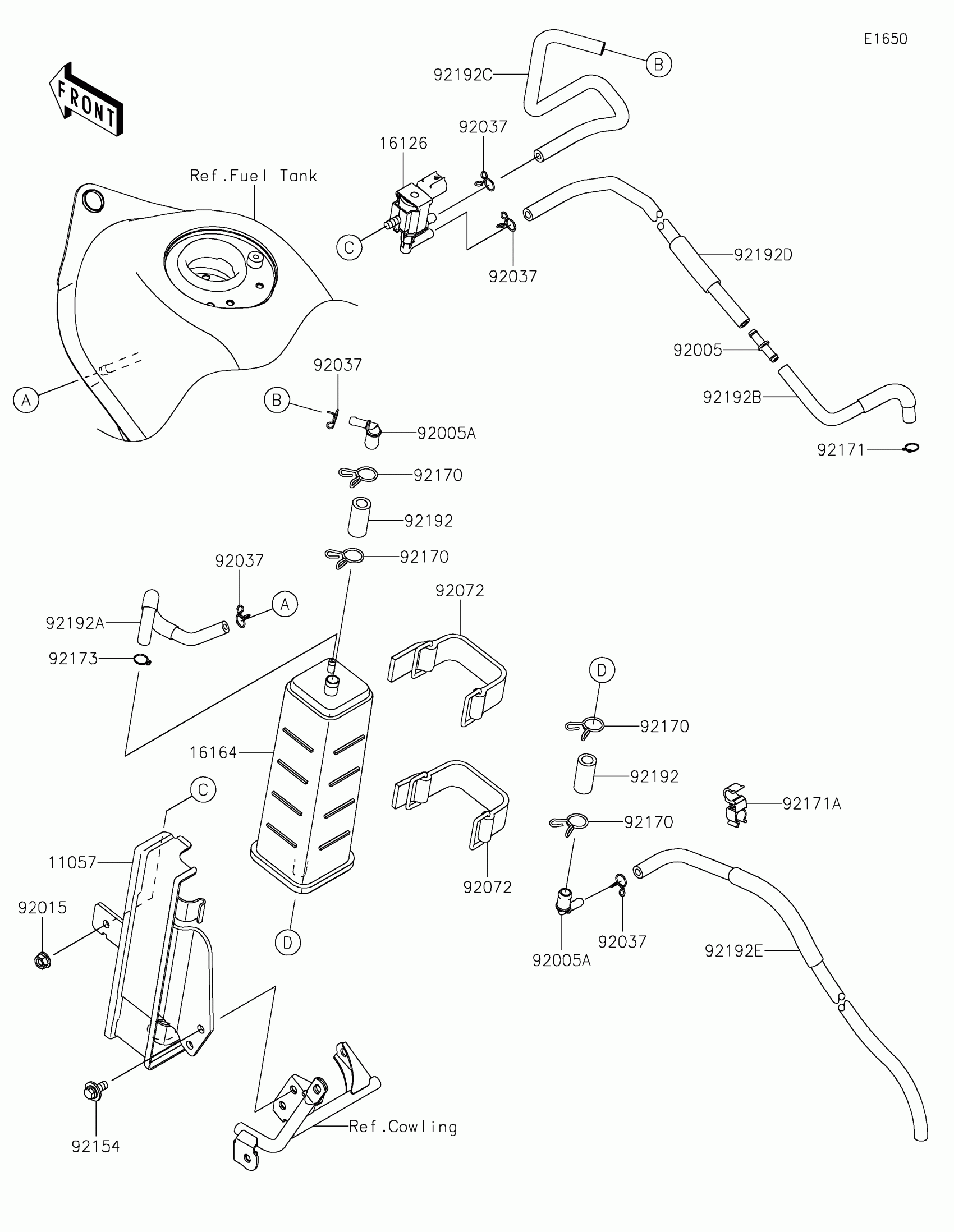

Kawasaki KLX®230R S Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2130

$51.36

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0009

$137.47

92005

FITTING

92005-0721

$9.09

92005A

FITTING

92005-0753

$5.01

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-1712

$5.00

92072

BAND,L=90

92072-0903

$18.07

92154

BOLT,FLANGED,WP,6X14

92154-1289

$0.95

92170

CLAMP

92170-1695

$2.78

92171

CLAMP

92171-0573

$1.34

92171A

CLAMP

92171-1709

$4.72

92173

CLAMP

92173-1190

$2.55

92192

TUBE,9X14.4X30

92192-1757

$16.30

92192A

TUBE,TANK-CANISTER

92192-1938

$37.17

92192B

TUBE,PCV-THB

92192-1939

$39.34

92192C

TUBE,FITTING-PCV

92192-1940

$38.62

92192D

TUBE,FITTING-PCV

92192-1987

$40.55

92192E

TUBE,DRAIN

92192-2309

$28.67
