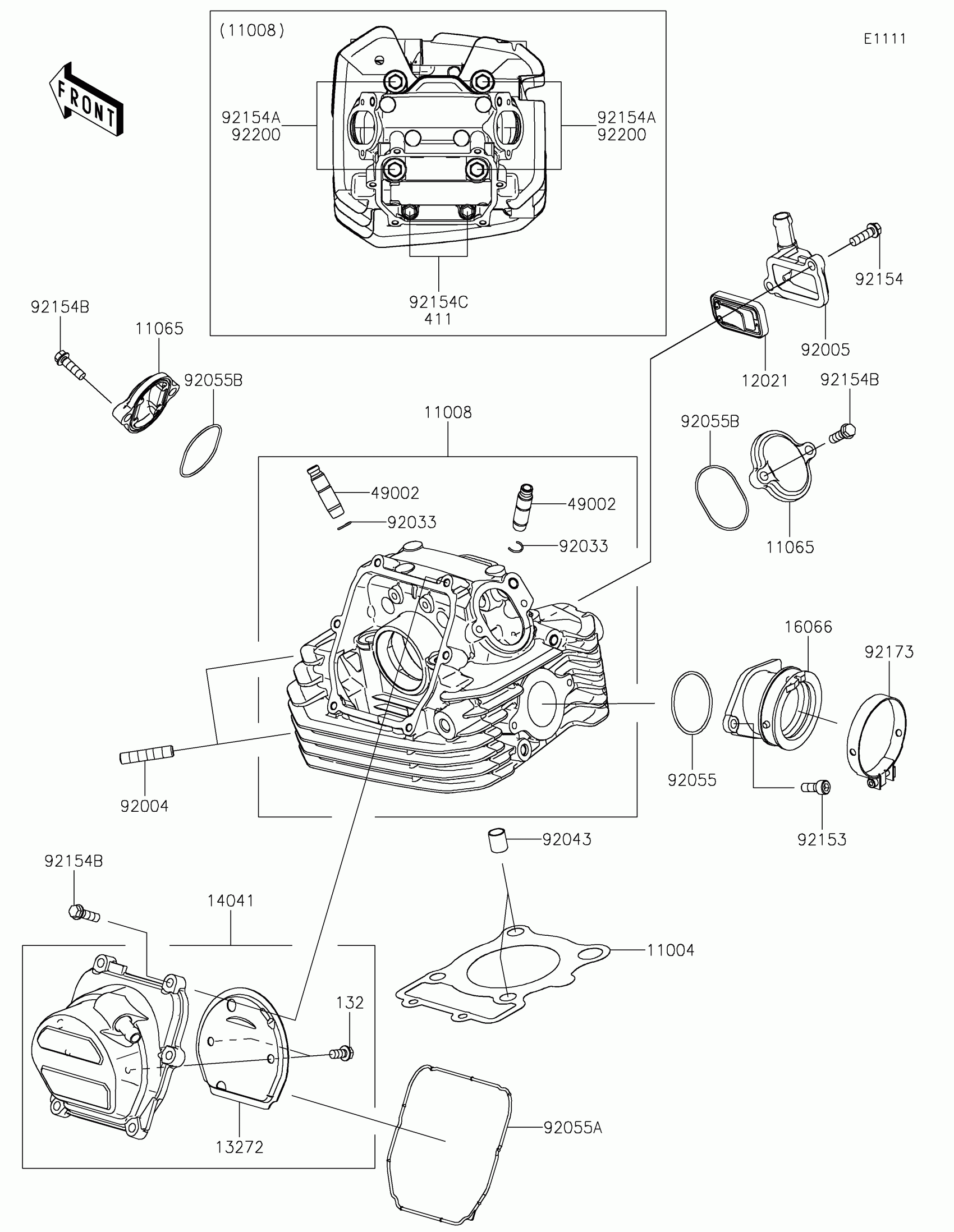

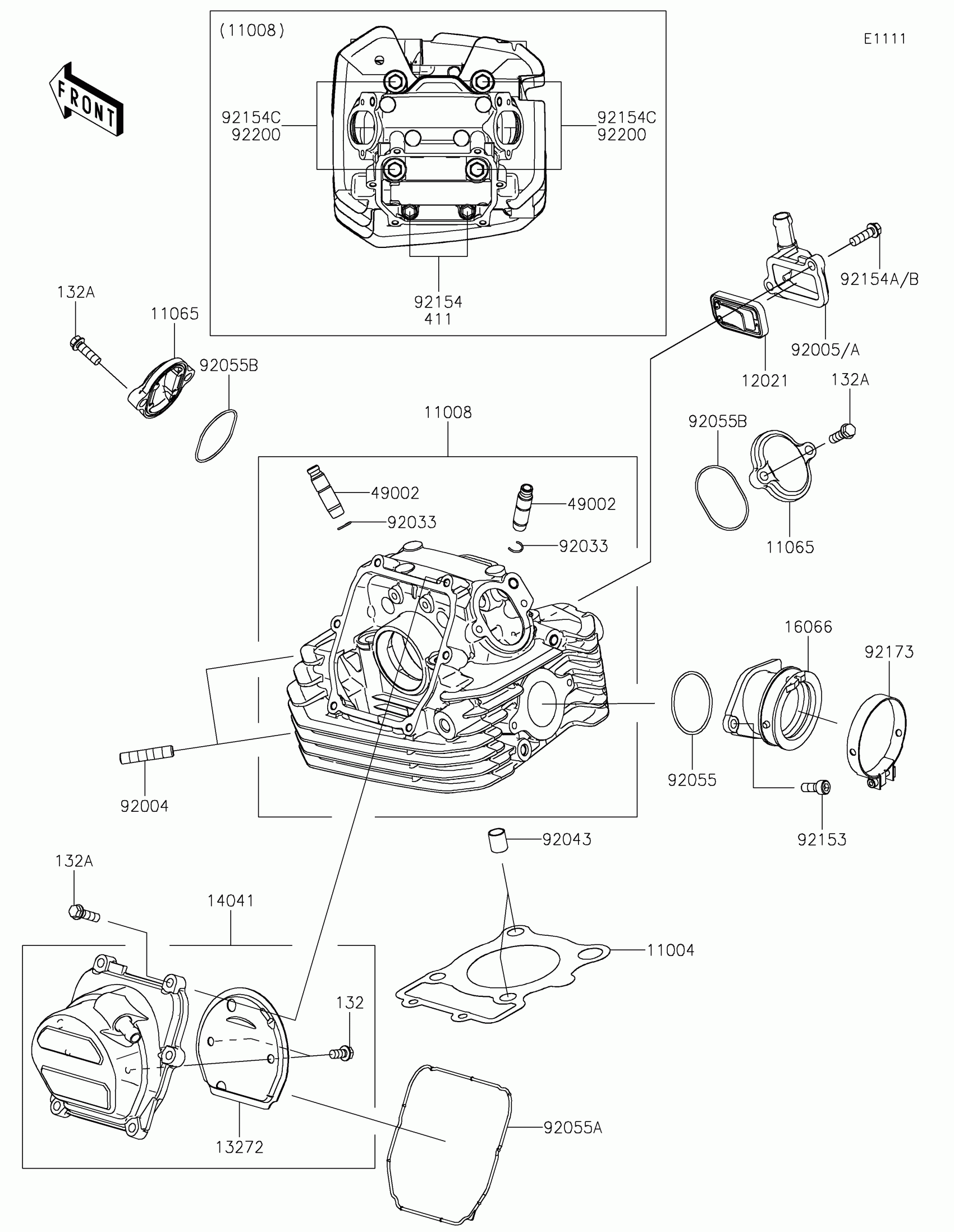

Kawasaki KLX®230R S Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-0784

$21.77

11008

HEAD-COMP-CYLINDER

11008-0927

$533.19

11065

CAP,VALVE,ADJUSTING

11065-0800

$23.43

12021

VALVE-ASSY-REED

12021-0050

$48.19

13272

PLATE

13272-2616

$7.78

14041

COVER-COMP,CAM CHAIN

14041-0619

$134.31

16066

HOLDER-THROTTLE BODY

16066-0021

$51.80

49002

GUIDE-VALVE

49002-0047

$20.75

92004

STUD,8X25

92004-0731

$4.14

92005

FITTING

92005-0911

$26.05

92005A

FITTING

92005-0983

$26.05

92033

RING-SNAP

92033-1247

$3.91

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,42X1.9

92055-0186

$6.61

92055A

RING-O

92055-0897

$19.58

92055B

RING-O,ADJUST CAP

92055-1655

$8.68

92153

BOLT,SOCKET,6X16

92153-1344

$2.97

92154

BOLT,FLANGED,6X130

92154-0993

$4.41

92154A

BOLT,FLANGED,6X20

92154-2757

$2.95

92154B

BOLT,FLANGED,6X20

92154-3802

$1.78

92154C

BOLT,FLANGED,10X190

92154-3910

$17.10

92173

CLAMP

92173-2191

$14.34

92200

WASHER,10.5X19X2.3

92200-0257

$1.78

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

411

WASHER-PLAIN,6MM

411AA0600

$2.92
