2026 Kawasaki KLX®230R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2026 Kawasaki KLX®230R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

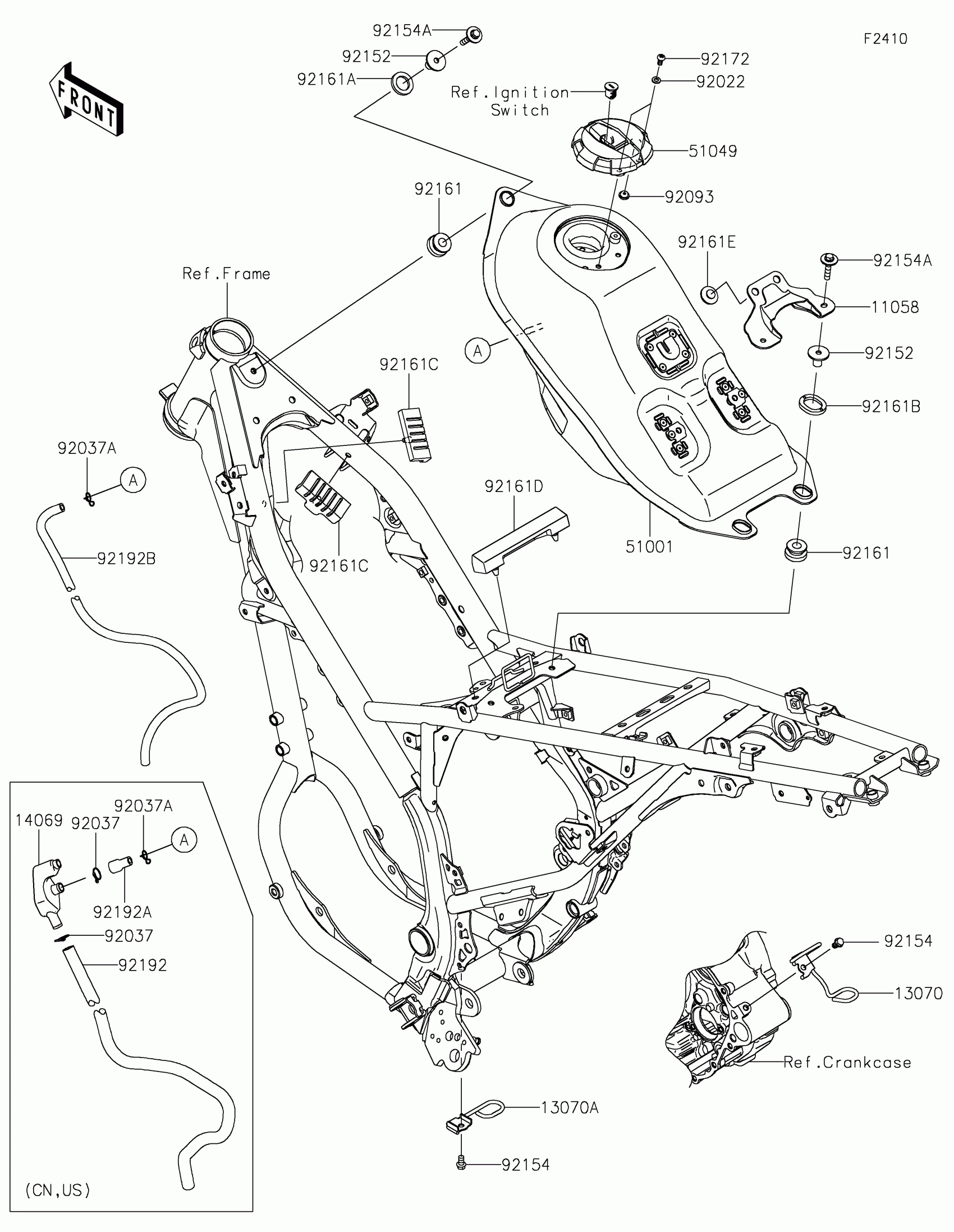

2026 Kawasaki KLX®230R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,FUEL TANK

11058-1312

1
Out of stock

13070

GUIDE

13070-0909

1
Out of stock

13070A

GUIDE

13070-0912

1
Out of stock

14069

BREATHER,FUEL TANK

14069-0033

1
Out of stock

51001

TANK-COMP-FUEL,F.S.BLACK

51001-0937-25Q

1
Out of stock

51049

CAP-TANK,FUEL

51049-0766

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92093

SEAL,RO 2X12X4.8

92093-0722

1
Out of stock

92152

COLLAR,6.8X10X16

92152-2666

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0459

1
Out of stock

92154A

BOLT,FLANGED,6X30

92154-7273

1
Out of stock

92161

DAMPER,FUEL TANK,FR

92161-1392

1
Out of stock

92161A

DAMPER

92161-2216

1
Out of stock

92161B

DAMPER

92161-2217

1
Out of stock

92161C

DAMPER

92161-2286

1
Out of stock

92161D

DAMPER,FUEL TANK

92161-2537

1
Out of stock

92161E

DAMPER

92161-2547

1
Out of stock

92172

SCREW,5X10

92172-0496

1
Out of stock

92192

TUBE,10X14X870

92192-1964

1
Out of stock

92192A

TUBE

92192-2721

1
Out of stock

92192B

TUBE,DRAIN

92192-2722

1
Out of stock
